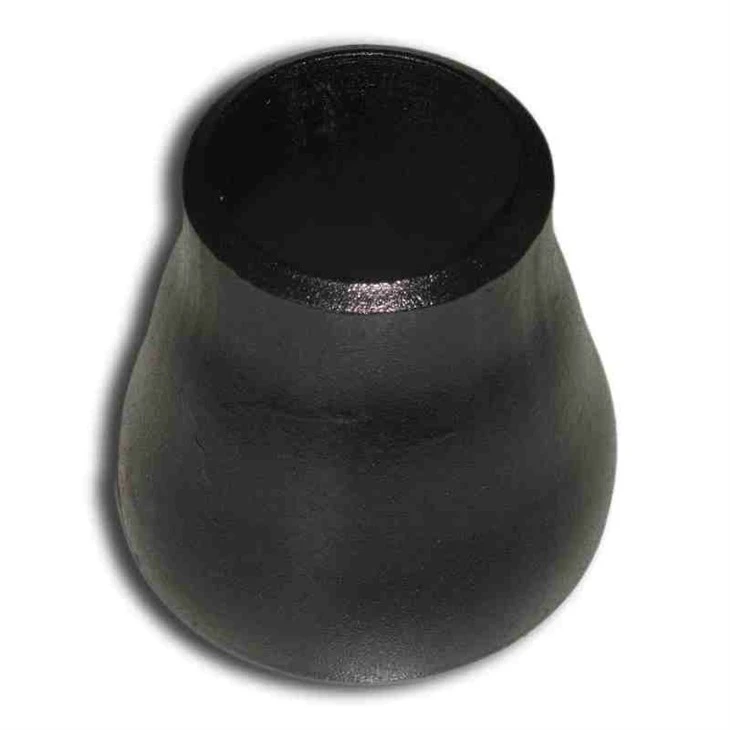

ASTM A860 WPHY 60 Concentric Reducer
Hom: Luj tshib, Tee, Reducer, Hla, Cap, Stub kawg
Loj: 1/2 "-60"
Thickness: Sch5s-Schxxs
Txuj: ASME, MSS, ISO, DIN, JIS
Zhengzhou Huitong Pipeline Equipment Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov muag khoom ntawm ASTM A860 WPHY 60 Concentric Reducer hauv Suav teb. Peb zoo siab tos txais koj los yuav peb ASTM A860 WPHY 60 Concentric Reducer. Peb lub Hoobkas kuj lees txais cov kev txiav txim customized. Thov pub dawb kom txaus siab rau peb cov nqi sib tw thiab kev pabcuam zoo heev.
ASTM A860 WPHY60 Concentric Reducer Nqe 2026|ASME B16.9 Qhov Loj & Chaw Muag Khoom
ASTM A860 WPHY60 concentric reducer tus nqi feem ntau yog li ntawm $ 1.5 txog $ 6.8 ib kg hauv xyoo 2026, nyob ntawm phab ntsa thickness thiab xaj ntim. Tsim los rau siab - cov kav xa hluav taws xob siab, qhov siab no - tawm los qis- alloy steel haum muab tshwj xeeb cov qauv kev ncaj ncees thiab weldability rau cov roj, roj, thiab petrochemical kev thauj mus los.
Cov ntsiab lus tseem ceeb:
- ASTM A 860 WPHY60yog tsim los rau siab -lub zog wrought steel taub qab- vuam fittings.
- Yam tsawg kawg yield zog:60 ksi / 415 MPa.
- Yam tsawg kawg nkaus tensile zog:75 ksi / 515 MPa.
- Concentric reducers feem ntau yog tsim los rauASME B16.9qhov yuav tsum tau muaj.
- Cov txheej txheem ntau lawm suav nrogkub sib sau, forging, nias, machining, thiab vuam los ntawm cov khoom tsim nyog, nyob ntawm qhov loj me thiab kev tsim khoom.
- Haum rau cov kav dej uas xav tau kev sib raug zoo nrog siab - zog kab yeeb nkab qib xws liAPI 5L X60, raug rau engineering thiab vuam kev tsim nyog.
ASTM A 860 WPHY60 Concentric Reducer Nqe / Tus Nqi 2026
| Qhov Loj (Inches) | Thickness / Teem caij | Nqe Range (USD per Piece) | Tus nqi kwv yees (USD ib KG) |
| 4" x 3" – 8" x 6" | SWB 40 – 80 Stb | $45 – $180 | $2.80 - $6.80 / kg |
| 10" x 8" – 16" x 12" | STD - XS | $220 – $750 | $2.60 - $5.90 / kg |
| 18" x 16" – 24" x 20" | XS – XXS / Custom | $900 – $2,800 | $2.50 - $5.20 / kg |
| Bulk Orders (>1 Tuj) | Standard / Heavy Phab ntsa | Negotiable (Volume Discount) | $2.40 - $4.80 / kg |
Tseem ceeb: Cov nuj nqis no yog qhov qhia txog B2B siv ntau yam, tsis yog tus nqi lag luam ruaj khov. Freight, kom muaj nuj nqis, raw khoom tus nqi, kuaj, txheej thiab cov ntaub ntawv yuav materially hloov qhov kawg hais.
ASTM A 860 WPHY60 Concentric Reducer:
ASTM A860 WPHY60 yog hais txog lub zog siab qis alloy steel qib uas feem ntau siv rau kev siv cov kav dej siab.ASTM A 860 WPHY60 Concentric ReducerNws muaj qhov tsawg kawg nkaus tawm lub zog ntawm 60,000 psi thiab nyiam rau nws cov weldability zoo, nrog rau kev cuam tshuam zoo thiab tawv. Nws cov tshuaj muaj pes tsawg leeg yog ua tib zoo tswj kom pom kev ua haujlwm zoo hauv kev kub siab thiab kub kub.
Alloy Steel Concentric Reduceryog ib hom reducer uas muaj ib tug tapered puab txoj kab uas hla ntawm ob kawg. Nws yog hu ua "concentric" vim hais tias cov kab nruab nrab ntawm ob qhov kawg yog ua raws. Qhov kev tsim no tso cai rau kev hloov pauv hloov tau yooj yim thaum tuav tib qhov chaw nruab nrab.
ASTM A860 WPHY60 Butt Welded Concentric Reduceryog haum rau siv nyob rau hauv hnyav ib puag ncig, nrog rau corrosive thiab kub daim ntaub ntawv. Nws yog tsim los ua kom tau raws li qhov xav tau ntawm kev lag luam roj thiab roj.
ASTM A 860 WPHY 60 Concentric Reducer yog dab tsi?
IbASTM A 860 WPHY60 concentric reduceryog lub siab - tawm los- lub zog pob tw-weld yeeb nkab haum siv los txuas ob txoj kab sib txawv ntawm cov yeeb nkab sib txawv thaum tuav ib qho chaw nruab nrab. Nrog tsawg kawg nkaus tawm lub zog ntawm60 ksi (415 MPa), WPHY60 reducers tau qhia dav dav rau siab - cov roj thiab roj xa mus rau cov kav dej, cov chaw nres tsheb compressor, cov chaw sab nrauv, thiab cov txheej txheem kav dej uas ASTM A234 WPB yuav tsis muaj zog txaus.
ASTM A860 WPHY GR 60 Yeeb Nkab Fittings Chemical Composition
| C, max | Mn | P, max | S, max | Si | Cr, max | Nim, max | Mo, max | Cu, max | Ti, max | V, max | Nb, max | V + Nb, max | Al, max |
| 0.20A | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40B | 0.30C | 0.50C | 0.25C | 0.35C | 0.05 | 0.1 | 0.04 | 0.12 | 0.06 |
ASTM A860 WPHY GR 60 Yeeb Nkab Fittings Mechanical Properties
|
Element |
Tensile zog |
Yield zog (0.2% Offset) |
Elongation |
|
WPHY 60 |
515-690 |
415 |
28 % |
wphy 60 fittings Reducer specification
| NPS | 1/2 "rau 48" thiab loj dua los ntawm kev tsim khoom |
| Hom Reducer | Concentric / Eccentric |
| Kev sib txuas | Butt weld |
| Kev npaj kawg | ASME B16.25 lossis qhov project specification |
| Phab ntsa Thickness | STD, SCH 40, SCH 80, SCH 120, SCH 160, XXS, kev cai |
| Kev tsim khoom | Seamless lossis welded tsim nyob ntawm qhov loj / tsim |
ASME B16.9 Concentric Reducer Dimensions
| Reducer Loj kawg | Hom kawg-rau-End Length H |
| NPE 1/2 | 38mm ib |
| NPE 1 | 51mm ib |
| NPE 2 | 76mm ua |
| NPE 4 | 102 hli |
| NPE 6 | 140 hli |
| NPE 8 | 152 hli |
| NPE 10 | 1 78mm |
| NPE 12 | 203mm ua |
| NPE 14 | 330 hli |
| NPE 16 | 3 56mm |
| NPE 18 | 3 81mm |
| NPE 20 | 5 08mm |
| NPE 24 | 5 08mm |
wphy 60 cov ntaub ntawv siv
Roj & Roj Kis:Ntev -qhov deb siab- cov kav dej loj loj thauj cov roj av thiab cov nkev.
Seawater & Offshore Systems:Siab -siab subsea water injection manifolds thiab offshore platform piping frameworks.
Chemical Processing Plants:Siab -pressure reactor pub kab, compressor chaw nres tsheb piping, thiab cov kev pabcuam hnyav ua haujlwm.
High Temperature Power Generation:Lub taub hau lub taub hau tseem ceeb, boiler pub dej kav dej, thiab siab - zog pab kab.
ASTM A 860 WPHY60 vs ASTM A234 WPB vs WPHY70
| Kev ua tau zoo / Spec | ASTM A 860 WPHY60 | ASTM A234 WPB 1 | ASTM A 860 WPHY70 |
| Yam tsawg kawg nkaus Yield Strength | 415 MPa (60,000 psi) | 240 MPa (35,000 psi) | 485 MPa (70,000 psi) |
| Yam tsawg kawg Tensile Strength | 515-690 MPa | 415-585 MPa | 565-760 MPa |
| Daim ntawv thov tseem ceeb | Siab - cov roj thiab cov kav dej siab | Tsawg-rau- nruab nrab siab dav dav kav | Ultra- cov kab hluav taws xob siab |
| Weldability | Zoo heev (Low Carbon sib npaug) | Zoo heev | Zoo (yuav tsum tau preheat tswj) |
| Tus nqi txheeb ze (ib KG) | Nruab Nrab ($ 2.50 - $ 6.80) | Nqe: $1.80 - $3.50 | Siab dua ($ 3.00 - $ 7.50) |
Vuam & Txias Cracking Tiv Thaiv:
Because WPHY60 is a high-yield low-alloy steel, hydrogen-induced cracking (HIC) and underbead cracking can occur if welding parameters are uncontrolled. Low-hydrogen electrodes (such as E7018-1 or E8018-G) must be utilized, and preheating (typically 100°C–150°C) is mandatory for heavier wall thicknesses (>19mm) kom qeeb cov cua txias thiab tshem tawm nkig martensite tsim.
FAQ:
Q: ASTM A860 WPHY60 concentric reducer nqi yog dab tsi?
A:Qhov taw qhia tus nqi xa tawm hauv 2026 tuaj yeem nyob ntawm kwv yees li$1.8–$5.0/kg, nyob ntawm qhov loj me, phab ntsa thickness, kev kho cua sov, kuaj thiab txiav txim kom muaj nuj nqis.
Q: Qhov txawv ntawm WPHY60 thiab WPHY52 yog dab tsi?
A:WPHY60 muaj qhov tsawg dua qhov kev tawm los ntawm lub zog60 ksi (415 MPa)piv nrog52 ksi (360 MPa)rau WPHY52. WPHY60 feem ntau yog xaiv rau siab dua - cov ntawv thov kav dej.
Q: Tus qauv twg yog siv rau WPHY60 concentric reducer qhov ntev?
A:Cov qauv loj yog feem ntau tsim raws liASME B16.9, hos cov kav dej loj dua tuaj yeem ua rawsMSS SP-75kev xav tau.
Q: Dab tsi yog qhov txawv ntawm concentric thiab eccentric reducer?
A: Concentric reducer ua kom ob lub yeeb nkab centerlines ua kom zoo. Ib qho eccentric reducer muaj ib sab offset thiab feem ntau xaiv thaum tsis txhob muaj cov kua tsub zuj zuj lossis cov hnab ntim roj yog qhov tseem ceeb.
Q: Qhov txawv ntawm ASTM A860 WPHY60 thiab ASTM A234 WPB yog dab tsi?
A: Thaum ob qho tib si yog carbon steel fittings, ASTM A234 WPB yog cov qauv carbon steel nrog qhov tsawg kawg nkaus lub zog ntawm ib ncig ntawm 35 ksi (240 MPa) siv rau cov kav dej dav dav. ASTM A860 WPHY60 yog lub siab -Lub zog qis-Alloy (HSLA) steel uas muaj qhov muaj zog tsawg kawg nkaus ntawm 60 ksi (415 MPa). WPHY60 tau tsim tshwj xeeb rau kev siab - cov roj thiab cov roj xa mus rau cov kav dej kom haum rau API 5L X60 kab kav.
Q: Vim li cas ASTM A 860 tsis ncaj qha rau hauv ASME B31.8 cov ntaub ntawv ntxiv?
A: ASTM A860 yog cov khoom siv tshwj xeeb es tsis yog tus qauv tsim tiav. Rau ASME B31.8 gas kis tau tus mob, tus qauv tsim qauv siv MSS SP-75, uas suav nrog ASTM A860 qib (WPHY 52, 60, 65, 70) raws li kev lees paub tshuaj thiab siv tshuab.
Q: "Yuav ua li cas xam Carbon Equivalent (CE) rau ASTM A860 WPHY60 reducer kom ntseeg tau tias weldability?"
A: Cov pa roj carbon sib npaug yuav tsum tau tswj hwm nruj kom tiv thaiv hydrogen -induced cracking (HIC). Raws li qhov tshwj xeeb, CE qauv (CE=C+Mn/6+}(Cr+Mo+V)/5+(Ni+Cu)/15) yuav tsum tsis pub tshaj 0.42%. Ib txwm tshawb xyuas tias Mill Test Report (MTR) lees paub qhov pib no nrog rau qhov kev txwv siab tshaj plaws ntawm 22 HRC (235 HBW).
Hais txog Zhengzhou Huitong Pipeline Equipment Co., LTD.
HT PIPE yog ib tug zoo-paub stockist thiab exporter. Peb yog cov khoom siv stainless / carbon / npib tsib xee alloy khoom xa khoom nrog 15+ kev xa tawm. Peb tsis tsuas yog muab cov kav dej, phaj, puag ncig, tab sis kuj yog cov yeeb nkab fittings, flanges, thiab lwm yam. Tiv tauj peb kom paub ntau ntxiv thiab cov nqi dawb.
✅ ISO 9001: 2015
✅ MTC 10204 3.1 3.2
✅ 100% PMI (Positive Material Identification)
✅ Ultrasonic Testing (Rau ASME VIII)
✅ Third-Kev Tshawb Fawb Kev Tshawb Fawb (SGS/BV/DNV/LR)
✅ NACE MR0175 / ISO 15156
Author: Chloe Pu
5+ Xyoo ntawm Kev Tshaj Lij Tshaj Lij Tshaj Tawm hauv Stainless Hlau, Nickel Alloy & Carbon Steel Hlau Kev Lag Luam
Hloov tshiab kawg: Lub Yim Hli 28, 2026 (Lub Sijhawm Beijing)
Cim npe nrov: ASTM A860 WPHY 60 Concentric Reducer, Tuam Tshoj, manufacturers, hoobkas, nqe, customized
