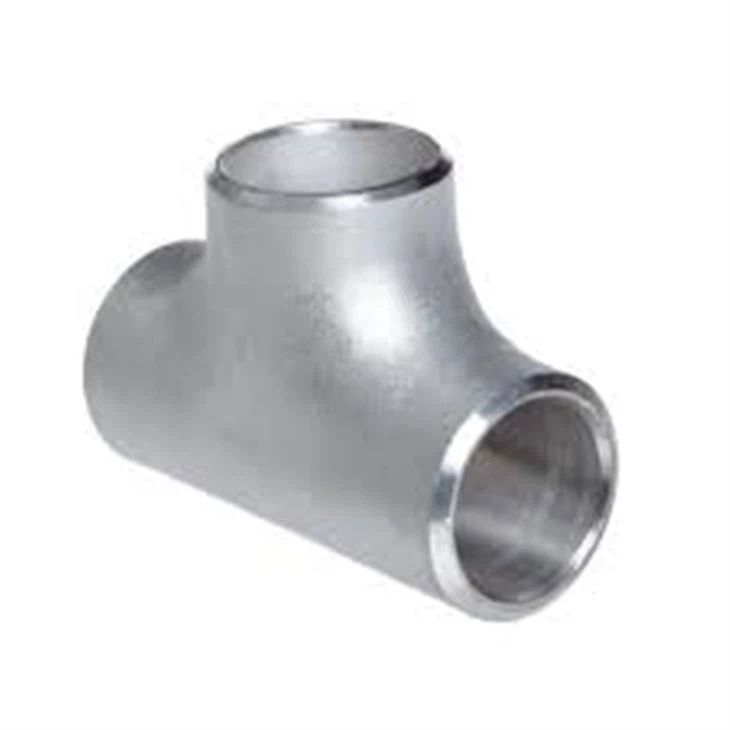

Hastelloy C276 Tee

Hom: Luj tshib, Tee, Reducer, Hla, Cap, Stub kawg
Loj: 1/2"-60"
Thickness: Sch5s-Schxxs
Txuj: ASME, MSS, ISO, DIN, JIS

Hastelloy C276 Tee, ASTM B366 N10276 Tee, ASTM B366 Hastelloy C276 Tee, Hastelloy C276 Pipe Tee, Hastelloy C276 Butt Welded Tee.

Hastelloy C276 Tee:

Hastelloy C276 Teeyog ib qho kev xaiv nrov tshaj plaws thaum nws los txog rau pipework fittings hauv corrosive ib puag ncig. Cov hlau tshwj xeeb no yog tsim los ntawm kev sib xyaw ntawm npib tsib xee, chromium thiab molybdenum, ua rau nws tiv taus corrosion, tshwj xeeb tshaj yog nyob rau hauv acidic ib puag ncig. Qhov no ua rauASTM B366 N10276 Txheemib qho kev xaiv nrov rau kev ua tshuaj lom neeg nrog rau kev lag luam xws li roj thiab roj.

CovASTM B366 Hastelloy C276 Teeyog cov yeeb nkab haum uas tuaj hauv T-puab, nrog peb qhov qhib los txuas cov kav dej hauv ib qho system. Nws yog ib qho kev ruaj khov thiab kav ntev rau txhua qhov kav dej, ua tsaug rau nws cov khoom zoo heev. Ib qho ntawm qhov zoo tshaj plaws ntawmHastelloy C276 Pipe Teeyog nws zoo heev corrosion kuj, ua rau nws yog ib qho zoo tagnrho cov ntaub ntawv siv nyob rau hauv hnyav ib puag ncig.

Cov khoom siv tshuaj lom neeg ntawmHastelloy C276 Butt Welded Teeua kom nws yog ib qho kev xaiv zoo rau cov yeeb nkab fittings. Nws muaj kev tiv thaiv siab rau pitting thiab crevice corrosion thaum raug txo cov tshuaj xws li sulfuric thiab hydrochloric acid. Ntxiv thiab,Hastelloy C276 Teewithstands oxidizing chemicals xws li nitric acid thiab sodium hypochlorite, ua rau nws ib tug txhim khu kev qha kev xaiv rau industrial cheeb tsam.

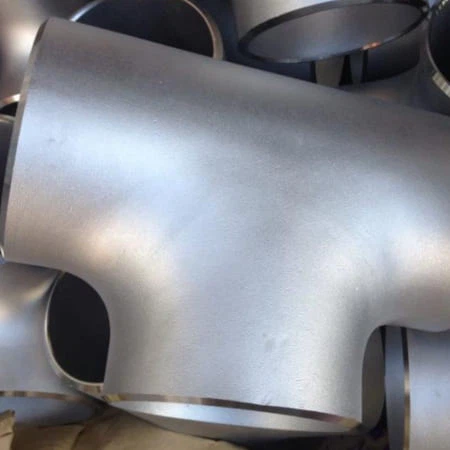

Manufacturer Of Buttweld Fittings BW Tee

1. Txuj Specification Rau Hastelloy ASTM B366 Yeeb Nkab Fittings

Kev qhia tshwj xeeb: ASTM B366 / ASME SB366

Qhov Loj: ASME / ANSI B16.9, ASME B16.28, MSS-SP-43

Loj: Seamless Butt Weld Fittings: 1/2" - 10", Welded Butt Weld Fittings: 1/2" - 48"

Hom: Seamless / Welded / Fabricated

Teem caij: Sch 5 TO Sch XXS.

Thickness: 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, ib., Sch. 80 lwm.

Qib: Hastelloy C276, C22, C4, C2000, B2, B3, X Pipe Fittings

2. Seamless / Welded 100% Radiography kuaj

Cov khoom		Loj
ASTM B366 Hastelloy 45 degree Luj tshib	ASTM B366 Hastelloy Tees	Qhov ntau thiab tsawg 1/2 "- 24"
ASTM B366 Hastelloy Luj Tshib - Luv Radius	ASTM B366 Hastelloy Cross
ASTM B366 Hastelloy txo lub luj tshib	ASTM B366 Hastelloy txo tus ntoo khaub lig
ASTM B366 Hastelloy Luj Tshib - Ntev Radius	ASTM B366 Hastelloy Stub Ends
ASTM B366 Hastelloy Fabricated Tee	ASTM B366 Hastelloy End Cap
ASTM B366 Hastelloy Reducer	ASTM B366 Hastelloy Seamless Fittings
ASTM B366 Hastelloy Concentric Reducer	ASTM B366 Hastelloy Pipe Nipple
ASTM B366 Hastelloy Eccentric Reducer	ASTM B366 Hastelloy 5D luj tshib
ASTM B366 Hastelloy 3D Lub luj tshib	ASTM B366 Hastelloy Welded Yeeb Nkab Fittings
ASTM B366 Hastelloy Swedge Nipple	ASTM B366 Hastelloy Pipe Nipple
ASTM B366 Hastelloy dab tshos	ASTM B366 Hastelloy 5D luj tshib
ASTM B366 Hastelloy Long Joint Stub End	ASTM B366 Hastelloy Lateral Tee
ASTM B366 Hastelloy 1.5D Lub luj tshib	ASTM B366 Hastelloy Reducer

3. Mechanical Properties ntawm ASTM B366 Hastelloy Butt Weld Yeeb Nkab Fittings

Element	Qhov ntom	Melting Point	Tensile zog	Yield zog (0.2% Offset)	Elongation
Hastelloy C276	8,89g 3	1370 degree (2500 degree F)	Psi – 1,15,{2}}, MPa – 790	Psi – 52, 000, MPa – 355	40 %
Hastelloy C22	8.69g 3	1399 degree (2550 degree F)	Psi – 1, 00, 000 , MPa – 690	Psi - 45000, MPa - 310	45 %
Hastelloy B2	9.2g 3	1370 degree (2500 ºF)	Psi – 1,10, 000, MPa – 760	Psi - 51000, MPa - 350	40 %

4. Tshuaj muaj pes tsawg leeg ntawm qib Hastelloy Butt weld Fittings

Qib	C	Mn	Si	S	Co	Ni	Cr	Fe	Mo	P
C276	0.010 max	1 00 max	0.08 max	0.03 max	2.50 max	50.99 feeb*	14.50 – 16.50	4.00 – 7.00	15.00 – 17.00	0.04 max
C22	0.010 max	0.50 max	0.08 max	0.02 max	2.50 max	50.015 feeb *	20.00 – 22.50	2.00 – 6.00	12.50 – 14.50	0.02 max
B2	0.02 max	1 0 max	0.1 max	0.03 max	1 0 max	Bal	1 0 max	2 0 max	26 – 30	0.04 max

5. ASME SB366 Hastelloy Buttweld Fittings sib npaug qib

STANDARD	WERKSTOFF NR.	UNS	JIS	GOST	EN	LOSSIS
Hastelloy C276	2.4819	N10276	wb 0276	ХН65МВУ	NiMo16Cr15W	ЭП760
Hastelloy C22	2.4602	N06022	wb 6022	-	NiCr21Mo14W	-
Hastelloy B2	2.4617	N10665	-	-	-	-

6. Hastelloy C276 Specifications thiab Standards

Qib	North America	Fabkis	Lub teb chaws Yelemees	Nyiv	Russia	European	Lavxias	Askiv	Lwm Lub Npe
Hastelloy C276	UNS N10276	-	WNR/DIN 2.4819	SIB 0276	GOST ХН65MВУ	EURONORM NiMo16Cr15W	LUB SIJ HAWM 760	–	Alloy C276 / Inconel C276
Hastelloy C22	UNS N06022	AFNOR NU-30M	WNR/DIN 2.4602	–	–	EURONORM NiCr21Mo14W	–	–	Alloy C22 / Hastelloy C

7. ASTM B366 Hastelloy Buttweld Fittings (peb Tshwj xeeb)

C276 Hastelloy Buttweld Pipe Fittings Distributor Hauv Is Nrias teb	Hastelloy C22 Buttweld Yeeb Nkab Fittings
C276 Hastelloy Buttweld Pipe Fittings Dealer hauv Is Nrias teb	Hastelloy B2 Welded Yeeb Nkab Fittings
C276 Hastelloy Butweld Yeeb Nkab Fittings Wholesaler hauv Is Nrias teb	Hastelloy Alloy C276 Buttweld Tee
Hastelloy C4 Buttweld Reducer Suppliers	ANSI C2000 Hastelloy Yeeb Nkab Fittings
Hastelloy UNS N10276 Stubends Tus neeg muag khoom	ASTM B366 C276 Hatelloy Buttweld Yeeb Nkab Fittings Exporter Hauv Is Nrias teb
ASTM B366 C276 Hastelloy Buttweld Yeeb Nkab Fittings Tub luam hauv Is Nrias teb	Hastelloy UNS N06022 Pipe End Cap Distributors
Hastelloy UNS N10665 45deg.Elbow	B366 Hastelloy C276 90deg. LR luj tshib Chaw tsim tshuaj paus
Hastelloy DIN 2.4819 Yeeb Nkab Tee	Hastelloy ASTM B366 C22 Hla
Hastelloy DIN 2.4602 Buttweld Txo Npib	C276 Hastelloy Buttweld Yeeb Nkab Fittings Stockholder hauv Is Nrias teb
ANSI B16.9 Hastelloy UNS N06455 Buttweld Haum	DIN 2.4617 Hastelloy End Pipe Cap Stockist
ASTM B366 Hastelloy UNS N06200 Welded Yeeb Nkab Fittings	Hastelloy DIN 2.4610 Yeeb Nkab Fittings
