Nickel alloy THD luj tshib
Forged ASME B {{0}.} THD threaded luj tshib {{4}} # Chaw tsim tshuaj paus khoom npe; 90-deg. THD threaded lub luj tshib Txuj: ASME B 16. Xaus: Threaded Loj: 1 / 2 '' ~ 4 ''

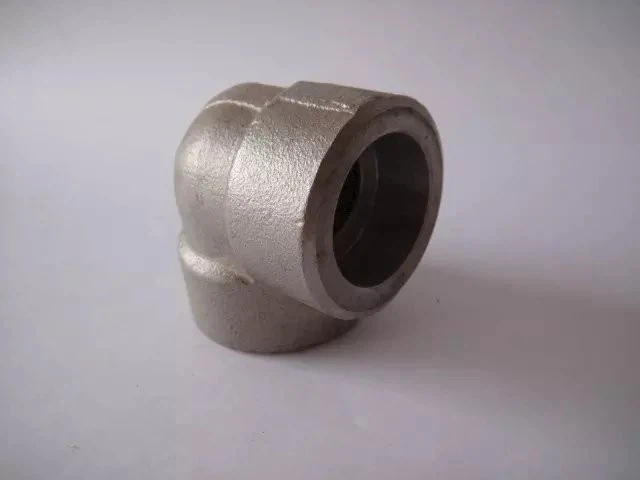

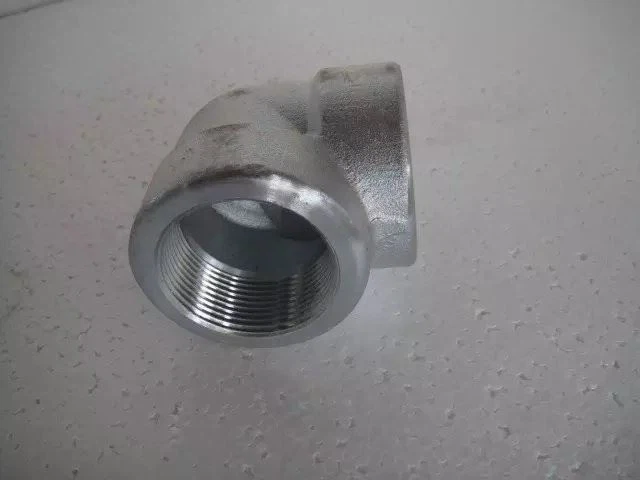

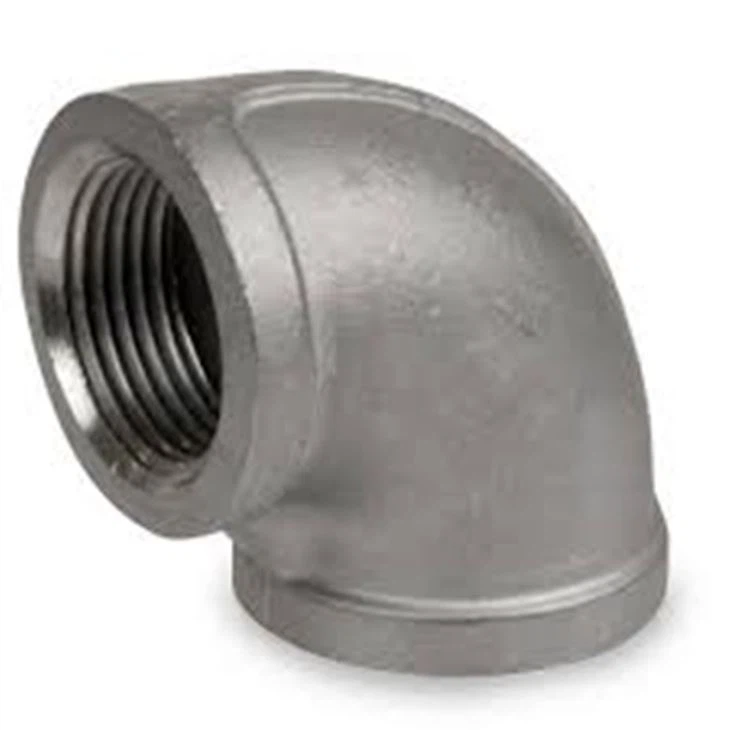

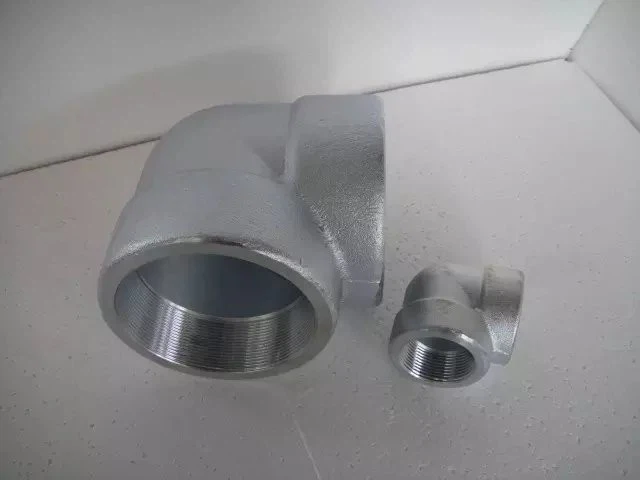

Forged ASME B 16. 11 UNS N 4400 MONEL400 90-deg. THD threaded luj tshib 3000 # Chaw Tsim Khoom
1. ASME B 1 6.. 1 1 luj tshib TxujSpecification
| Qhov ntev | ASME 16. 11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Qhov Coob | 1 / 8 ″ ~ 4 ″ (DN 6 ~ DN 1 00) |
| Chav Kawm | 3000 LBS, 6000 LBS, 9000 LBS |
| Hom | Ntsaws Weld (S / W)& SCREWED (SCRD) - NPT, BSP, BSPT |
| Daim Ntawv | 90 Deg Threaded Luj Tshib, Threaded Luj Tshib, Threaded Yeeb Luj tshib |
| Kev Pabcuam Ntxiv: | Kub Dipped Galvanizing, Epoxy& Kev Pleev Xim Rau FBE, Electro Polish, Xuab Zeb Blasting, Xov Xwm, Soldering |
| Cov Qeb Ntau Lawm: | Stainless hlau, Alloy hlau, ob lub tsev, Nickel Alloys, Kub tsis tshua muaj hlau, Carbon Steel, Cupro Nickel |
Kev Tsim Qauv Kev Ua Qauv ntawm Threaded 90 Deg Luj Tshib
| ASME: | ASME 16. 11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| DIN: | DIN 2605, DIN 2615, DIN 2616, DIN 2617, DIN 28011 |
| EN: | EN10253-1, EN10253-2 |
2.ASME B 16. 11 Nickel alloyMONEL400 90-deg. Nickel alloy THD luj tshib
Magellan Cov Hlau tuaj yeem muab Monel 400 ® cov fittings yeeb nkab kom tau raws li cov hauv qab no:2.ASME B 16. 11 elbowMonel 400 Cov Lus Qhia Tshwj Xeeb
UNS N 04400
ASTM B 366
| UNS: | N04400 |
| Specifications: | ASTM B 366 |
Monel 400 Yeeb Fittings Tshuaj Sib Sau Ua Si
| Monel 400 | N | C | Al | Mn | Si | Fe | Cu | S | Co | Cr |
| 63. 0 min | 0. 3 max | 0. 50 max | 2 .0 max | 0. 5 max | 1.0 – 2.5 | 28.0 – 34.0 | 0. 02 max | – | – |
Alloy 400 Yeeb Fittings cov khoom siv kho tshuab
| Qhov ceev | Melting Point | Yield Zog (0. 2% Offset) | Lub zog Tensile | Looj Ceeb |
| 8. 8 g / cm 3. | 1350 °C (2460 °F) | Psi - 35, 000, MPa - 240 | Psi - 80, 000, MPa - 550 | 40 % |
Cov Qib Sib Npaum rau Monel 400 Fittings
| TXHEEM | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | XAV PAUB |
| Monel 400 | N04400 | 2.4360 | NU-30M | NiCu 30 Fe | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 |
3.Vim li cas peb xaiv?
1 .Peb tau xa tawm cov khoom lag luam hauv qab no rau 1 0years, peb muaj peev xwm nrog txhuaNyob hauv tus txheej txheem ntawm kev xa khoom
Flange, Cov yeeb nkab fittings / Cov yeeb nkab raj / bar / tsis nco qab / phaj ntawv / bolts ceev roj av
2.Cov khoom yog tsim nyob rau hauv peb tus kheej lub Hoobkas thiab peb cov kev tswj hwm zoo yog nruj me ntsis.
3.Peb tuaj yeem muab cov ntawv pov thawj uas xav tau ua tus xa tawm
4.Peb tuaj yeem muab cov nqi zoo tshaj plaws thiab cov khoom lag luam zoo.
5.Peb tau mus sablaj txhua xyoo los qhib cov qhua tuaj noj mov thiab tuaj ntsib cov neeg siv khoom ib xyoos ib zaug.
6. Peb muaj ib xyoos tom qab muag kev pab rau peb cov khoom, thiab koj tuaj yeem tiv tauj peb yog tias koj muaj lus nug nyob rau hauv ib xyoos
