High Yield Carbon Steel ASTM A694 F52 F56 F60 F65 F70 Flange
Hom: SO, SW, BL, WN, LJ, Spectacle, Orifice ect.
Loj: 1/2 "-48", DN10-DN4000
Chav Kawm: 75 #-2500 #, PN6-PN100
Txuj: ASME, DIN, EN, JIS, BS
Zhengzhou Huitong Pipeline Equipment Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm astm a694 f52 f56 f60 f65 f70 flange hauv Suav teb. Peb sov siab txais tos koj los yuav peb cov pa roj carbon steel astm a694 f52 f56 f60 f65 f70 flange. Peb lub Hoobkas kuj lees txais cov kev txiav txim customized. Thov pub dawb kom txaus siab rau peb cov nqi sib tw thiab kev pabcuam zoo heev.
ASTM A694 Flanges Nqe Sau 2026|High-Yield Pipe Flange Supplier
High Yield Carbon Steel ASTM A694 F52, F56, F60, F65, thiab F70 flange tus nqi feem ntau yog los ntawm$1.80–$4.20/kg hauv 2026.ASTM A694 flanges muab zoo heevsiab - muaj zog ua haujlwm, cuam tshuam toughness, thiab siab ua haujlwm.Cov forged flanges no tau siv dav hauvroj & roj pipelines, offshore platforms, petrochemical nroj tsuag, thiab siab -siab transmission systems. ASTM A694 siab yield carbon steel flanges muaj nyob rau hauv weld caj dab, qhov muag tsis pom, plam- rau, threaded, socket weld, thiab ceg tawv sib koom ua ke thiab lwm yam.
ASTM A694 Flange Nqe List 2026
| Qib | Qhov Loj | Qib Siab | Tus nqi kwv yees (USD/Piece) | Nqe (USD / KG) |
| F52 | 1/2"–24" | 150–2500 | $8–$850 | $2.5–$3.8 |
| F56 | 1/2"–24" | 150–2500 | $10–$920 | $2.8–$4.0 |
| F60 | 1/2"–36" | 300–2500 | $15–$1350 | $3.0–$4.5 |
| F65 | 1/2"–48" | 300–2500 | $20–$1850 | $3.8–$5.5 |
| F70 | 1/2"–60" | 300–2500 | $28–$2500 | $4.5–$6.8 |
Thov qhia rau kuv paub hom, qhov loj me, thiab ntau npaum li cas ntawm flanges, thiab kuv yuav muab rau kojdawb quotetam sim no!
Zhengzhou Huitong Pipeline Equipment Co., Ltd. Daim ntawv pov thawj:
✅ ISO 9001: 2015
✅ MTC 10204 3.1 3.2
✅ 100% PMI (Positive Material Identification)
✅ Ultrasonic Testing (Rau ASME VIII)
✅ Third-Kev Tshawb Fawb Kev Tshawb Fawb (SGS/BV/DNV/LR)
✅ NACE MR0175 / ISO 15156
ASTM A694 Flange tuaj nyob rau hauv ntau qib xws li F42, F52, F60, F65 thiab F70. Qhov txawv yog nyob rau hauv cov tshuaj muaj pes tsawg leeg. ASME SA694 High Yield F52 Flange muaj carbon, silicon, manganese, phosphorus, sulfur, molybdenum, npib tsib xee, chromium, tooj liab, vanadium thiab niobium nyob rau hauv muaj pes tsawg leeg.
Muaj ntau hom ASTM A694 Flanges thiab HT PIPE yog cov chaw muag khoom ntawm txhua hom flanges hauv cov lus qhia no. ASTM A694 F65 Flange yog siv los txiav cov yeeb nkab txuas. Cov flanges, fittings, li qub thiab lwm yam khoom siv hauv A694 specification yog txhais tau rau kev pabcuam kev sib kis siab. Yog li ASTM A694 Flange tuaj yeem pom hauv petrochemical, roj thiab roj thiab hauv kev siv hluav taws xob nuclear. Qhov sib txawv ntawm cov flanges yog siv rau ntau hom kev sib txuas.

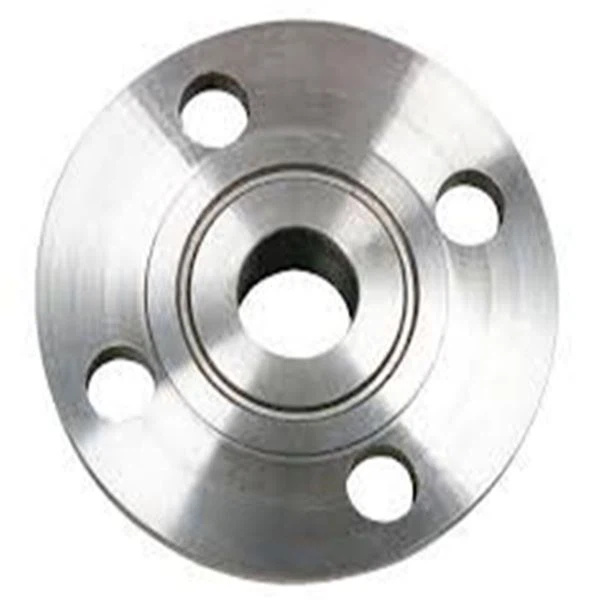

CS Flange Covyog tsim los ntawm F52 qib carbon steel thiab flange tso cai rau cov kav dej kom plam. Qhov no tso cai rau kev xaiv qhov chaw meej thiab haum rau cov kav dej.
ASTM A694 Flange Specifications
| Khoom Txheem | ASTM A694 Cov khoom lag luam |
| Manufacturing Standard | ASME B16.5 (txog 24 "), MSS SP-44 (26" thiab loj dua), ASME B16.47 Series A & B. |
| Hom Flange | WN, BL, SO, SW, TH, LJ |
| Kev ntsuas siab | 150#, 300#, 400#, 600#, 900#, 1500#, 2500#. |
| Qhov Loj | 1/2"–60" |
| Hom ntsej muag | RF, FF, RTJ |
| Kev kho cua sov | Normalizing / Quenching & Tempering |
| Txheej | Dub Xim, Galvanized, FBE |
Mechanical Properties
| Qib | Yield zog | Tensile zog |
| F52 | 52 kwm | 66 kwm |
| F56 | 56 kwm | 71 kwm |
| F60 | 60 kwm | 75 kwm |
| F65 | 65 kwm | 77 kwm |
| F70 | 70 kwm | 82 kwm |

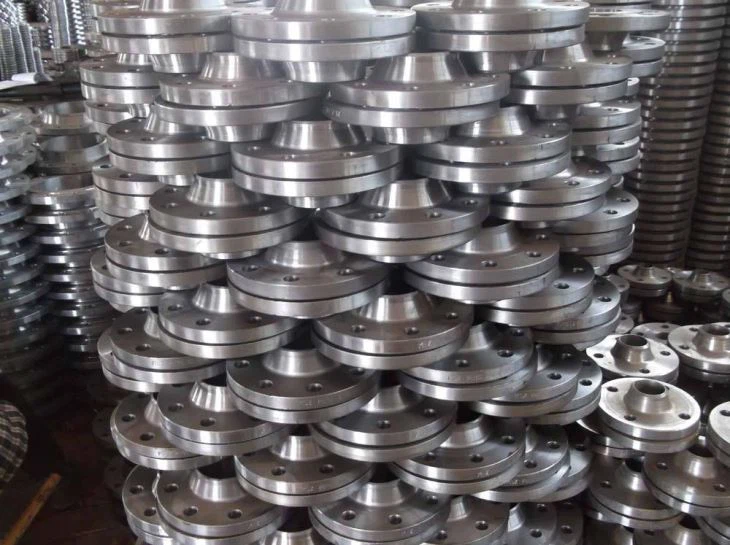

A694 Flange
ASTM A694 High Yield Carbon Steel Flanges yog dab tsi?
A694 FLANGE rau cov khoom siv ntawm cov pa roj carbon thiab alloy steel yeeb nkab flanges, fittings, li qub thiab qhov chaw rau siab - cov kua xa tawm. Nws npog cov ntaub ntawv qib F42, F46, F52, F56, F60, F65 thiab F70. A694 yog tsim tshwj xeeb rau kev ua kom siab -yield xav tau, xws li 42,000 psi (F42) txog 70,000 psi (F70).
A694 vs A105
| Feature | ASTM A694 Cov khoom lag luam | ASTM A105 1 |
| Yield zog | Siab (52k–70k psi) | Nruab nrab (36k psi) |
| Kev siv thawj zaug | Siab -Kev xa tawm siab | Kev Lag Luam General/Refinery |
| Nqi | Hwm | Txuj |
| Weldability | Zoo heev | Zoo heev |
| Zoo tshaj rau | Roj & Roj Pipelines | Tsawg-Pressure Utility Systems |
ASTM A694 F65 vs Stainless hlau 316 Flange
| Khoom | ASTM A694 F65 | Stainless hlau 316 |
| Corrosion Resistance | Nruab nrab | Zoo heev |
| Lub zog | Siab heev | Nruab nrab |
| Nqi | qis | Siab dua |
| Chloride Resistance | txwv | Zoo heev |
| Kub Resistance | Zoo | Zoo heev |
| Daim ntawv thov tseem ceeb | Pipeline Transmission | Tshuaj & Marine |
ASTM A694 Carbon Steel Flanges Kev Xeem:
• Mechanical test
• Kev kuaj Hardness
• Kev kuaj hluav taws xob
• kuaj cov khoom zoo
• Pitting corrosion test

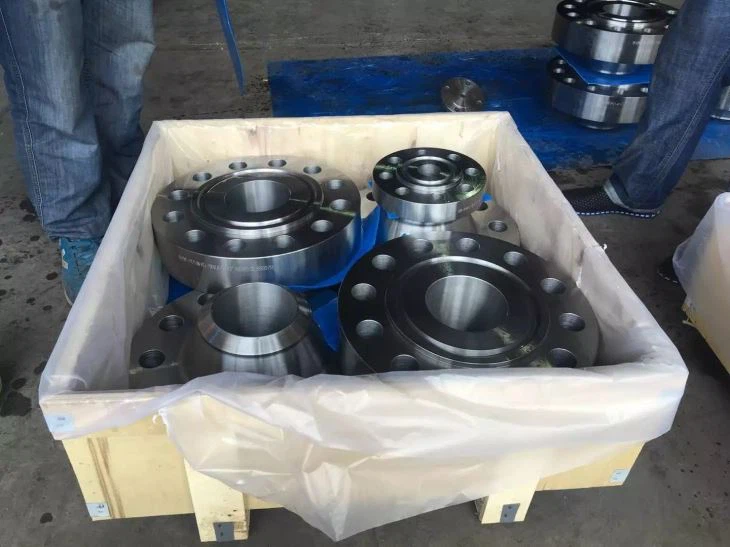

Kev muab khoom ntawm ASTM A694 Carbon Steel Weld Neck Flanges yog ua los ntawm cov rooj ntoo lossis ntoo pallets. Nws yog npog nrog yas zaj duab xis los tiv thaiv kev puas tsuaj thaum xa tawm.
Kev Tshawb Fawb Cov Neeg Siv Khoom
- NORSOK L-005 Compact Swivel Flanges
- NORSOK L-005 Compact Weld Neck Flanges
- IX Foob Rings
- Kev ntsuas siab: Chav kawm # 1500
- Khoom siv: ASTM A694 F65 / F66
- Tube ID: 411 mm
- Sab nraud txoj kab uas hla: 467 mm
- Subsea sab nrauv txheej yuav tsum tau
- Kev xa khoom - Lagos Nigeria
| Kev piav qhia | Khoom siv | Cov ntawv pov thawj | Qty | UOM |
| NORSOK L-005, Compact Swivel Flanges, RTJ, Yeeb Nkab Internal inch 411mm thiab sab nraud txoj kab uas hla 467mm, Kev ntsuas siab # 1500, Flanges yuav tsum tau coated sab nraud rau sebsea installation | ASTM A694 F65 | Yog lawm | 50 | Pcs |
| NORSOK L-005, Compact Weldneck Flanges, Yeeb Nkab Sab hauv 411mm thiab sab nraud txoj kab uas hla 467mm, Kev ntsuas siab # 1500, langes yuav tsum tau coated sab nraud rau sebsea installation | ASTM A694 F66 | Yog lawm | 100 | Pcs |
Pipe Flange Mob taub hau? Peb tham ASTM A694!
Puas tau raug daig sim mus rau qhov chaw ASTM A694 flanges rau lub siab - qhov project siab, tsuas yog nrhiav lub sij hawm txhuas ntev dua qhov project nws tus kheej? Los yog tej zaum koj tab tom sib cav seb koj qhov project tam sim no xav tau F65 lossis yog tias koj dhau - engineering nws?
NtawmHUITONG, peb tsom mus rau tag nrho traceability thiab nruj mechanical testing. Txawm hais tias koj tab tom cuam tshuam nrog cov kev pabcuam qaub lossis cov qauv siab - cov kab siab, ua kom koj cov flanges ua tau raws li cov qauv ASTM yog thawj kauj ruam hauv kev txo qis.
FAQ:
Q: Tus nqi ntawm ASTM A694 F65 flange nyob rau xyoo 2026 yog dab tsi?
A: ASTM A694 F65 flange tus nqi feem ntau yog li ntawm $ 2.8- $ 5.5 / kg nyob ntawm qhov loj me, chav kawm siab, thiab kev xeem yuav tsum tau ua.
Q: Qhov txawv ntawm ASTM A694 thiab ASTM A105 flanges yog dab tsi?
A: ASTM A694 flanges muab lub zog muaj zog ntau dua thiab feem ntau yog siv rau siab - kev pabcuam kev sib kis, thaum ASTM A105 yog rau cov kav dej dav dav.
Q: Puas yog A694 xeb yooj yim?
A: Raws li cov khoom siv carbon steel, nws raug rau corrosion. Cov txheej tiv thaiv (epoxy, galvanizing) feem ntau yog siv rau kev ua haujlwm ntev -.
Q: ASTM A694 qib twg yog qhov zoo tshaj plaws rau cov roj thiab cov kav dej?
A: F65 thiab F70 feem ntau raug xaiv rau siab - cov roj thiab roj kav dej.
Q: Puas yog ASTM A694 flanges haum rau qis -kev pabcuam kub?
A: Yog. Thaum tshav kub kub zoo-kho ASTM A694 flanges muaj qhov zoo heev qis-kub toughness thiab cuam tshuam tsis kam.
Hais txog Zhengzhou Huitong Pipeline Equipment Co., LTD.
HT PIPE yog ib tug zoo-paub stockist thiab exporter. Peb yog cov khoom siv stainless / carbon / npib tsib xee alloy khoom xa khoom nrog 15+ kev xa tawm. Peb tsis tsuas yog muab cov kav dej, phaj, puag ncig, tab sis kuj yog cov yeeb nkab fittings, flanges, thiab lwm yam. Tiv tauj peb kom paub ntau ntxiv thiab cov nqi dawb.
