ASTM A694 F65 WN Compact Flange
Hom: SO, SW, BL, WN, LJ, Spectacle, Orifice ect.
Loj: 1/2 "-48", DN10-DN4000
Chav Kawm: 75 #-2500 #, PN6-PN100
Txuj: ASME, DIN, EN, JIS, BS
Zhengzhou Huitong Pipeline Equipment Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm astm a694 f65 wn compact flange hauv Suav teb. Peb sov siab txais tos koj mus yuav peb astm a694 f65 wn compact flange. Peb lub Hoobkas kuj lees txais cov kev txiav txim customized. Thov pub dawb kom txaus siab rau peb cov nqi sib tw thiab kev pabcuam zoo heev.

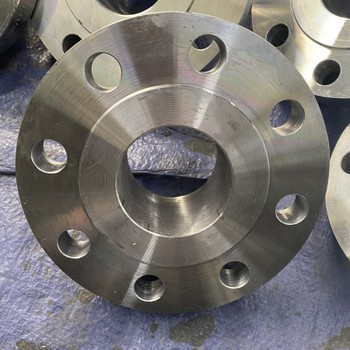

ASTM A694 F65 WN Compact Flange
ASTM A694 F65 WN Compact Flange nta lub zog qis kawg nkaus ntawm 450 MPa (65 ksi). Nws muaj peev xwm ua tau raws li qhov kev ntsuas siab xws li Chav Kawm 150 txog Chav Kawm 2500, nrog rau qhov kub thiab txias ntawm -29℃thiab 425 degree. Lub caj dab "Compact" luv dua li ntawm tus qauv WN flange, ua rau lub cev hnyav dua.
Qauv:ASTM A694, ANSI B16.5, B16.47 Series A/B, B16.36
Siab Yield: A694 F65 Flanges; Yield zog siab dua los yog sib npaug rau 450 MPa (65 ksi)
Tsawg- Kub: Ua raws li NACE MR0175 thiab Kev Ntsuas Kev Ntsuas; haum rau kev pabcuam qaub thiab qis -kev ua haujlwm kub.
Mechanical PropertiesLub zog tensile: 485 - 655 MPa (70 - 95 ksi); Yield Strength (0.2% offset): Ntau dua lossis sib npaug rau 450 MPa (Ntau dua lossis sib npaug rau 65 ksi); Elongation (2-inch ntsuas qhov ntev): Ntau dua lossis sib npaug li 20%; Lub zog cuam tshuam (-30℃/ -20℃F): Ntau dua lossis sib npaug rau 27 J (Longitudinal) / Ntau dua lossis sib npaug rau 20 J (Transverse)
Kev tsim khoom:Kub Forging, Kev kho cua sov (Quenching + Tempering / Normalizing + Tempering)
Kev ntsuas siab:150, 300, 400, 600, 900, 1500, 2500
Hom ntsej muag: FF, RF, RTJ
Kev kho deg:Sandblasting, txhaj tshuaj blasting, Anti- xeb xim, xim dub, xim daj, zinc plating, Kub-dip Galvanizing
Machining:CNC Machining, Drilling, Punching
Qhov Loj Loj:1/2 "- 48" (DN10 - DN4000)
Qib Siab:Chav Kawm 150 - 2500 (PN6 - PN100)
Daim ntawv thov:Siab - siab siab cov pa roj av / roj kav dej, cov kav dej tawm sab nraud, kev sib txuas ntawm compressor / twj tso kua mis, cov kev pabcuam qaub (H₂S) ib puag ncig.
ASTM A694 F65 WN Flange Nqe Ib Kg
| Qhov ntau thiab tsawg (NPS) | Chav kawm | Kev ntsib | SCH40 (USD/kg) | SCH 80 (USD / kg) |
| 1/2" – 2" | Chav Kawm 150–300 | RF | $2.8–$3.5 | $3.2–$4.0 |
| 3" – 8" | Chav Kawm 300-600 | RF / RTJ | $3.0–$3.8 | $3.5–$4.3 |
| 10" – 24" | Chav Kawm 600–900 | RTJ | $3.6–$4.5 | $4.2–$5.2 |
| 26" – 48" | Chav Kawm 900-2500 | RTJ | $5.0–$7.5 | $6.0–$9.0 |
ASTM A694 F65 Flanges, A694 F65 Carbon Steel Flanges, A694 F65 Flanges, ASME SA694 F65 Flanges, A694 F65 High Yield Yeeb Flanges, A694 F65 API Yeeb Nkab Flanges, A694 GRADE F65 Flanges Manu

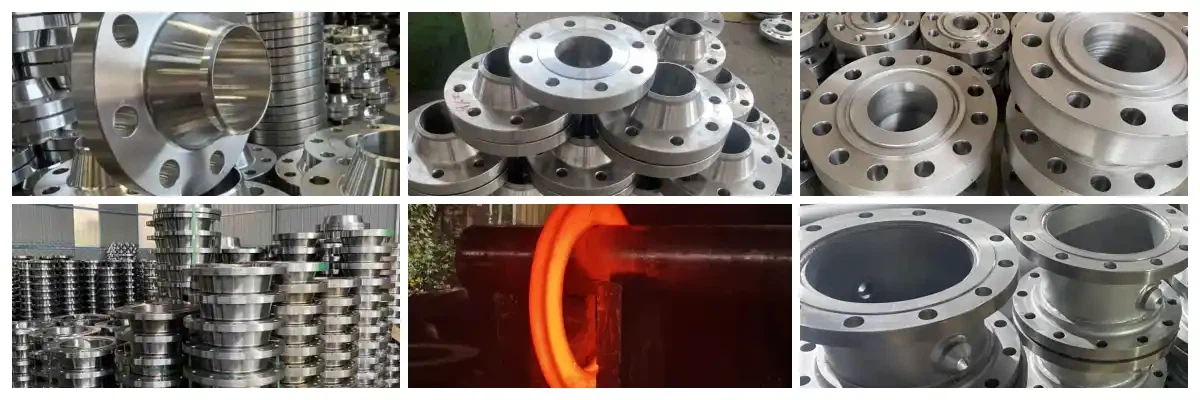

Cov khoom ntawm ASTM A694 F65 Steel Flanges
ASTM A694 F65 Flanges Specification
| Specification | ASTM A694 / ASME SA694 Cov Lus Qhia |
| Kev tsim khoom | Kub Forging / Rolling / Machining |
| Sab nraud | 1/2" NB TO 60" NB |
| Qib Siab | Chav Kawm 150 #, Chav Kawm 300 #, Chav Kawm 400 #, Chav Kawm 600 #, Chav Kawm 900 #, Chav Kawm 1500 #, Chav Kawm 2500 # lossis Raws Li Kev Xav Tau PN 6, PN 10, PN 16, PN 25 thiab PN 40 thiab lwm yam |
| Teem caij | Sch 10s TO Sch XXS lossis Raws li Kev Cai Lij Choj |
| Kev ntsib | Lub ntsej muag Flate (FF), tsa ntsej muag (RF), Ntiv nplhaib hom Joint (RTJ) |
| Dimension | ASME B16.5, ASME B16.47 SERIES A, ASME B16.47 SERIES B |
| Hom | Vuam Neck Flange, Slip On Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Dig Muag Flange, Orifice Flanges, Phaj Flange, Ntev Vuam Neck Flanges, Txo Flange, WNRF Flange, SORF Flange, SWRF Flange, thiab lwm yam. |
| Kev sim | NACE MR0175, Ultrasounic Test, Charpy Impact Test, Macro, Grain Size, Hardness, HIC, SSC, Sour Service, A rau annealed, N rau normalized, NT rau Normalized thiab Tempered, los yog QT rau quenched thiab Tempered, thiab lwm yam. |
| Kev Pab Cuam Ntxiv | Rolling, Laum, Punch, CNC Machining, Sand Blasting, Txhaj Blasting, Thaum tshav kub kub kho, Anti- xeb xim, Roj xim dub, daj pob tshab, Zinc Plated, txias thiab kub dip Galvanized |
| Ntim | Loose / Carrate / Ntoo Pallet / Ntoo Box / Plastic Cloth Wraps |
| Kev xa khoom & Kev thauj mus los | Los ntawm Txoj Kev - Tsheb / Tsheb ciav hlau Ib nrab Load, Tag Nrho Load, Los Ntawm Hiav Txwv - So -bulk Pas Dej Nkoj / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Freighter Civil Passenger thiab Cargo Planes |
| Material Test Certificate | Chaw tsim tshuaj paus Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Nyob rau hauv Lub Chaw Saib Xyuas Thib Peb Zoo li SGS, TUV, DNV, LLOYDS, ABS, Bureau of Standards BIS Pom Zoo thiab lwm yam. |
A694 F65 Cov khoom siv tshuaj lom neeg muaj pes tsawg leeg
| Element | C | Mn | P | S | Si | Ni | Cr | Mo | V | Cu |
| F65 (max los yog ntau yam) | Tsawg dua los yog sib npaug li 0.20 | 1.00-1.60 | Tsawg dua lossis sib npaug li 0.025 | Tsawg dua lossis sib npaug li 0.025 | 0.15-0.35 | Tsawg dua lossis sib npaug li 0.40 | Tsawg dua los yog sib npaug li 0.30 | Tsawg dua los yog sib npaug li 0.15 | Tsawg dua lossis sib npaug li 0.10 | Tsawg dua los yog sib npaug li 0.35 |
ASTM A694 GR F65 Flange Mechanical Properties
| Tensile zog | 485 - 655 MPa (70 - 95 ksi) |
| Yield zog (0.2% offset) | Ntau dua lossis sib npaug rau 450 MPa (Ntau dua lossis sib npaug rau 65 ksi) |
| Elongation (2 nti ntsuas qhov ntev) | Ntau dua lossis sib npaug li 20% |
| Lub zog cuam tshuam (-30℃/ -20℃F) | Ntau dua lossis sib npaug 27 J (ntev) / Ntau dua lossis sib npaug rau 20 J (transverse) |
| Hardness (HBW) | Tsawg dua lossis sib npaug li 235 |
A694 F65 vs A105
- A694 F65 nta lub zog tawm los ntawm Ntau dua lossis sib npaug rau 450 MPa; nws tsim nyog rau siab - cov pa roj thiab roj pipelines nrog rau acidic ib puag ncig, txawm hais tias nws ua rau tus nqi siab dua.
- A105 nta lub zog tawm los ntawm Ntau dua lossis sib npaug ntawm 250 MPa; nws yog tsim rau cov kav dej dav dav thiab muaj nyob rau ntawm tus nqi qis.
Vim li cas thiaj xaiv US Carbon Steel Flange Suppliers?
- Tsis yog-Kev kuaj kev puas tsuaj: Ultrasonic Testing (UT)
- Mechanical Testing: Charpy Impact Test, Hardness Test, Macro/Micro Metallography
- Kev Ntsuas Tshwj Xeeb: HIC (Hydrogen{0}}Induced Cracking), SSC (Sulfide Stress Corrosion)
- NACE MR0175 / MR0103 (Sour Service)
- Kev kho cua sov: Normalizing (N), Normalizing + Tempering (NT), Quenching + Tempering (QT)
Zhengzhou Huitong Pipeline Equipment Co., Ltd. Daim ntawv pov thawj:
✅ ISO 9001: 2015
✅ MTC 10204 3.1 3.2
✅ 100% PMI (Positive Material Identification)
✅ Kev Ntsuas Ultrasonic (UT)
✅ Dimensional Inspection Report (inch, Length, Straightness, Roundness)
✅ Thib peb-Kev Txhawb Kev Tshawb Fawb: SGS, BV, TÜV
✅ 15 Xyoo ntawm kev paub hauv Exporting Flanges
FAQ:
A694 F65 khoom yog dab tsi?
ASTM A694 F65 yog qib siab -lub zog, qis- alloy carbon steel qib. Nws yog siv rau kev tsim cov yeeb nkab forged flanges, yeeb nkab fittings, thiab cov khoom zoo sib xws. Lub npe "F65" qhia qhov tsawg kawg nkaus lub zog ntawm 65 ksi (450 MPa).
Model A694 F65 siv rau dab tsi?
- Roj & Roj: Cov Khoom Siv Hauv Tsev, Cov Ntoo Christmas
- Offshore Roj & Gas: Drilling Platforms, Risers, Siab -Pressure Gas Sib Sau Pipelines
- Petrochemicals: Refineries, High-Tsub & Siab- Cov Txheej Txheem Txheej Txheem
- Fais fab tiam: Boiler Piping, Chav Kab
- Siab -Cov Dej Siab, Tshuaj, thiab Slurry Thauj Pipelines
Qhov twg Kuv Yuav Yuav Ib A694 F65 Khoom Hauv Online?
- Savoy Piping Inc. (Is Nrias teb)
- FitTech Kev Lag Luam (India)
- Cangzhou Enfei (Tuam Tshoj):
- Ulma (Spain) / Kofco (South Kauslim)
- Zhengzhou Huitong Pipeline Equipment Co., Ltd.
Sib piv A694 F65 Nrog Cov Qauv Zoo sib xws hauv Kev Ua Lag Luam
| Khoom siv | Cov pa roj carbon steel | Tsawg-kub carbon steel | High-yield carbon steel |
| Min Yield zog | 250 MPa (36 ksi) | 250 MPa (36 ksi) | 450 MPa (65 ksi) |
| Min Tensile zog | 485 MPa (70 ksi) | 485 MPa (70 ksi) | 530 MPa (77 ksi) |
| Min Elongation | 22% | 22% | 20% |
| Yuav tsum tau kuaj Impact | Tsis yog (tshwj tsis yog tau teev tseg) | Yog (-46 degree) | Tsis yog (tshwj tsis yog tau teev tseg) |
Nrhiav A694 F65 Yeeb Nkab Fitting Manufacturers
- Zhengzhou Huitong Pipeline Khoom
- FitTech Kev Lag Luam Pvt. Ltd.
- Savoy Piping Inc.
- Shikhar Steel Corporation
- Matalfar / Melesi (Ltalis)
- Kofco (South Kauslim)
Qhov twg yuav A694 F65 Siab -siab Flange
Hais txog Zhengzhou Huitong Pipeline Equipment Co., LTD.
HT PIPE yog ib tug zoo-paub stockist thiab exporter. Peb yog cov khoom siv stainless / carbon / npib tsib xee alloy khoom xa khoom nrog 15+ kev xa tawm. Peb tsis tsuas yog muab cov kav dej, phaj, puag ncig, tab sis kuj yog cov yeeb nkab fittings, flanges, thiab lwm yam. Tiv tauj peb kom paub ntau ntxiv thiab cov nqi dawb.
Tus sau: Chloe Pu (5 xyoos hauv stainless hlau, nickel alloy, thiab carbon steel kev lag luam)
Tshaj tawmHnub tim: Lub Plaub Hlis 2, 2026 (Beijing Time)
