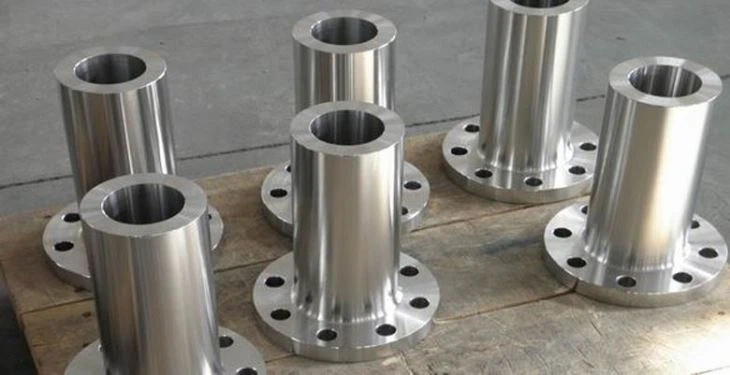

A182 F53 Flange

Hom: SO, SW, BL, WN, LJ, Spectacle, Orifice ect.
Loj: 1/2"-48", DN10-DN4000
Chav Kawm: 75#-2500#, PN6-PN100
Txuj: ASME, DIN, EN, JIS, BS

Xa kev nug

ASTM A182 Super Duplex 2507 RTJ Flange, Super Duplex 2507 Flat Flange, 2507 Flanges Traders, Stockholder, Super Duplex 2507 Lap Joint Flanges, Super Duplex Steel 2507 Slip on Flanges, Super Duplex 2507 Super Flanges 25, Super Duplex 7 Flange Stockholder

HT PIPE yog cov chaw tsim khoom lag luam lees paub thiab xa khoom ntawm Super Duplex 2507 Flanges. Super Duplex 2507 yog cov hlau tsis muaj steel tsim los rau cov khoom muaj zog corrosion. Rau qhov muaj feem pua molybdenum, chromium thiab nitrogen hauv cov hlau ua tau zoo heev tiv thaiv corrosion thiab super duplex qauv muab nrog tshwj xeeb tsis kam rau chloride kev nyuaj siab corrosion cracking.

Super duplex 2507 flanges muaj nyob rau hauv daim ntawv ntawm Super Duplex 2507 Slip On Flanges, Super Duplex 2507 Bind Flanges, super duplex 2507 phaj flanges, Super Duplex 2507 Weld Neck Flanges, super duplex 2507 threaded flanges thiab lwm yam. Extended elevated kub ntau tshaj 600F tuaj yeem txo qhov toughness thiab corrosion kuj ntawm super duplex 2507 flanges. ASTM A182 Super Duplex 2507 RTJ Flanges feem ntau yog siv rau hauv cov khoom siv tshuaj lom neeg, kev siv dej hiav txwv, kev lag luam roj av, kev lag luam pulp, thiab ntawv, kev lag luam desalination thiab ntau ntxiv.

Super Duplex Steel S32750 Flange ASME SA182M Duplex Steel 2205 S31803 Wholesaler

1.F53 LWN Flange yog siv rau cov xwm txheej kub siab, LWN Flanges yog siv thiab rau cov neeg mob siab heev Ntev Vuam Neck flanges yog nyiam. Nyob rau hauv rooj plaub no, lub weld nyob deb ntawm lub nplhaib kom tsis txhob bending stresses thiab weld stress tau ua ke.

LWN flange drawing

2.ANSI B16.5 A182 F53 Super Duplex Stainless Hlau 2507 LWN RTJ Flange

Hom Fittings	LWM RTJ Flange
Khoom siv Standard	SA182/A182M
Khoom siv	2507 F53 UAS S32750
Txuj kev tsim khoom	ASME / ANSI B 16.5, ASME B 16.47 SERIES A (MSS SP 44), ASME B 16.47 SERIES B (API 605), JIS, DIN, BS
Sealing ntsej muag	RTJ
Qib Siab	75LB, 125LB, 150LB, 300LB, 400LB, 600LB, 900LB, 1500LB, 2500LB; 5K, 10K, 16K, 20K, 30K PN2.5, PN6, PN10, PN16, PN25, PN40, PN64, PN80, PN100, PN250, PN320, PN400
Kev kho cua sov	Kev daws
Nto Finishing	Pickling, Blasting
Keeb kwm	Suav los yog Malaysia
Cov txheej txheem	Forging
Txoj kab uas hla	1/2"-24"
Daim ntawv pov thawj	3.1 Mill Certification
Kos npe	Raws li cov neeg siv khoom xav tau
Ntim nthuav dav	Plywood Case, Plywood Pallet, lwm yam
Kev them nyiaj	30 feem pua T / T ua ntej, 70 feem pua ua ntej xa khoom
Lub sij hawm xa tuaj	Raws li qhov ntau ntawm kev txiav txim
Chaw nres nkoj xa khoom	Txhua qhov chaw nres nkoj hauv Suav teb
Daim ntawv thov	Kev ua tshuaj lom neeg, thauj thiab khaws cia, Kev tshawb nrhiav roj thiab roj thiab ua cov khoom siv, Marine thiab lwm qhov chaw muaj chloride siab, Pulp thiab ntawv digesters, cawv tso tsheb hlau luam thiab tshuab ntawv.

CHEMICAL PROPERTIES:

Qib	C	Mn	P	S	Si
S32750/F53	Tsawg dua lossis sib npaug rau 0.030	Tsawg dua lossis sib npaug rau 1.20	Tsawg dua lossis sib npaug rau 0.035	Tsawg dua lossis sib npaug rau 0.02	Tsawg dua lossis sib npaug rau 0.80
Qib	Cr	N	Mo	Ni	V
S32750/F53	24.0-26.0	0.24-0.32	3.0-5.0	6.0-8.0	Tsawg dua lossis sib npaug rau 0.5

MECHANICAL PROPERTIES:

Qib	Qhov kawg Tensile Strength, psi Yam tsawg kawg nkaus	Yield zog, ksi Yam tsawg kawg nkaus	Elongation feem pua	Kev txo qis ntawm Cheeb Tsam feem pua
S32750/F53	Ntau tshaj los yog sib npaug rau 800	Ntau dua lossis sib npaug li 550	Ntau dua lossis sib npaug li 15	/

3.A182 F53 Flange Daim Ntawv Thov

Lub caj dab ntev vuam flange feem ntau yog siv rau kev tsim kho ntawm lub nkoj siab ua haujlwm raws li lub nozzle (xws li lub thermowell nozzle). Txhawm rau txuas lub caj dab vuam flange rau lub nkoj siab, ib daim yeeb nkab yuav tsum tau txuas ntxiv vuam. Ib qho LWN flange ntawm qhov tod tes txuas ncaj qha rau lub nkoj, yog li, nws tuaj yeem pom tau tias yog ib qho kev txhawb nqa tsis muaj zog. Nws tsis txhob ua ib tug weld seam ntawm cov yeeb nkab rau flange thiab muab nws tus kheej-reinforcement.

4.A182 F53 Flange Dimensions & Tolerances

Feem ntau, ntev weld caj dab flanges (ncaj hub vuam flanges) ua raws li ASME B16.5 muaj cov hubs ntawm cov tuab tuab tshwj tsis yog txwv los ntawm cov neeg yuav khoom. Qhov loj me ntawm daim duab -1 yog raws li nram no: D - sab nraud ntawm flange, K - txoj kab uas hla ntawm lub voj voog, G - txoj kab uas hla ntawm lub ntsej muag, B - bore txoj kab uas hla ntawm flange, X - txoj kab uas hla ntawm hub, Y - ntev los ntawm hub, T - flange thickness, t - qhov siab ntawm lub ntsej muag, n - tus naj npawb ntawm bolts, d - txoj kab uas hla ntawm lub qhov taub. LWN flanges yuav tsum muaj qhov ntev thiab kam rau ua ntawm tus qauv wn flangentawm tib qhov loj thiab chav kawm, tshwj tsis yog tias qhov ntev ntawm hub yuav tsum yog 229 mm (9″) rau NPS 4 thiab me thiab 305 mm (12″) rau loj dua NPS 4. LWN flange yuav tsum yog muab nrog square txiav kawg tshwj tsis yog txwv tsis pub los ntawm tus neeg yuav khoom. Tshwj xeeb, qhov ntev ntev rau X (inch ntawm hub) yog (ntxiv rau 3.0 mm, -0.0 mm).
