Tus nqi pheej yig FORGED DUPLEX STAINLESS STEEL DIN 1.4410 ASME B16.5 1/2 - 24 900# RF FF RTJ LJ Flange Chaw tsim tshuaj paus hauv Suav teb

Name: Pheej yig FORGED DUPLEX STAINLESS STEEL DIN 1.4410 ASME B16.5 1/2 - 24 900# RF FF RTJ LJ Flange Chaw tsim tshuaj paus nyob rau hauv Tuam Tshoj Manufacturers thiab Hoobkas Tuam Tshoj - Customized Products Price - Huitong
Brand: HUITONG
SKU: 69652653

Hom: SO, SW, BL, BL, WN, LJ, Spectacle, Orifice ect.
Loj: 1/2 "-48", DN10-DN4000
Chav Kawm: 75 #-2500 #, PN6-PN100
Txuj: ASME, DIN, EN, JIS, BS

Xa kev nug

Zhengzhou Huitong Pipeline Equipment Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm tus nqi pheej yig forged duplex stainless hlau din 1.4410 asme b16.5 1/2 - 24 900# rf ff rtj lj flange chaw tsim tshuaj paus nyob rau hauv Suav teb. Peb sov siab txais tos koj los yuav peb cov nqi pheej yig forged duplex stainless hlau din 1.4410 asme b16.5 1/2 - 24 900# rf ff rtj lj flange chaw tsim tshuaj paus hauv Suav teb. Peb lub Hoobkas kuj lees txais cov kev txiav txim customized. Thov pub dawb kom txaus siab rau peb cov nqi sib tw thiab kev pabcuam zoo heev.

DUPLEX Stainless hlau 1/2 "{2}}" RF FF RTJ LJ Flange Chaw tsim tshuaj paus

2507 Flanges muaj cov ntsiab lus chromium ntau dua 24%, nrog rau 4% molybdenum, 7% npib tsib xee, thiab ntau lwm yam alloying. HT Yeeb Nkab (Zhengzhou Huitong Pipeline Equipment Co., Ltd.) yog cov chaw tsim khoom thiab chaw tsim khoom ntawm Super Duplex Steel 2507 flanges, muab ntau yam khoom flange hauv ntau yam tshwj xeeb thiab hom. ASME SA 182 Super Duplex Steel 2507 threaded flanges ua tau zoo tshaj plaws austenitic stainless hlau nyob rau hauv cov nqe lus ntawm corrosion kuj, kub tsis kam, oxidation kuj, thiab thermal conductivity. Peb ntiav ntau yam kev tsim khoom, suav nrog forging, threading, mechanical fastening, thiab deg txheej kho.

Cov kev ntsuas nominal siab rau flanges (tshwj xeeb yog Weld Neck flanges, lossis WN flanges) suav nrog: 150, 300, 400, 600, 900, 1500, thiab 2500.

Super Duplex 2507 Flange Loj Loj:

NPS 12 "mus rau 24" (DN300-DN600)

A182 F53 Khoom Corrosion Resistance

Cov qib siab ntawm molybdenum, chromium, thiab nitrogen tam sim no nyob rau hauv 2507 yeeb nkab flanges ua rau lawv muaj kev tiv thaiv zoo rau chloride-induced corrosion (tshwj xeeb pitting thiab crevice corrosion).
Tsis tas li ntawd, lawv cov qauv ferritic ua rau lawv pom qhov tshwj xeeb tiv thaiv kev ntxhov siab corrosion tawg hauv chloride- thaj chaw nplua nuj.
S32750 flanges kuj zoo tiv thaiv corrosion; lawv muab kev tiv thaiv tsis yog tsuas yog tawm tsam cov organic acids xwb-xws li formic acid thiab acetic acid-tab sis muaj kev sib npaug ntawm cov tshuaj inorganic acids (tshwj xeeb yog cov uas muaj chlorides).

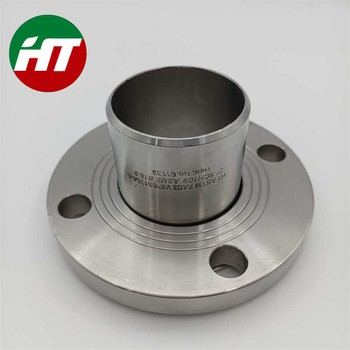

A182 S32750 Lap Joint Flange Manufacturer

Super Duplex 2507 / UNS S32750 Flanges Chemical Composition

Qib	S32750
C	0.030 max
Mn	1.20 max
Si	0.80 max
P	0.035 max
S	0.020 max
Cr	24.00 – 26.00
Mo	3.00 – 5.00
Ni	6.00 – 8.00
N	0.24 – 0.32
Fe	5 8.095m

Super Duplex 2507 / UNS S32750 Flanges Mechanical Properties

Qib	S32750
Qhov ceev (g / cm3)	7.8
Qhov ceev (lb / hauv 3)	0.281
Melting Point (zeeg)	1350
Melting Point (° F)	2460

Hu rau tam sim no

Dab tsi yog Hom Flange?

Weld caj dab (WN)

Slip On (SO)

Qhov muag tsis pom Flange (BL)

Threaded (Screwed) Flange

Qhov (socket) Weld Flange

Lap Joint Flange (LJ)

Ntev Weld Neck Flange

Chaw Haujlwm Flange

Spectacle Blinds Flange

A182 S32750 Flange Sealing Lub ntsej muag hom

RF (Raised Face): rau kev siv

FF (Lub ntsej muag tiaj tus): qis- cov ntawv thov siab

RTJ (Ring Type Joint): tseem ceeb rau 900# siab -siab

Peb cov chaw tsim khoom thiab cov chaw tsim khoom muab:

Chemical thiab Mechanical Test (Tensile, Hardness, Impact)
Metallographic Analysis (40-60% Ferrite Cov ntsiab lus)
Tsis yog-Kev kuaj puas tsuaj (NDT): Ultrasonic (UT), Sib Nqus Particle (MT), Penetrant (PT)
Ua raws li EN 10204 3.1 (MTC)

FAQ (Cov lus nug nquag nug)

Q1: Puas yog DIN 1.4410 tib yam li F53 / S32750?

A: Yog.1.4410 (DIN / EN) = F53 (ASTM A182) = UNS S32750. Lawv yog cov zoo tib yam super duplex stainless hlau qib.

Q2: Dab tsi yog RF thiab RTJ flange?

RF stands rau Raised ntsej muag; lub ntsej muag flange nta ib me ntsis tsa sealing nto.
RTJ stands rau Nplhaib hom Joint; lub sealing nto nta ib ncig groove.
RTJ flanges feem ntau muaj kev ntsuas siab dua li RF flanges.

Q3: Dab tsi yog qhov txawv ntawm RF thiab FF flanges?

Raised ntsej muag (RF) Flange: nta ib tug me ntsis tsa annular nto nyob ib ncig ntawm lub bore; haum rau tsawg- cov ntawv thov siab.
Lub ntsej muag tiaj tus (FF) Flange: nta ib qho chaw tiaj tus; haum rau nruab nrab - mus rau - cov ntawv thov siab.

Q4: Dab tsi yog RTJ hauv flanges?

A: RTJ flanges (Ring Type Joint flanges) tshwj xeeb yog tsim los rau siab -siab thiab/los yog siab -kub piping systems. Piv txwv li, lawv tsim nyog rau kev ua haujlwm nrog cov kev ntsuas siab ntawm Chav Kawm 600, 900, 1500 thiab siab dua. Lawv yog siv rau hauv kev lag luam roj thiab roj, kev lag luam offshore, siab - cov reactors siab thiab cov ntawv siv zoo sib xws.

Q5: DIN 1.4410 Duplex Stainless Hlau yog dab tsi?

A: DIN 1.4410 (2507 / S32750 / F53 / X2CrNiMoN25-7-4), super duplex stainless hlau, yog ob theem alloy uas muaj 50:50 ferrite-austenite microstructure.

Q6: Lub sijhawm khoom xa tuaj rau 12-24 "900 # flanges yog dab tsi?

A: Txheem qhov ntau thiab tsawg / foob ntsej muag:7-30 hnub. Custom Orders:20-40 hnubnyob ntawm seb muaj pes tsawg thiab specifications.

Q7: Koj puas muab MTRs thiab NDT qhia?

A: Yog. Txhua qhov kev txiav txim suav nrogDaim Ntawv Qhia Txog Khoom Siv Tag Nrho (MTR)thiab xav tau daim ntawv pov thawj NDT (UT/PT/MT) raws li cov qauv thoob ntiaj teb.

Author: Chloe Pu5 Xyoos kev txawj ntse hauv Stainless Hlau, Nickel Alloys & Carbon Steel Kev Lag Luam
