Duplex 2205 Spectacle Qhov muag tsis pom

Hom: SO, SW, BL, WN, LJ, Spectacle, Orifice ect.
Loj: 1/2"-48", DN10-DN4000
Chav Kawm: 75#-2500#, PN6-PN100
Txuj: ASME, DIN, EN, JIS, BS

Xa kev nug

Duplex 2205 Paddle Blind Spacer Nplhaib Spectacle Blind

Paddle dig muag - tseem hu ua spade dig muag, qhov muag tsis pom kev, kab dig muag, pancake dig muag, lossis plam qhov muag tsis pom - yog qhov tseem ceeb ntawm ib nrab ntawm qhov muag tsis pom kev. Lub qhov muag tsis pom paddle feem ntau yog tsim los ntawm ib qho khoom siv hlau thiab feem ntau yuav muaj qhov ntev ntawm cov hlau txuas mus rau ib qho kawg los siv los ua tus kov.

Duplex 2205 Flanges

Duplex 2205 flanges yog tsim los ntawm austenitic-ferritic stainless hlau, uas tau tsim los kom muaj zog dua thiab corrosion tsis kam tshaj 300 series stainless hlau.Duplex Flangepab cov neeg siv kom tsis txhob muaj kev ntxhov siab corrosion tawg uas feem ntau pom nrog 316 thiab 317. Duplex Steel 2205 Industrial Flanges muab cov txiaj ntsig zoo ntawm kev ntxhov siab corrosion cracking tsis kam thiab siab zog tau los ntawm kev ua ferritic alloy nrog rau nws cov peev xwm austenitic fabrication.

Spectacle dig muag hom

Muaj peb hom spectacle blinds:

Flat face spectacle dig muag (FF): zoo ib yam li lub ntsej muag tiaj tus flange, lub ntsej muag ntawm lub ntsej muag yog tiaj tus (tsim rau lub ntsej muag tiaj tus, rau cov ntawv siv qis).
Raised ntsej muag spectacle dig muag (RF): ib yam li tsa lub ntsej muag flanges, muaj ib tug ntxiv thickness ntawm lub disc. Hom no haum rau semi-metallic gaskets, raws li cov kauv qhov txhab hom.
Lub nplhaib sib koom ua ke lub ntsej muag pom qhov muag tsis pom (RTJ): qhov zawj yog sau rau ntawm qhov chaw ntawm lub disc. Hom no yog siv ua ke nrog lub nplhaib sib koom ua ke gaskets.

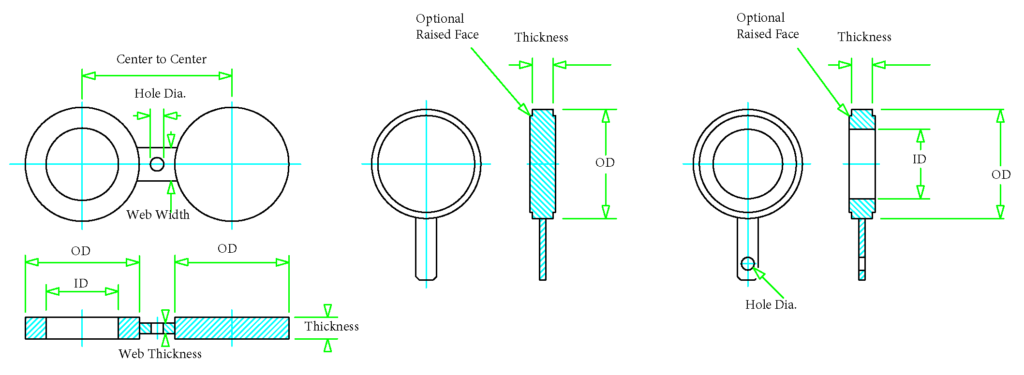

product-650-238

Chav Kawm 150 Spectacle Dimensions hauv MM

Spectacle Blind NPS Dimensions Chav Kawm 150	A	B	C	t	W
1/2	45	16	60	3	38
3/4	54	21	70	3	38
1	64	27	80	3	38
1¼	73	42	90	6.4	38
1½	83	48	100	6.4	38
2	102	61	120	6.4	51
2½	107	73	140	6.4	51
3	133	89	150	6.4	64
3½	159	102	175	9.7	64
4	172	114	190	9.7	64
5	194	141	215	9.7	76
6	219	168	240	12.7	76
8	276	219	300	12.7	76
10	337	273	360	15.7	102
12	406	324	430	19.1	102
14	448	356	475	19.1	108
16	511	406	460	22.4	108
18	546	457	580	25.4	114
20	603	508	635	28.4	121
24	714	610	750	31.8	140
