321 Flange
Forged Stainless hlau 321 flange thd flange Khoom lag luam lub npe ； thd flange Cov khoom siv: Stainless hlau 321 Txuj: ASME B16.5 Loj: 1/2 "-24"

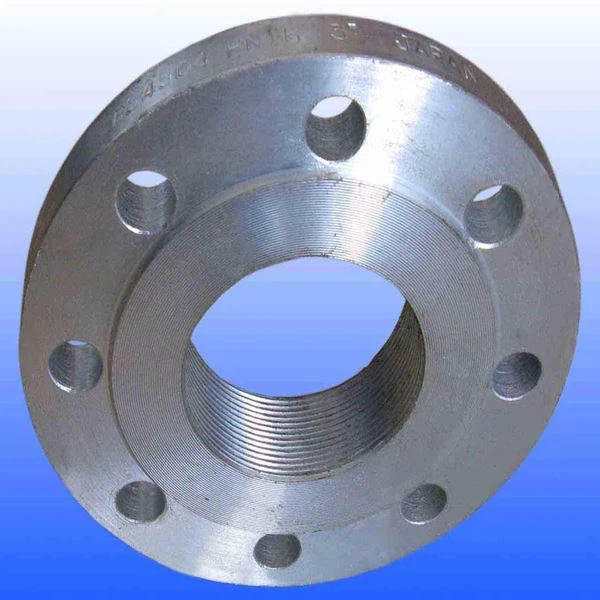

Forged Stainless hlau 321 flange thd flange

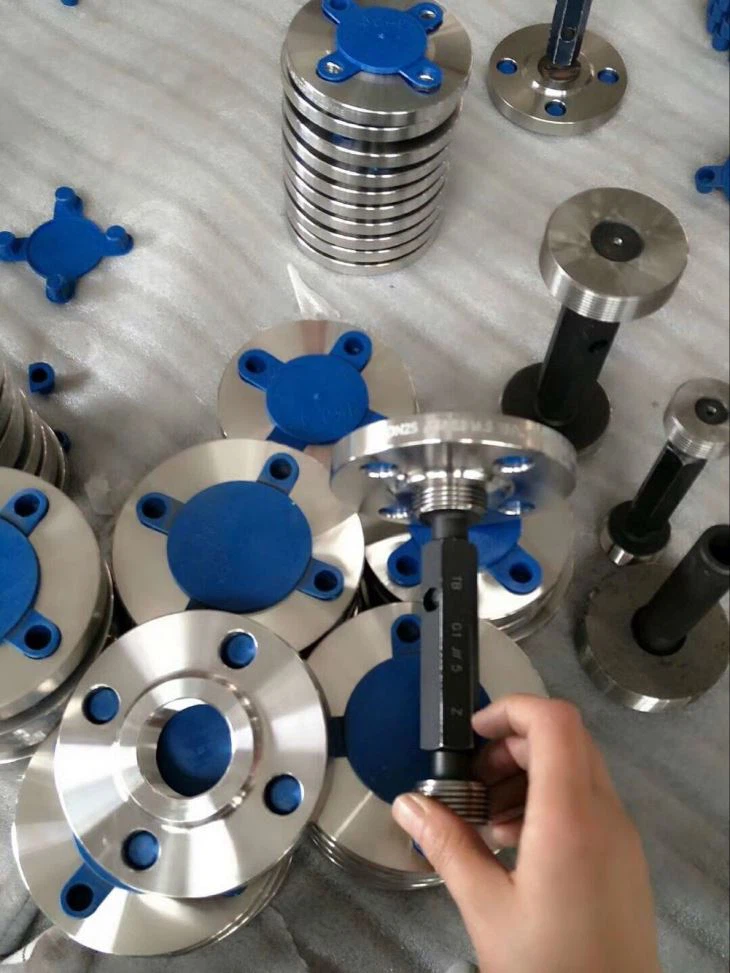

1.321 flange
Peb tau sib sau zoo nyob rau hauv kev ua lag luam, koom siab heev hauv qhov muab ntau ntawm Cov Hlau Stainless 321 Flanges uas yog dav siv hauv ntau yam lag luam. Cov khoom lag luam no tau tsim thiab tsim qauv siv zoo-ua raw cov khoom ua raws li kev lag luam zoo qauv& qauv. Cov flanges tau ua tsaug rau lawv qhov sturdiness thiab robustness. Dhau ntawm qhov no, peb kuj muab chaw tsim kho ntawm cov khoom no rau peb cov neeg siv khoom
2.
Tshuaj lom neeg muaj pes tsawg leeg:
| % | Cr | N | C | Si | Mn | P | S | N | Cov Ti | Fe |
| 321 | feeb: 17.0 | feeb: 9.0 | max: 0.08 | max: 0.75 | max: 2.0 | max: 0.045 | max: 0.03 | max: 0.10 | min: 5 * (C + N) | Sib npaug |
| max: 19.0 | max: 12.0 | max: 0.70 | ||||||||
| 321H | feeb: 17.0 | feeb: 9.0 | min: 0.04 | feeb: 18.0 | max: 2.0 | max: 0.045 | max: 0.03 | max: 0.10 | min: 5 * (C + N) | Sib npaug |
| max: 19.0 | max: 12.0 | max: 0.10 | max: 20.0 | max: 0.70 |
Cov Khoom Siv Tshuaj Ntawm 321 Stainless Hlau Flanges:
| Qib | C | Mn | Si | P | S | Cr | Mo | N | N | Lwm yam | |
| 321 |
min. max |
- 0.08 |
2.00 | 0.75 | 0.045 | 0.030 |
17.0 19.0 |
- |
9.0 12.0 |
0.10 |
Ti=5 (C + N) 0.70 |
Txhua Yam Khoom Ntawm 321 Stainless Hlau Flanges:
Cov cuab yeej txhua yam ntawm qib 321 Stainless Hlau Flanges tau tshwm rau hauv cov lus hauv qab no.
| Qib | Lub zog Tensile (MPa) min | Tos txais lub zog 0.2% Ntawv pov thawj (MPa) min | Elongation (% hauv 50mm) min | Lub Zog | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 321 | 515 | 205 | 40 | 95 | 217 |
Lub Cev Khoom Siv Ntawm 321 Stainless Hlau Flanges:
| Qib | Qhov ceev (kg / m3) | Elastic Modulus (GPa) | Qhov Npaum Li Cas Cov Khaub Ncaws Ntawm Kev Sib Tw Ntsuas (μm / m / ° C) | Kev Ntsuam Xyuas Ua Cua Sov (W / mK) | Qhov kub tshwj xeeb 0-100 ° C (J / kg.K) | Hluav Taws Xob Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | ntawm 100 ° C | ntawm 500 ° C | |||||
| 321 | 8027 | 193 | 16.6 | 17.2 | 18.6 | 16.1 | 22.2 | 500 | 720 |
3.Packaging kev qhia
Cim npe nrov: 321 flange, Suav teb, chaw tsim tshuaj paus, hoobkas, nqe, Mekas
