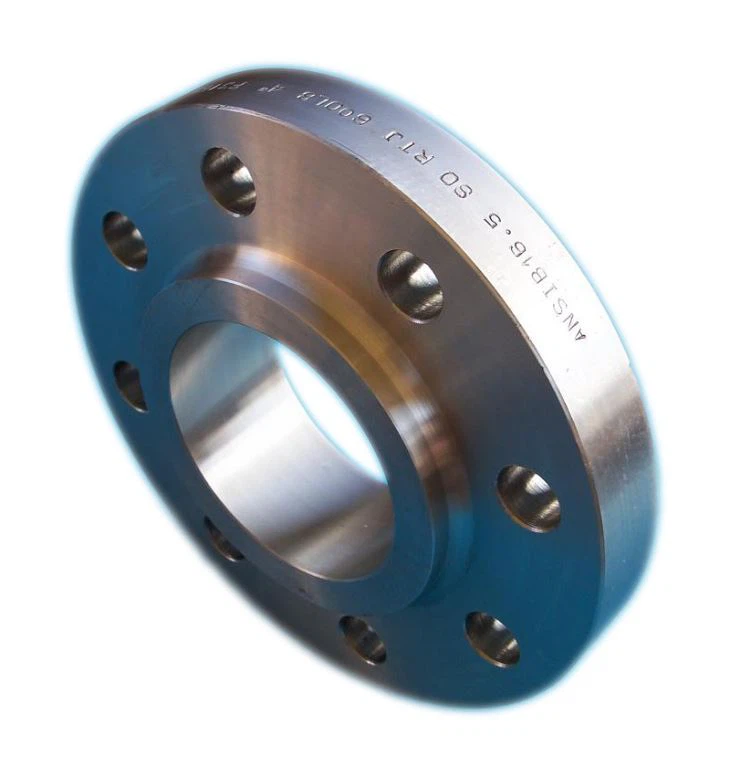

Stainless hlau 317 Yog li Flange
Hom: SO, SW, BL, BL, WN, LJ, Spectacle, Orifice ect.
Loj: 1/2"-48", DN10-DN4000
Chav Kawm: 75#-2500#, PN6-PN100
Txuj: ASME, DIN, EN, JIS, BS
ASME B16. UNS S31700 Forged Flange, Stainless Hlau 317 SO Flange, DIN 1.4449 Slip On Flange, UNS S31700 Slip On Flange, ASME SA182 SS 317 Flange.

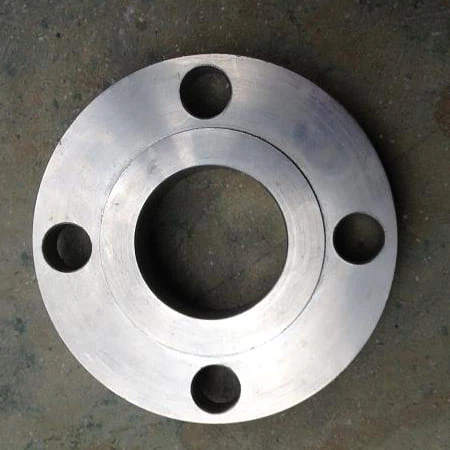

Stainless hlau 317 SO Flange:
ASME B16.5 1/2"-24"150#-2500# Stainless hlau 317yog ib hom tshwj xeeb ntawm flange siv hauv cov kav dej kom yooj yim sib dhos thiab disassembly. ThaumStainless hlau 317 SO Flangetsis yog feem ntau txuam nrog zawv zawg flanges, Kuv tuaj yeem muab rau koj nrog cov yam ntxwv dav dav ntawmASTM A182 SS 317 Slip On Flangesthiab cov yam ntxwv tseem ceeb ntawm 317 stainless hlau.
Cov yam ntxwv tseem ceeb ntawm Stainless Hlau 317 SO Flange:
1. Ob-Part Assembly:UNS S31703 Slip On Flangesmuaj ob lub ntsiab Cheebtsam: lub stub kawg thiab backing flange. Lub stub kawg feem ntau yog ua los ntawm cov khoom siv sib xws nrog cov yeeb nkab siv, thaum lub nraub qaum flange tuaj yeem ua los ntawm cov khoom sib txawv.
2. Rotatable Connection: Lub stub kawg ntawm aWERKSTOFF NR.1.4449 SO Flangetuaj yeem tig lossis xaub hla cov yeeb nkab, tso cai rau kev sib dhos yooj yim thaum lub sijhawm teeb tsa. Qhov no tshwj xeeb tshaj yog pab tau thaum aligning yeeb nkab uas tej zaum yuav muaj me ntsis misalignment los yog axial txav.
1. Stainless hlau 317 SO Flange Technical Data Sheet
|
Chemical Composition Limits |
||||||||||
|
Qhov hnyav% |
C |
Mn |
Si |
Cr |
Ni |
Mo |
P |
S |
N |
Fe |
|
317 |
0.08 max |
2 0 max |
0.75 max |
18-20 |
11-15 |
3-4 |
0.045 |
0.030 max |
0.10 max |
Bal |
|
317L |
0.030 max |
2 0 max |
0.75 max |
18-20 |
11-15 |
3-4 |
0.045 |
0.030 max |
0.10 max |
Bal |
2. Cov cuab yeej cuab yeej cuab tam
|
Khoom siv |
Qhov kawg Tensile zog (Mpa) |
0.2% Yield zog (Mpa) |
% Elongation hauv 2 " |
Rockwell B Hardness |
|
Alloy 317 |
515 |
205 |
35 |
95 |
|
317L hlau |
515 |
205 |
40 |
95 |
|
Yam tsawg kawg nkaus Mechanical Properties los ntawm ASTM A240 thiab ASME SA 240 |
||||
