Incoloy 800H Yeeb Nkab|ASTM B407 UNS N08810 Tus neeg muab khoom
1. Hom: Seamless, Welded
2. OD: 1/2 "-48"
3. Thickness: SCH5-SCHXXS
4. Ntev: 0-12M, Customized
5. Txheej Txheem: Kub / Cold Rolled, Kub ua haujlwm, Txias kos
Zhengzhou Huitong Pipeline Equipment Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm Incoloy 800H Pipeline|ASTM B407 UNS N08810 Tus neeg muag khoom hauv Suav teb. Peb zoo siab tos txais koj los yuav peb Incoloy 800H Yeeb Nkab|ASTM B407 UNS N08810 Tus neeg muab khoom. Peb lub Hoobkas kuj lees txais cov kev txiav txim customized. Thov pub dawb kom txaus siab rau peb cov nqi sib tw thiab kev pabcuam zoo heev.

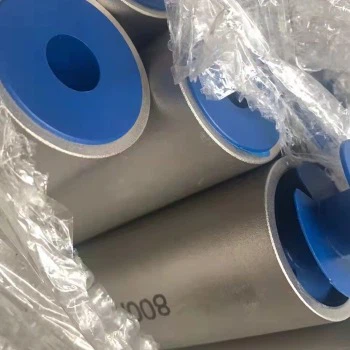

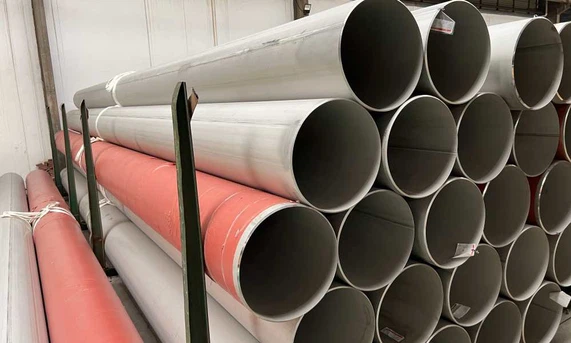

Incoloy 800H Yeeb Nkab UNS N08810|ASTM B407 High Temperature Nickel Alloy Pipe Supplier
Incoloy 800H (UNS N08810) yog npib tsib xee- hlau-chromium alloy tsim tshwj xeeb rau kev siv siab - kub. Nws yog engineered rau huab cua kub ib puag ncig (txog 982 degree). Incoloy 800H yeeb nkab nqi yog li ntawm $ 20– $ 45 / kg hauv 2026. Nws muaj kev nkag siab zoo tshaj - tawg lub zog thiab oxidation tsis kam hauv petrochemical thiab thermal ua lag luam.

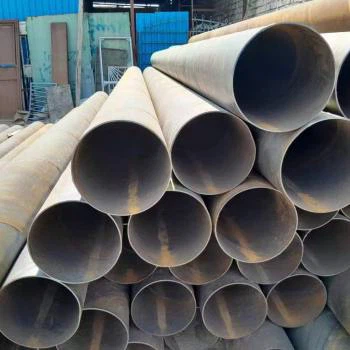

Incoloy 800H Tube, tseem hu ua Alloy 800H los yog UNS N08810 los yog DIN W.Nr. 1.4958. Nrog ntau cov pa roj carbon ntxivKev 800. Cov hlau no yog cua sov- kho kom muab qhov zoo tshaj plaws ntawm cov nplej. Txhim kho nws txoj kev nkag siab thiab kev ntxhov siab- cov khoom tawg ntawm qhov kub siab tshaj 600℃.
Incoloy 800H Pipe Nqe List (2026)
| Hom | Loj | Teem caij | Nqe |
| Incoloy 800H Seamless Yeeb Nkab | 1/2"–2" | SCH 40 | $ 18 - $ 32 / kg |
| Incoloy 800H Seamless Yeeb Nkab | 3"–6" | NWS 40/80 | $ 20 - $ 35 / kg |
| Incoloy 800H Loj Diameter Pipe | 8"–48" | SCH 80+ | $ 22 - $ 40 / kg |
| Incoloy 800H welded yeeb nkab | 1/2"–24" | SCH 10–40 | $15-$30/kg |
| ASTM B407 Incoloy 800H yeeb nkab | Kev cai | Kev cai | FOB $30,000-$38,000/ton |
Peb cov chaw tsim khoom tsim ASTM B407 UNS N08810 yeeb nkab thiab tuaj yeem muab cov khoom txias- tiav lossis kub- cov ntawv tiav,Tiv tauj peb.
Incoloy 800H yeeb nkab yog dab tsi?
Incoloy 800H yeeb nkab yog siab -kub npib tsib xee- hlau-chromium alloy yeeb nkab tsim los ntawmASTM B407 / ASME SB 407 Cov khoom sivspecifications. Nws belongs rau tsev neeg Incoloy 800, suav nrog800, 800H (UNS N08810), thiab 800HT (UNS N08811).
Qhov sib txawv tseem ceeb ntawm tus qauv Incoloy 800 thiab 800H yog cov tswj cov ntsiab lus carbon thiab cov qoob loo loj. Incoloy 800H yog tsim los txhim khocreep kuj, kev ntxhov siab tawg lub zog, thiab cov qauv ruaj khov siab tshaj 600 degree.
Zhengzhou Huitong Pipeline Equipment Co., Ltd. Daim ntawv pov thawj:
✅ ISO 9001: 2015
✅ MTC 10204 3.1 3.2
✅ 100% PMI (Positive Material Identification)
✅ Ultrasonic Testing (Rau ASME VIII)
✅ Thib peb-Kev Tshawb Fawb (SGS/BV/DNV/LR)
✅ NACE MR0175 / ISO 15156
ASTM B407 UNS N08810 Seamless Tubes Applicaiton:
- Kev lag luam tshuaj
- Sulfuric Acid Thauj Piping thiab Cia Tank
- Phosphoric acid evaporator thiab cov khoom siv concentration
- Pickling tank rhaub thiab pickling kab ntaus ntawv
- Khib cua sov boiler thiab cua sov kho cua sov kav kav
- Nuclear power steam generator heat transfer tube
- Electrostatic precipitator electrode rau thee- hluav taws xob hluav taws xob cog
- Khib cua sov rov qab system kub kub yeeb nkab
Incoloy 800H Khoom Specification
| Specification | ASTM B163 / ASTM B407 / ASTM B423 / ASME SB163 / ASME SB407 / ASME SB423 |
| Hom | Cold Drawn Seamless / Welded / ERW / EFW |
| Sab Nraum Loj | Seamless - 1/4 "NB rau 6" NB (Nominal Bore Size) |
| Welded / ERW- 1" NB txog 16 "NB (Nominal Bore Size) | |
| Phab ntsa Thickness | Teem caij 10 txog Teem caij 160 |
| Ntev | 5 mus rau 7 Meters, 09 mus rau 13 Meters, Tib Random Length, Ob Chav Random Length Thiab Customize Size. |
| Cov yeeb nkab kawg | Plain Ends / Beveled Ends |
| Kev Xa Khoom | Raws li Rolled, Txias Drawn, Kub Tiav, Stress Relieved, Annealed, Hardened, Tempered |
| Kev sim | NACE MRO175, Hardness Test, Flare, Hydrostatic Test, Eddy Tam sim no xeem, Grain Size Test, Eddy Current, Annealed, Tempered, Stress Relieved thiab lwm yam. |
Tshuaj muaj pes tsawg leeg
- Nickel (Ni): 30.0% -35.0%
- Chromium (Cr): 19.0% -23.0%
- Hlau (Fe): seem
- Cov pa roj carbon (C): 0.05% -0.10%
- Aluminium (Al) + Titanium (Ti): 0.85% - 1.20%
- Manganese (Mn) Tsawg dua lossis sib npaug li 1.5%, silicon (Si) Tsawg dua lossis sib npaug li 1.0%, sulfur (S) Tsawg dua lossis sib npaug li 0.015%
Mechanical Properties
| Tensile zog | Ntau dua lossis sib npaug li 450 MPa |
| Yield zog | Ntau dua lossis sib npaug li 170 MPa |
| Elongation | Ntau dua lossis sib npaug li 30% |
| Melting Range | 1357-1385 degree |
| Qhov ntom | 7.94 g / cm³ |
"Qhov kev pabcuam siab tshaj plaws rau Incoloy 800H yeeb nkab yog dab tsi?"
Incoloy 800H (UNS N08810) nta tswj, siab dua carbon cov ntsiab lus ntau (0.05–0.10%) thiab coarser grain loj, tshwj xeeb tsim los optimize creep- tawg lub zog ntawm qhov kub siab tshaj 1100℃F (593℃).
Mechanical Properties at Elevated Temperature
| Kub | Tensile zog | Creep Resistance |
| 25 degree | 500-600 MPa | Tsis tseem ceeb |
| 600 degree | ~ 350 MPa | Nruab nrab |
| 700 degree | ~ 250 MPa | Siab |
| 800 degree | ~ 180 MPa | Qhov tseem ceeb tsim ntau yam |
Corrosion Resistance
Resistant rau:
- Oxidation (cua, oxygen{0}}ib puag ncig nplua nuj)
- Carburization (hydrocarbon cracking rauv)
- Nitriding cua
- Chav oxidation
Tsis muaj zog tiv thaiv:
- Pitting corrosion (chlorides)
- Crevice corrosion nyob rau hauv seawater
- Muaj zog acids (HCl, H2SO4 ntawm siab concentration)
Incoloy 800H tsis yog tsim los rau dej hiav txwv lossis chloride- ib puag ncig hnyav. Nws lub zog nyob hauv siab -kub corrosion kuj.
Incoloy 800H yeeb nkab ntau thiab tsawg
| Nominal loj [inch] | Sab nraud txoj kab uas hla (OD) [inches] | Sab nraud txoj kab uas hla (OD) [mm] | Phab ntsa thickness [inch] | Phab ntsa thickness [mm] | Qhov hnyav [lb/ft] | Qhov hnyav [kg / m] |
| 1/8" NPE 6 | 0.41 | 10.3 | 0.068 | 1.73 | 0.24 | 0.37 |
| 1/4" NPE 8 | 0.54 | 13.7 | 0.088 | 2.24 | 0.42 | 0.63 |
| 3/8" NPE 10 | 0.68 | 17.1 | 0.091 | 2.31 | 0.57 | 0.84 |
| 1/2" NPS 15 | 0.84 | 21.3 | 0.109 | 2.77 | 0.85 | 1.27 |
| 3/4" NPE 20 | 1.05 | 26.7 | 0.113 | 2.87 | 1.13 | 1.69 |
| 1" NPO 25 | 1.32 | 33.4 | 0.133 | 3.38 | 1.68 | 2.5 |
| 1 1/4" NPS 32 | 1.66 | 42.2 | 0.14 | 3.56 | 2.27 | 3.39 |
| 1 1/2" NPS 40 | 1.9 | 48.3 | 0.145 | 3.68 | 2.72 | 4.05 |
| 2" NPE 50 | 2.375 | 60.3 | 0.154 | 3.91 | 3.65 | 5.44 |
| 2 1/2" NPS 65 | 2.875 | 73 | 0.203 | 5.16 | 5.79 | 8.63 |
| 3" NPE 80 | 3.5 | 88.9 | 0.216 | 5.49 | 7.58 | 11.29 |
| 3 1/2" NPS 90 | 4 | 101.6 | 0.226 | 5.74 | 9.11 | 13.57 |
| 4" NPO 100 | 4.5 | 114.3 | 0.237 | 6.02 | 10.79 | 16.07 |
| 5" NPO 125 | 5.563 | 141.3 | 0.258 | 6.55 | 14.62 | 21.77 |
| 6" NPE 150 | 6.625 | 168.3 | 0.28 | 7.11 | 18.97 | 28.26 |
| 8" NPE 200 | 8.625 | 219.1 | 0.322 | 8.18 | 28.55 | 42.55 |
| 10" NPE 250 | 10.75 | 273 | 0.365 | 9.27 | 40.48 | 60.31 |
| 12" NPE 300 | 12.75 | 323.8 | 0.406 | 10.31 | 53.52 | 79.73 |
| 14" NPO 350 | 14 | 355.6 | 0.437 | 11.13 | 54.57 | 94.55 |
| 16" NPE 400 | 16 | 406.4 | 0.5 | 12.7 | 82.77 | 123.3 |
| 18" NPE 450 | 18 | 457 | 0.562 | 14.27 | 104.67 | 155.8 |
| 20" NPE 500 | 20 | 508 | 0.594 | 15.09 | 123.11 | 183.42 |
| 24" NPE 600 | 24 | 610 | 0.688 | 17.48 | 171.29 | 255.41 |
| 32" NPE 800 | 32 | 813 | 0.688 | 17.48 | 230.08 | 342.91 |
Incoloy 800H sib npaug
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Incoloy 800 H | 1.4958 / 1.4876 | N08810 | NCF 800 H | NA 15 (H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 |
Vuam txheej txheem
- Pom zoo tungsten argon arc vuam (GTAW), roj shielded arc vuam (GMAW) los yog plasma vuam, kom tsis txhob muaj pa oxygen thiab nitrogen.
- Cov khoom siv muab tub lim: yuav tsum siv cov khoom sib xyaw ntawm cov hlau sib xws (xws li ERNiCr-3)
- Ua ntej- cua sov feem ntau tsis tas yuav tsum tau, tab sis qhov kub ntawm qhov sib cuam tshuam yuav tsum tau khaws cia qis dua 150℃kom tsis txhob kub tawg.
- Tom qab-welding kev kho mob: annealing ntawm tuab-walled workpieces (1050-1100 degree) kom tshem tawm vuam kev nyuaj siab
| Qhov teeb meem | Ua rau | Kev daws |
| Kub tawg | High Ni + thermal stress | Tswj cua sov input |
| Cov qoob loo loj hlob | Kub kub vuam | Ncej -weld tswj |
| Distortion | Tsawg thermal conductivity | Kev kho kom raug |
Thermal Expansion
- 20-100 degree: 12.0 × 10-⁶ / degree
- 20-500 degree: 13.5 × 10-⁶ /℃Piv nrog cov pa roj carbon zoo tib yam,Incoloy 800H yeeb nkabmuaj qis thermal expansion thiab muaj zog stability.
Daim Ntawv Thov Kev Lag Luam (Kev Siv Hluav Taws Xob tiag tiag)
1. Petrochemical Reformers
Steam methane reforming (SMR) raj
Hydrogen ntau lawm units
Tawm: 700-900℃carburizing roj
2. Ethylene Cracking Rauv
Coil tubing systems
Radiant raj
High thermal cycling kuj yuav tsum tau
3. Kev tsim hluav taws xob
Superheater tubing
Boiler reheaters
Thaum tshav kub kub rov qab chav generators (HRSG)
4. Muaj cua sov kho rauv
Annealing furnaces
Rotary kiln liner
Thermal processing Chambers
Seamless yeeb nkab vs Welded yeeb nkab
- Seamless yeeb nkab yog tsim los ntawm kub extrusion los yog txias kos duab tsis muaj welded pob qij txha. Zoo dua tensile zog, qaug zog lub zog thiab creep kuj.
- Welded yeeb nkab txheej txheem yog yooj yim, haum rau loj txoj kab uas hla los yog nyias phab ntsa yeeb nkab xav tau, tus nqi yog feem ntau 20% ~ 40% qis dua seamless yeeb nkab.
Incoloy 800H vs Incoloy 800HT vs Stainless hlau 316
| Khoom / Feature | Incoloy 800 H | Incoloy 800 HT | Stainless hlau 316 |
| UNS Number | N08810 | N08811 | S31600 |
| Cov ntsiab lus carbon | 0.05–0.10% | 0.06–0.10% | Tsawg dua lossis sib npaug li 0.08% |
| Kev kho cua sov | Tshuaj annealed | Tshuaj annealed + tswj grain loj | Tshuaj annealed |
| Loj Loj | ASTM Tsis yog . 5 lossis coarser | ASTM Tsis muaj . 5 lossis coarser (tswj nruj) | Cov nplej zoo |
| Qhov kub siab tshaj plaws | ~ 982℃(2000℃F) | ~ 1150℃(2100℃F) | ~ 870℃(1600℃F) intermittent |
| Oxidation Resistance | Zoo heev | Zoo heev | Zoo |
| Carburization Resistance | Zoo heev | Superior | Nruab nrab |
| Creep Repture Strength | Siab | Siab tshaj ntawm 800 series | Tsawg heev |
600-900℃→ Incoloy 800H feem ntau nyiam; Saum toj no 900℃nrog hnyav creep → xav txog 800HT los yog Inconel alloys.
Incoloy 800H VS Stainless 310S VS 316L Temp Resistance
| Feature | Incoloy 800 H | Stainless hlau 310S | Stainless hlau 316L |
| Max Temp Resistance | 982 degree | 1050 degree | 800 degree |
Alloy 800 Vs 800H
800H (UNS N08810) yog qhov ua kom zoo dua ntawm Incoloy 800; nws cov ntsiab lus carbon yog nruj tswj hwm ntawm 0.05% thiab 0.10%, thiab nws dhau mus siab -kub annealing kom ua tiav cov qauv coarser nplej (ASTM No. 5 lossis coarser). Qhov kev hloov kho microstructural no ua rau muaj txiaj ntsig zoo rau cov khoom siv lub zog creep rupture thaum lub sij hawm ntev - kev pabcuam ntawm qhov kub siab tshaj 600 degree, ua rau nws zoo tagnrho rau kev siv xws li petrochemical cracking furnace tubes thiab heater tubes.
Kev Paub Txog Engineering tiag tiag thiab teeb meem
Refinery Rauv Tubes Case
Hauv ethylene cracking furnaces, engineers feem ntau qhia tias:
316 stainless hlab tsis nyob rau hauv lub hlis nyob rau hauv thermal cycling
Incoloy 800H ncua kev pab cuam lub neej mus rau 3-8 xyoo nyob ntawm kev ua haujlwm nyuaj
Peb siv 800-series alloy, yog li vim li cas nws tsis ua haujlwm?
Feem ntau, nws los rau qhov sib txawv me ntsis ntawm Incoloy 800 thiab 800H. Nws tsis yog cov khoom siv xwb -nws yog qhov nws tau kub li cas- kho thiab nws ua li cas nws tswj cov kev ntxhov siab hauv koj qhov chaw tshwj xeeb.
Common Field Issues Tshaj Tawm:
1. Kev npaj txhij txog creep deformation nyob rau hauv cov tub rauv
Ua rau: siv tus qauv 800 tsis yog 800H
2. Weld tawg thaum lub sij hawm kaw
Yog vim li cas: tsis zoo muab tub lim xaiv
3. Scaling thiab oxidation ntawm 750℃+
Ua rau: tsis txaus alloy thickness los yog qib tsis raug
Yuav ntsuas li cas siab -kub oxidation thiab carburization tsis kam ntawm Incoloy 800H kav hauv petrochemical chav hloov pauv?
Hauv chav methane hloov kho (SMR) thiab kev ua haujlwm ntawm lub cub tawg, cov chromium - nplua nuj oxide zaj duab xis nyob rau saum npoo ntawm 800H piping zoo inhibits sab hauv diffusion ntawm carbon atoms. Kev ntsuam xyuas yuav tsum tsom mus rau qhov kub thiab txias hloov pauv, cov pa roj carbon zoo ntawm cov cua, thiab cov phab ntsa thickness uniformity los xyuas kom meej tias qhov tsis ua hauj lwm ntxov vim oxide scale spallation tsis tshwm sim thaum lub sij hawm siab - kub thermal cycling.
Puas yog koj tab tom qhia txog txoj cai "H-Qib" rau koj daim ntawv thov siab -temp?
Kuv tau pom ntau txoj haujlwm ua rau muaj kev cuam tshuam rau kev yuav khoom lossis, qhov phem dua, kev ua haujlwm tsis zoo vim tias tsis muaj qhov pom tseeb ntawm cov kev txwv carbon thiab cov qoob loo loj. Ntawm 1100℃F thiab siab dua, chemistry tseem ceeb:
✅ 800H (UNS N08810): Tswj cov pa roj carbon monoxide rau kev nkag siab zoo dua.
✅ 800HT (UNS N08811): Txwv Al+Ti qib kom muaj kev ntxhov siab ntau tshaj - kev ua haujlwm tawg.
Cov tswv yim engineers:
- Nco ntsoov xyuas UNS N08810 (800H) vs N08800 (800)
- Tsis txhob hloov cov hlau tsis muaj steel 310S rau lub sijhawm ntev - qhov kev pab cuam rauv taws
- Tswj thermal cycling tus nqi thaum pib / kaw
Xav tau kev pab tshawb nrhiav ASME cov cai yuav tsum tau lossis tswj cov sij hawm ua cov hmoov txhuas rau cov high -nickel alloys? Wb sib txuas.
Cov qauv tsim nyog
- ASTM B407 Seamless Yeeb Nkab & Tube
- ASME SB407 Kev Siv Khoom Siv Siab
- ASTM B515 Welded yeeb nkab
- ASTM B775 Kev kam rau ua
- EN 10204 Cov ntaub ntawv pov thawj
FAQ:
Q: Tus nqi ntawm Incoloy 800H yeeb nkab nyob rau hauv 2026 yog dab tsi?
A: Incoloy 800H yeeb nkab nqi feem ntau yog nyob ntawm $ 20 thiab $ 55 ib kg nyob ntawm qhov loj, lub sij hawm, thiab seamless lossis welded hom.
Q: Qhov txawv ntawm Incoloy 800H thiab 800HT yog dab tsi?
A: Incoloy 800HT muaj kev tswj nruj dua ntawm titanium thiab txhuas, muab kev nkag siab zoo dua ntawm qhov kub siab.
Q: Qhov twg yog Incoloy 800H yeeb nkab feem ntau siv?
A: Nws yog feem ntau siv rau hauv cov nroj tsuag petrochemical, rauv, hluav taws kub exchangers, thermal ua tshuab, thiab cov chaw tsim hluav taws xob.
Q: Puas yog Incoloy 800H haum rau dej hiav txwv?
A: Tsis yog. Thaum nws tiv taus qhov kub thiab txias, nws tsis zoo rau chloride -induced pitting. Rau dej hiav txwv, nrhiavDuplexlos yog Super Duplex qib.
Q: Puas yog 800H xav tau tshwj xeeb vuam?
A: Yog lawm, nws yuav tsum tau muab cov hlau sib xyaw ua ke (feem ntau ERNiCr-3) kom muaj kev ncaj ncees ntawm thaj chaw muaj kev kub ntxhov.
Q: Koj lub sijhawm khoom xa tuaj ntev npaum li cas?
Q: Puas muaj Kev Pabcuam Qauv?
Q: Yam tsawg kawg nkaus Order Quantity yog dab tsi?
Q: Yuav ntim cov khoom li cas?
Q: Lub teb chaws xa tawm
Q: Peb puas tuaj yeem tuaj xyuas koj lub Hoobkas?
A: Tau kawg, koj ib txwm txais tos!
