ASTM B423 B474 B704 B705 UNS N08825 Inconel 825 Seamless Welded Yeeb Nkab
Hom: Seamless, Welded
OD: 1/2"-48"
Thickness: SCH5-SCHXXS
Ntev: 0-12M, Customized
Txheej Txheem: Kub / Cold Rolled, Kub ua haujlwm, Txias kos

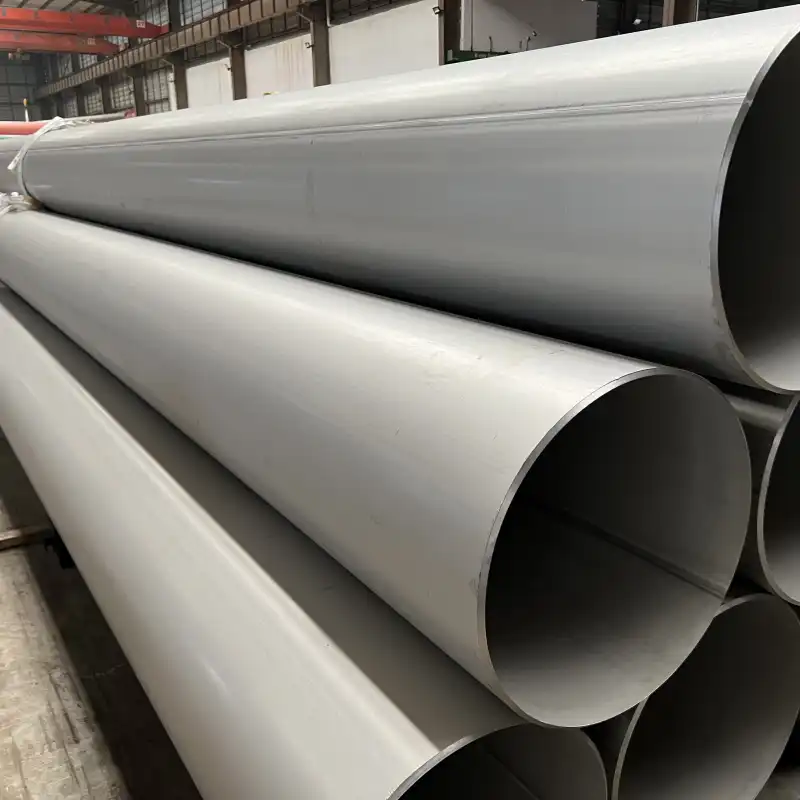

ASTM B423 B474 B704 B705 UNS N08825 Inconel 825 Seamless Welded Yeeb Nkab
1. Inconel 825, Incoloy 825 los yog UNS N08825 hu ua "Nickel Alloy 825" yog cov nickel-hlau-chromium alloy nrog me me ntawm molybdenum, tooj liab thiab titanium.
Nyob rau tib lub sijhawm, Incoloy 825 Yeeb Nkab yog ua los ntawm cov kev xaiv zoo tshaj plaws rau cov chaw hnyav. Incoloy WERKSTOFF NR. 2.4858 Cov yeeb nkab yog qhov tseem ceeb heev hauv kev hloov huab cua, tshwj xeeb tshaj yog nyob rau hauv dav dav thiab hauv cheeb tsam corrosion. Incoloy Alloy 825 EFW Yeeb Nkab hauv kev lag luam xws li kev lag luam tshuaj, kev ua haujlwm pickling, tswj kev ua qias tuaj, acid ntau lawm, nuclear roj reprocessing, thiab radioactive pov tseg.
ASME SB 423 UNS N08825 cov kav dej tsim tau raug sim rau ntau yam khoom siv xws li tensile thiab yield zog, elongation nrog rau ob qho tib si tsis muaj kev puas tsuaj hluav taws xob thiab kev ntsuas hydrostatic. Cov kub ua tiav lossis txias ua haujlwm ASTM B423 UNS N08825 cov kav dej tau zoo tsim nyog rau kev siv hauv cov ntawv thov uas xav tau rau cov khoom siv dav dav. Tsis tu ncua welded kav yog raug rau intergranular corrosion.
Tsis tas li ntawd, qhov tseem ceeb tshaj plaws ntawm cov hlau no yog qhov Inconel 825 Welded Yeeb Nkab tuaj yeem tiv taus ib puag ncig uas ua rau corrosion, xws li pitting lossis kev ntxhov siab cuam tshuam. Alloy 825 Pipe ua tau zoo hauv kev txo cov kua qaub xws li sulfuric thiab phosphoric acid.
2. Incoloy 825 Seamless Welded Pipes Tubes Specifications
Specifications | ASTM B423 / ASME SB 423 |
Qhov ntev | ASTM, ASME thiab API |
Seamless 825 Pipes | 4-219mm WT: 0.5 mus rau 20mm |
Welded 825 Pipes | 5. 0 hli - 1219.2 mm |
EFW 825 Pipes | 5. 0 hli - 1219.2 mm |
Loj | 15 "NB rau 150" NB IN |
Tshwj xeeb hauv | Loj Diameter Loj |
Teem caij | SCH5, SCH10, SCH40, SWB, SCH80, SCH160 |
Hom | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Daim ntawv | Hloov, Hydraulic thiab lwm yam |
Ntev | Ib qho Random, Ob Chav Random & Txiav Ntev. |
Xaus | Plain End, Beveled kawg, Treaded |
3. Hom Inconel 825 Seamless Welded Pipes Tubes
Incoloy 825 Seamless Yeeb Nkab | Incoloy 825 Seamless Yeeb Nkab |
Incoloy 825 welded yeeb nkab | Incoloy 825 welded yeeb nkab |
Incoloy 825 Round yeeb nkab | Incoloy 825 Round yeeb nkab |
Kev cai Incoloy 825 Yeeb Nkab | Incoloy 825 Custom Pipe |
4. Lwm cov yeeb nkab raj peb muaj
Hom | Seamless Yeeb Nkab & Tube | SAW / ERW / EFW Yeeb Nkab & Tube | ||
Xaus | BE (Beveled kawg) | PE (Plain End) | ||
Loj | OD 1/2 "~ 48" | Thickness SCH5 ~ SCHXXS | Ntev Raws li tus neeg siv khoom xav tau. | |
Kev tsim khoom | Kub dov | Kub ua hauj lwm | Txias dov | txias txias |
Tsim Txuj | ASME B36.10 | ASME B36.19 | ||
Khoom Qib | Nickel Alloy | ASTM B 474 Cov khoom siv | UNS N02200/Ni 200, UNS N02201/Ni201, | |
ASTM B 161 | UNS N02200/Ni 200, UNS N02201/Ni201 | |||
ASTM B 163 | UNS N02200/Ni 200, UNS N02201/Ni201, | |||
ASTM B165 | UNS N04400 / Monel 400 | |||
ASTM B 407 Cov khoom siv | UNS N08800 / Incoloy 800, UNS N08810 / Incoloy 800H, | |||
ASTM B729 Cov khoom lag luam | UNS N08020 / Alloy 20 | |||
ASTM B 444 3 | UNS N06625 / Inconel 625 , UA | |||
ASTM B 423 3 | UNS N08825 / Incoloy 825 | |||
ASTM B464 | UNS N08020 / Alloy 20 | |||
ASTM B 622 2 | UNS N10665/Hastelloy B2, UNS N10675/Hastelloy B3, | |||
Duplex Hlau | ASTM A789 Cov Lus Qhia Tshwj Xeeb | S31803,S32205,S32750, S32760 | ||
ASTM A790 Cov Lus Qhia Tshwj Xeeb | S31803,S32205,S32750, S32760 | |||
Stainless hlau | ASTM A 312 Cov Lus Qhia | TP304, TP304L, TP316, TP316L, 316Ti, TP317, TP317L, | ||
ASTM A 213 | TP304, TP304L, TP316, TP316L, 316Ti TP317, TP317L, TP321, TP310S, TP347, S31254, | |||
ASTM A 269 Cov Lus Qhia | TP304, TP304L, TP316, TP316L, TP317, TP317L, TP321, | |||
ASTM B 676 6 | N08367 | |||
ASTM B 677 Cov khoom lag luam | UNS N08925, UNS N08926 | |||
Hlau alloy | ASTM A333 Cov khoom lag luam | Qib 3, Qib 6, Qib 8, Qib 9 | ||
ASTM A335 Cov Lus Qhia Tshwj Xeeb | P5,P9,P11,P12,P22,P91,P92 | |||
Carbon Steel | ASTM A106 / A53 | GR.B | ||
API 5L | GRB, X42, X46, X52, X56, X60, X65, X70 PSL1 & PSL2 | |||
5. Hais txog Inconel 825
825 Incoloy Alloy Pipes Chemical Composition
Qib | C | Mn | Si | Fe | S | Cr | Cu | Ti | |
825 | min. | – | – | – | 22.0 | – | 19.5 | 1.5 | 0.6 |
max. | 0.05 | 1.0 | 0.5 | – | 0.015 | 23.5 | 3.0 | 1.2 | |
Incoloy Alloy 825 Yeeb Nkab Mechanical Properties
Qib | Tensile zog (MPa) min | Yield zog 0.2 feem pua Pov thawj (MPa) min | Elongation (feem pua hauv 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
825 | Psi – 80, 000, MPa – 550 | Psi – 32, 000, MPa – 220 | 30 | – | – |
6. Qib sib npaug rau 825 Incoloy Pipe
Qib | UNS No | Laus British | Euronorm | GOST | Japanese JIS | ||
BS | En | Tsis muaj | AFNOR | ||||
lus 825 | N08825 | NA 16 | NiCr21Mo | 2.4858 | NFE30C20DUM | ЭП703 | SIB 825 |
7. Incoloy 825 Seamless / Welded Pipes Application Industries
Off-Shore Roj Drilling tuam txhab uas muag
Lub zog tiam
Petrochemicals
Kev ua pa roj
Tshwj xeeb tshuaj
Pharmaceuticals
Cov Khoom Siv Tshuaj
Cov Khoom Siv Tshuaj
Cov Khoom Siv Dej Hiav Txwv
Thaum tshav kub kub Exchangers
Condenser
Pulp thiab Ntawv Kev Lag Luam
8. Incoloy 825 Pipes Ntim
Incoloy 825 Seamless Yeeb Nkab tuaj yeem ua rau liab qab lossis coated thiab nrog qhov kawg. Cov kav dej mus txog 3 "OD yuav muab nkag rau hauv pob khoom, txhawm rau tiv thaiv xeb thaum lub sijhawm xa khoom hauv hiav txwv, bundles ntawm Incoloy 825 Seamless Yeeb Nkab tuaj yeem muab qhwv nrog cov ntawv polypropylene, thiab ruaj khov nrog cov hlua steel.
Cim npe nrov: astm b423 b474 b704 b705 uns n08825 inconel 825 seamless welded kav raj, Tuam Tshoj, manufacturers, hoobkas, nqe, customized
