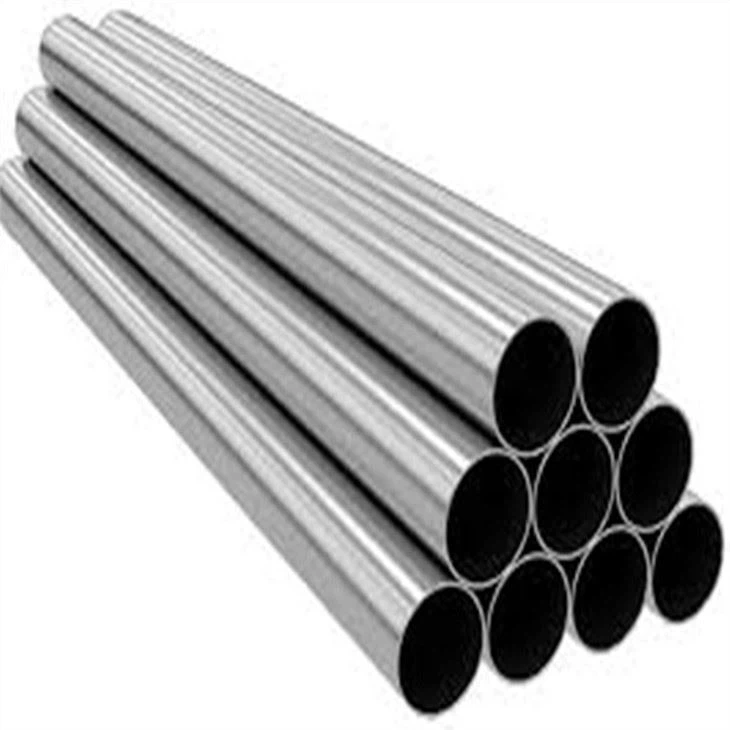

Incoloy 800 Tube
1. Txuj: ASTM B407, ASTM B163, ASTM B514
2. Txoj kab uas hla: 4.0 - 1219.2 hli
3. Phab ntsa thickness: 0.5 txog 20mm
4. Teem sijhawm: SCH5, SCH10, SCH40, STD, SCH80, SCH160
5. Qib: Incoloy 800, UNS N08800, DIN 1.4876, Alloy 800
Incoloy 800 Tube Description
Alloy 800 Nqe: $ 25 txog $ 35 Ib Kg
Inconel 800 Tubing Hom:
Inconel 800 Specifications: Inconel Alloy 800, Alloy 800, UNS N08800
Inconel 800, Incoloy 800 Tubing
-
Inconel 800, Incoloy 800: ASTM -B-163, ASTM-B-407, ASTM-B-514, ASTM B829, ASTM-B-775, ASTM-B-51 ASTM-B-751, BS{15}}NA15, ISO 6207, DIN 17459
-
Tshuag Loj: OD 1/16 "~ 3", Phab ntsa: 0.010" ~ 0.250", Ntev: 17'/24' FT R / L
-
3/8" OD x 0.049" Phab x 20 FT
-
1/4" OD x 0.049" Phab x 20 FT
Inconel 800, Incoloy 800 Tube
-
Inconel 800, Incoloy 800: ASTM -B-514, ASTM B829, ASTM B775, ASTM B515, ASTM B751, BS3 3074NA15, ISO 6207, DIN 17459
-
Tshuag Loj: 1/4 "sch 10-16" sch 80
Muaj cov ntaub ntawv khoom rau Incoloy alloy 800 / 800H / 800HT
Incoloy 800 Cold Drawn Seamless Tube, Alloy 800 Extruded Seamless Tube, Incoloy Alloy 800 Boiler Tubes, Alloy 800 Kub Exchanger Tubes
Incoloy 800 Tube Vuam
Incoloy 800 Tube tej zaum yuav yog npib tsib xee-chromium alloys uas yog siv nyob rau hauv ntau cov ntaub ntawv vuam. Incoloy 800 Tube feem ntau yog siv rau hauv txoj kev uas yuav tsum tau ua kom sov siab siab. Vuam Inconel tuaj yeem yog lossis tej zaum nyuaj vim tias cov welds uas tau tsim muaj kev sib cais. Muaj qee cov alloys ntawm Inconel uas tau npaj tshwj xeeb rau kev siv vuam zoo li TIG.
Ntawm Inconel thiab Incoloy
Incoloy yog hais txog ntau yam ntawm Superalloys uas tsim los ntawm Cov Khoom Tshwj Xeeb Metals Corporation Pawg Tuam Txhab.
Incoloy Alloy 800/800H/800HT Tubes Specifications
| Specifications | ASTM B163, B515, ASME SB163, B515 |
| Qhov ntev | ASTM, ASME thiab API |
| Alloy 800 Tube Loj | 6 mm OD x 0.7 mm to 50.8 mm OD x 3 mm thk. |
| Teem caij | TSW 20 SCH 30 SCH 40 STD SCH 80 SCH 60 SCH 80 SCH 120 SCH 140 SCH 160 XXS |
| Hom | Seamless / ERW / Welded / Fabricated / LSAW Tubes |
| Daim ntawv | Round, Square, Rectangular, Hydraulic thiab lwm yam |
| Ntev | Ib qho Random, Ob Chav Random & Txiav Ntev. |
| Xaus | Plain End, Beveled kawg, Treaded |
Tuam Tshoj Customized Inconel Alloy 800 Seamless Yeeb Nkab, Yuav ASME SB407 UNS N08800 Welded ERW EFW Tube Chaw tsim khoom, Hu rau peb kom tau txais cov npe nqe, Qhov ntau thiab tsawg & Cov qauv dawb!
ASTM B515 Incoloy Alloy 800 Tube Qhov ntau thiab tsawg
| Hom Inconel 800 Yeeb Nkab | Phab ntsa thickness ntawm lub raj | Tawm txoj kab uas hla ntawm lub raj (OD) | Ntev |
|---|---|---|---|
| NB Loj (npaj Tshuag) | SCH 10 / SCH 5 / SCH 80 / SCH 40 / SCH 160 TSI | 1/8" ~ 8" | Txog li 6 meters |
| Incoloy 800 Seamless Tube (Raws li qhov xav tau) | Raws li xav tau | 5.0 hli ~ 203.2 hli | |
| Incoloy 800 Welded Tube (npaj Tshuag + Raws li xav tau) | 1.0 ~ 15.0 hli | 5.0 hli ~ 1219.2 hli |
800 / 800HT / 800HT Inconel Alloy Tube Cov Khoom Siv Tshuaj
| Qib | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800 | 0.10 max | 1.50 max | max 1.00 Nws | 0.015 max | 0.75 max | 39.50 Nws | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800H | 0.05 – 0.10 | 1.50 max | max 1.00 Nws | 0.015 max | 0.75 max | 39.50 Nws | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800 HT | 0.06 – 0.10 | 1.50 max | max 1.00 Nws | 0.015 max | 0.75 max | 39.50 Nws | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60 |
Incoloy 800 / 800H / 800HT Tubing Mechanical Properties
| Lub ntsiab | Qhov ntom | Melting Point | Tensile zog | Yield zog (0.2% Offset) | Elongation |
| 800/800H/800HT | 7,94g 3 | 1385℃(2525℃F) | Psi - 75,000, MPa - 520 | Psi - 30,000, MPa - 205 | 30 % |
Qib sib npaug rau 800 / 800H / 800HT Incoloy Seamless thiab Welded Tubes
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | LOSSIS |
| Kev 800 | 1.4876 | N08800 | NCV 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH 32 T |
| Incoloy 800 H | 1.4958 / 1.4876 | N08810 | NCF 800 H | NA 15 (H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH 32 T |
| Incoloy 800 HT | 1.4859 / 1.4876 | N08811 | NCF 800 HT | NA 15 (HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH 32 T |
Puas yog INCOLOY 800 zoo dua 825?
- INCOLOY 800 Tube: ASTM B407 UNS N08800 Tube yog cov khoom kub kub. (Composition Ni-Fe-Cr, titanium-aluminium ratio tuaj yeem tswj tau) Ntev-lub sijhawm kev pabcuam kub txog li 1100℃F / 600 degree, luv-lub sijhawm kev pabcuam kub siab dua.
- INCOLOY 825 Tube: ASTM B423 UNS N08825 Yeeb Nkab yog ib qho corrosion resistant alloy (CRA). Ntxiv rau cov nickel-hlau-chromium puag alloy, molybdenum (Mo) thiab tooj liab (Cu) ntxiv. Resistant kom txo cov kua qaub (xws li sulfuric thiab phosphoric acid), kev nyuaj siab corrosion cracking (SCC), thiab localized corrosion (pitting / crevice) nyob rau hauv chloride ib puag ncig.
ASTM B407 UNS N08800 Seamless Yeeb Nkab Supplier
HT PIPE yog ib tug zoo-paub stockist thiab exporter. Peb yog ibIncoloy KhoomTus neeg xa khoom nrog 15+ kev xa tawm. Peb tsis tsuas yog muab Incoloy 800 raj, kav dej, phaj, puag ncig tuav, tab sis kuj muaj cov yeeb nkab fittings, flanges, thiab lwm yam. Hu rau peb kom paub ntau ntxiv thiab cov nqi dawb.
FAQ
Q: Txog ASTM B407 Incoloy 800 Nqe ib kg?
Q: Koj lub sijhawm khoom xa tuaj ntev npaum li cas?
Q: Puas muaj Kev Pabcuam Qauv?
Q: Yam tsawg kawg nkaus Order Quantity yog dab tsi?
Q: Yuav ntim cov khoom li cas?
Q: Lub teb chaws xa tawm
Q: Peb puas tuaj yeem tuaj xyuas koj lub Hoobkas?
A: Tau kawg, koj ib txwm txais tos!
