316Ti Stainless hlau yeeb nkab

1. Hom: Seamless, Welded
2. OD: 1/2 "-48"
3. Thickness: SCH5-SCHXXS
4. Ntev: 0-12M, Customized
5. Txheej Txheem: Kub / Cold Rolled, Kub ua haujlwm, Txias kos

Xa kev nug

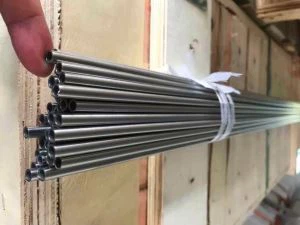

316Ti Stainless Steel Pipe Description

316Ti yog 316 stainless hlau nrog ntxiv titanium (Ti). Thaum SS 316 raug cuam tshuam rau intergranular corrosion nyob rau hauv qhov kub ntawm 900 txog 1500℃F (425 txog 815 degree), 316Ti tsis yog. S31635 cov khoom muaj kev tiv thaiv zoo heev rau intergranular corrosion thiab zoo weldability. Tau kawg, 316Ti tau txais txiaj ntsig zoo ntawm kev tiv thaiv corrosion ntawm 316, nthuav tawm zoo tiv thaiv cov organic acids, sulfuric acid, alkalis, thiab dej hiav txwv. Hu rau peb hnub no kom luv nqi ntawm stainless hlau 1.4571.

Factory ALLOY 316TI • UNS S31635 • WNR 1.4571 Cov Khoom Siv Khoom lag luam

316Ti Stainless Hlau Yeeb Nkab Daim Ntawv Thov:

Chemical thiab petrochemical kev lag luam
Kub exchangers
Condenser tubes
High -kub sulfuric thiab phosphoric acid pipelines
Flue gas desulfurization (FGD) systems
Boiler raj
Exhaust system Cheebtsam
High -kub ua noj thiab tshuaj ntxuav cov kav dej
Aerospace thiab marine applications

Stainless hlau 316Ti Pipes & Tubes Specification

Txuj: ASTM A / ASME SA213 / A249 / A269 / A312 / A358
Qhov ntau thiab tsawg: 1/2 "NB txog 24" NB IN as Per NACE MR 01 75
Thickness: 0.3mm-50mm
Sab nraud txoj kab uas hla: 6.00 hli OD txog 914.4 hli OD
Teem caij: SCH 5, SCH 10, SCH20, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS
Hom: Seamless / ERW / EFW / Welded / Fabricated
Daim ntawv: Round, Square, Rectangular, Hydraulic, thiab lwm yam.
Length: Ib qho Random, Ob Chav Random & Txiav Length

Hu rau tam sim no

aisi 316ti stainless hlau Tubing Chemical Composition

Element	C	Si	Mn	P	S	Cr	Mo	N	Ni	Ti	Fe
Min (%)	-	-	-	-	-	16	2	-	10	5 x (C+N)	Tshuav
Max (%)	0.08	0.75	2	0.45	0.03	18	3	0.1	14	0.7	Tshuav

1.4571 Stainless Hlau Mechanical Properties

Kub	Annealed
Tensile Rm	75/515	Ksi/MPa (min)
Rp. 0.2% Tawm	30/205	Ksi/MPa (min)
Elongation (2 "los yog 4D gl)	35	% (min)

ASTM A312 UNS S31635 Pipe Lub cev muaj zog

Qhov ceev: 8.0 g / cm3³
Melting Point: 1399℃(2550℃F)

Khoom siv 1.4571 Steel Siab Kub Cov Khoom

Kev ntsuas kub	Tensile zog	Yield Strength 0.2% Offset	Elongation hauv 2-nti ntsuas
(F / degree)	Ksi (MPa)	Ksi (MPa)	(%)
200 / 93	75.2(518)	30.2(208)	39.5
400 / 204	66(455)	26(179)	26
600 / 316	64.2(443)	23.1(159)	26
800 / 427	62.7(443)	21.2(146)	25
1000 / 538	61.3(423)	21(145)	23
1200 / 649	54.9(349)	21.1(146)	19.5
1400 / 760	37.9(261)	21.1(146)	23
1600 / 871	22.5(155)	16.2(112)	48
1800 / 982	11.3(78)	8(55)	41

Factory 316Ti Stainless Steel Pipe Suppliers

AISI 316Ti Stainless Hlau Yeeb Nkab Nqe Sau

316ti Titanium Stainless hlau yeeb nkab	Teb Chaws Asmeskas $800 - $2500 / Ton
SCH 40 Stainless hlau 316 TI Tubing	US $1.50 - $2.50 / kg
SCH 80 SS316Ti Seamless yeeb nkab	US $880 - $3,000/Ton
Alloy 316Ti ERW Steel Pipes	US $0.83 - $2.80 / kg

316Ti Steel Pipes thiab Tubes sib npaug

Qib	UNS	WERKSTOFF NR.	JIS	BS	GOST	AFNOR	EN
316 Ti	S31635	1.4571	SUS 316 Ti	320S31	08Ch17N13M2T	Z6CNDT17-123	X6CrNiMoTi17-12-2

SS 316 Ti Yeeb Nkab Fabrication

Kev kho cua sov

Kev kho mob: Kub cov khoom siv 316Ti rau 1050-1100 degree, tom qab ntawd dej quench.
Stabilization annealing ntawm 850-900℃qee zaum ua.

Vuam

316Ti tuaj yeem welded siv txoj kev xws li TIG thiab MIG.
Nws raug nquahu kom siv qis- cov khoom siv roj carbon monoxide uas muaj titanium lossis niobium (xws li ER316Ti, ER318).

Tshuab dhos

316Ti hardens ceev ceev thaum ua hauj lwm txias, yuav tsum tau intermediate annealing.

Vim li cas thiaj xaiv peb?

ISO9001
Mill Test Certificate (MTC) EN 10204 - 3.1
Thib peb-kev tshuaj ntsuam xyuas muaj (BV, SGS, TUV)

HT PIPE yog ib tug zoo-paub stockist thiab exporter. Peb yog s31635 cov khoom siv nrog 15+ kev xa tawm. Peb tsis tsuas yog muabcov yeeb nkab, daim hlau, cov kab tuav, tab sis kuj tseem muaj cov yeeb nkab flanges, thiab lwm yam. Tiv tauj peb kom paub ntau ntxiv thiab tus nqi dawb.

FAQ

Q: Hais txog SS 316Ti tus nqi?

A: Cov nqi ntawm $ 1 txog $ 3 ib kilogram, txawv nyob ntawm qhov loj me, phab ntsa thickness, tus neeg muag khoom thiab lwm yam.

Q: Koj puas yog lub Hoobkas tsim khoom?

A: Yog. Factory xeem daim ntawv pov thawj yog xa nrog cov khoom.

Q: Kuv puas tuaj yeem muaj qee qhov qauv ua ntej xaj?

A: Yog lawm, tau kawg. kuaj dawb tab sis koj yuav tsum them tus xa khoom.

Q: Peb puas tuaj yeem tuaj xyuas koj lub tuam txhab?

A: Tau kawg. Peb zoo siab tau muaj koj nyob hauv Suav teb.

Q: Yam tsawg kawg nkaus Order Quantity yog dab tsi?

A: Tsis muaj MOQ.

Q: Cov nqe lus them nqi yog dab tsi?

A: T / T, L / C, Western Union, thiab lwm yam.

Q: Koj lub sijhawm xa khoom yog dab tsi?

A: Rau cov khoom lag luam, peb tuaj yeem xa cov khoom mus rau qhov chaw nres nkoj hauv 7 hnub tom qab tau txais koj cov nyiaj tso cia.
Rau lub sijhawm tsim khoom, nws feem ntau xav tau 10 hnub - 35 hnub tom qab tau txais qhov tso nyiaj.

Q: Puas yog nws zoo rau kos kuv lub logo ntawm koj cov khoom?

A: Yog. OEM thiab ODM muaj rau peb.

Q: Peb Lub Tebchaws Exported

A: Indonesia, Is Nrias teb, Singapore, Malaysia, Iran, Russia, UAE, Chile, Nplog, Brazil, South Africa, thiab lwm yam

Cim npe nrov: 316ti stainless hlau yeeb nkab, Suav teb, manufacturers, hoobkas, nqe, customized
