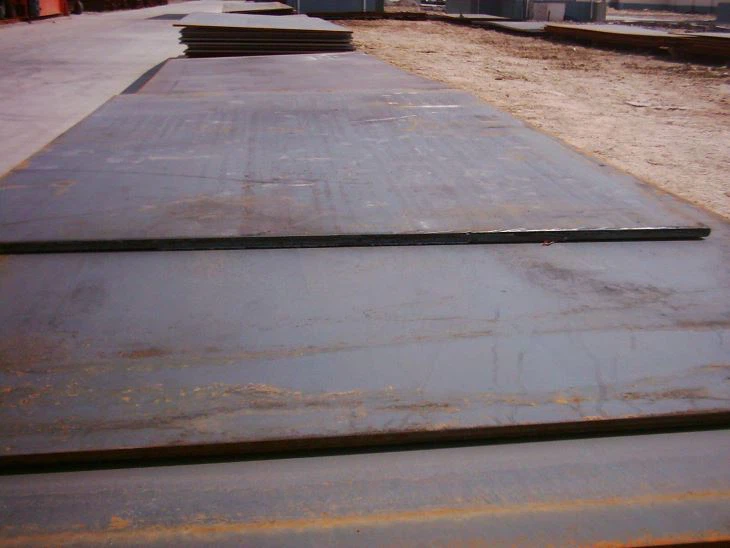

Alloy 800 Phaj Sheet

Hom: Phaj, Sheet, Sawb, Coil
Ntev: 0-12m
Dav: 0-2500mm
Thickness: 0 3-1200 hli
Txheej Txheem: Kub / Cold Rolled
Nto: 1,2D,2B,3,4,6,7

Xa kev nug

ASTM B409 UNS N08800 Sheet, Inconel 800 Phaj, Inconel 800 Clad Phaj Loj Hauv Tshuag, Alloy 800 Phaj Ceev thiab Melting Range Sawb, Nickel Alloy 800 Coil thiab Ntawv Nyiaj, Incoloy 800 Alloy Sheet.

Siv dav hauv cov khoom siv uas yuav tsum muaj lub zog tensile siab nrog rau cov khoom ua haujlwm zoo rau oxidation thiab carburisation, Werkstoff Nr. 1.4876 Phaj muaj peev xwm tiv taus lwm yam kev phom sij ntawm kev raug kub siab.

Qhov tseeb, UNS N08800 Sheet tuaj yeem siv rau hauv cov ntawv thov cuam tshuam nrog dej hiav txwv lossis marine engineering lub hom phiaj. Qhov no yog ua tau vim qhov tseeb tias UNS N08800 yog dawb los ntawm tsis tsuas yog cov tshuaj chloride kev ntxhov siab txog corrosion cracking tab sis kuj los ntawm intergranular corrosion, uas nyob rau hauv lem yog tshwm sim los ntawm rhiab heev.

Nyob rau hauv ib qho kev mob annealed tus nqi Rockwell hardness ntawm UNS N08800 Sheet yog 70. Inconel 800 Clad Plate muaj qhov sib txawv ntawm qhov kub ntawm 1357 degree txog 1385 degree . Nyob rau hauv qhov txias ua hauj lwm, annealed mob, lub zog tawm los ntawm Inconel 800 yog 205 Mpa, whereas, nyob rau hauv ib tug kub tiav annealed mob, nws yield zog yog hais txog 170 Mpa. Zoo ib yam li feem ntau Inconel alloys, Alloy 800 Plate muaj kev cuam tshuam lub zog ntawm qhov kub thiab txias thiab tseem muaj qhov tawv zoo ntawm qhov kub thiab txias. Feem ntau ntawm nws cov khoom tiv thaiv corrosion tau raug ntaus nqi los ntawm kev sib ntxiv ntawm 30% mus rau 35% ntawm npib tsib xee hauv cov hlau ntawm Nickel Alloy 800 Coil.

Mechanical yam ntxwv ntawm ASTM B409 Incoloy 800 Sheet

Element	Incoloy 800 Phaj Ceev	Melting Point	Tensile zog	Yield zog (0.2% Offset)	Elongation
Incoloy 800 / 800H / 800HT	7,94g 3	1385 degree (2525 degree F)	Psi – 75, 000, MPa – 520	Psi – 30, 000, MPa – 205	30 %

Tshuaj muaj pes tsawg leeg ntawm UNS N08800 Shim Sheet

Qib	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
Kev 800	0.10 max	1.50 max	1 00 max	0.015 max	0.75 max	39.50 Nws	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
Incoloy 800 H	0.05 – 0.10	1.50 max	1 00 max	0.015 max	0.75 max	39.50 Nws	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
Incoloy 800 HT	0.06 – 0.10	1.50 max	1 00 max	0.015 max	0.75 max	39.50 Nws	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60ᴬ	0.15 – 0.60ᴬ

Cim npe nrov: alloy 800 phaj ntawv, Tuam Tshoj, manufacturers, hoobkas, nqe, customized
