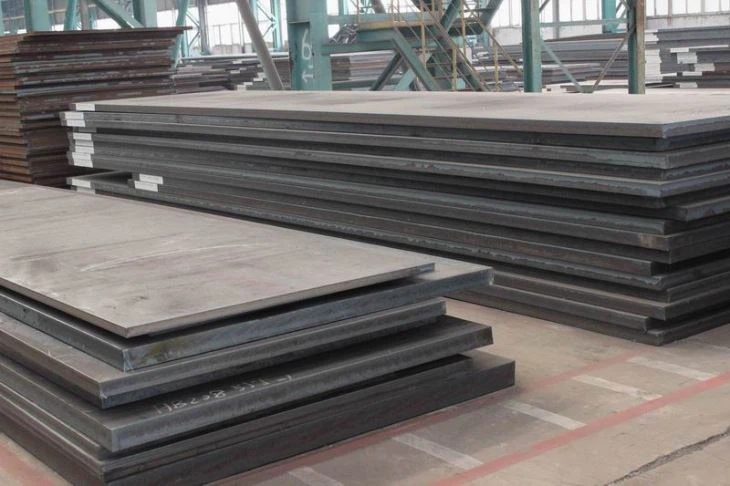

Stainless hlau SUS630 Phaj Sheet
Hom: Phaj, Sheet, Sawb, Coil
Ntev: 0-12m
Dav: 0-2500mm
Thickness: 0.3-1200 hli
Txheej Txheem: Kub / Cold Rolled
Nto: 1,2D,2B,3,4,6,7
Zhengzhou Huitong Pipeline Equipment Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm stainless hlau sus630 phaj ntawv hauv Suav teb. Peb sov siab txais tos koj mus yuav peb stainless hlau sus630 phaj ntawv. Peb lub Hoobkas kuj lees txais cov kev txiav txim customized. Thov pub dawb kom txaus siab rau peb cov nqi sib tw thiab kev pabcuam zoo heev.
SUS630 Stainless Hlau Phaj Nqe 2026|17-4PH Tshuag, Qhov Loj & Chaw Muag Khoom
SUS630 yog martensitic nag lossis daus -cov hlau tsis muaj zog (17Cr-4Ni).SUS630 stainless hlau phaj nqi hauv 2026 feem ntau yog li ntawm $ 5.50 txog $ 9.20 ib kg, nyob ntawm qhov tuab thiab kev kho cua sov (xws li H900, H1150). Nws muaj zog txhua yam muaj zog thiab zoo heev corrosion kuj. Dav dav hu ua 17-4PH, cov nag lossis daus no yog qhov tseem ceeb rau kev lag luam aerospace, tshuaj, thiab kev lag luam sab nrauv.
17-4PH Stainless Hlau Phaj Nqe Nqe / Tus Nqi
| Khoom | Thickness (hli) | Tus nqi kwv yees (USD / kg) | Tus nqi kwv yees (USD/Ton) |
| Txias Rolled Sheet | 0.5mm-3.0 hli | $6.50 – $9.20 | $6,300 – $9,200 |
| Kub Rolled Phaj | 3.0mm-20.0 hli | $5.20 – $7.80 | $5,000 – $7,800 |
| Medium/Thick Phaj | 20.0mm-100 hli | $4.50 – $6.80 | $4,300 – $6,800 |
Thov qhia rau kuv paub qhov ntev thiab ntau npaum li cas ntawm steel daim hlau koj xav tau, thiab kuv yuav muab rau kojdawb quotetam sim no!
Zhengzhou Huitong Pipeline Equipment Co., Ltd. Daim ntawv pov thawj:
✅ ISO 9001: 2015
✅ MTC 10204 3.1 3.2
✅ 100% PMI (Positive Material Identification)
✅ Ultrasonic Testing (Rau ASME VIII)
✅ Third-Kev Tshawb Fawb Kev Tshawb Fawb (SGS/BV/DNV/LR)
✅ NACE MR0175 / ISO 15156

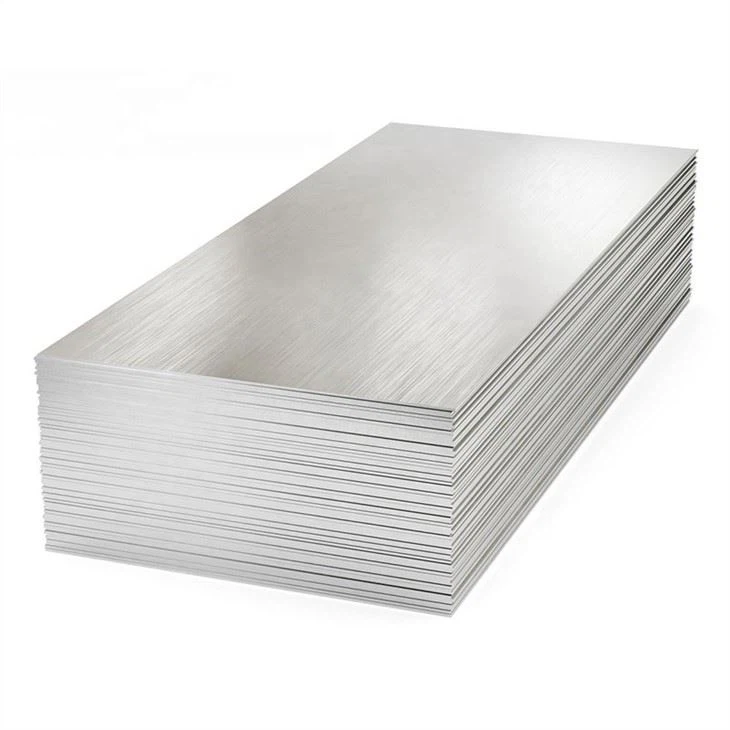

Stainless Hlau SUS630 Phaj Sheet yog cov khoom siv dav hauv kev tsim khoom vim nws cov khoom zoo thiab cov yam ntxwv. SUS630 yog martensitic nag lossis daus-cov hlau tsis muaj zog uas muaj chromium, npib tsib xee, thiab tooj liab. X5CrNiCuNb16-4 Phaj muaj qib siab ntawm lub zog, corrosion kuj, thiab kav ntev.
SUS 630 Plate Sheet kuj muaj qhov ua tau zoo heev . 1.4542 Daim ntawv tuaj yeem ua tau yooj yim los yog tsim los ntawm cov txheej txheem txheej txheem, ua 17-4 PH Kub Rolled Phaj yog qhov kev xaiv zoo rau ntau daim ntawv thov.
17-4 PH SUS630 Stainless Hlau Phajyog ib qho kev xaiv zoo heev rau ntau yam kev siv uas yuav tsum tau muaj zog, corrosion kuj, toughness, thiab machinability zoo . 17-4 PH Cold Rolled Phaj yog feem ntau siv nyob rau hauv aerospace, tiv thaiv, tsheb, thiab roj thiab roj industries, thiab lwm yam. Tsis tas li ntawd, nws kuj yog siv rau hauv kev kho mob thiab phais kev cog hniav vim nws biocompatibility thiab tsis kam mus corrosion.
Stainless hlau SUS630 Phaj Sheet Specification:
|
Hom |
Phaj, Sheet, Strips, Coil |
|
Txuj |
ASTM, AISI, ASME, AMS, MLS, EN, JIS, DIN, GOST |
|
Thickness |
1-100 hli |
|
Dav |
1000-2500 hli |
|
Ntev |
1000-12000mm |
|
Nto |
2B, No.3, No.4, HL, BA, 8K |
|
Kev tsim khoom |
Kub dov, txias dov |
|
Ntim |
npuas hnab thiab plywood pallet lossis raws li cov neeg siv khoom xav tau. Qhov loj me ntawm lub thawv hauv qab no: 20ft GP: 5.8m (ntev) x 2.13m (dav) x 2.18m (siab) txog 24-26CBM 40ft GP: 11.8m (ntev) x 2.13m (dav) x 2.18m 40m (siab) HCB 11.8m (ntev) x 2.13m (dav) x 2.72m (siab) txog 68CBM |
|
Lub sij hawm xa tuaj |
10-30 hnub nyob ntawm seb muaj pes tsawg |
|
Cov nqe lus them nqi |
T/T |
|
Kev xa khoom |
FOB Tianjin / Shanghai, CIF, CFR, thiab lwm yam |
|
Txais tos tiv tauj peb: Zhengzhou Huitong Yeeb Nkab Fittings Co., Ltd (40 xyoo kev tsim khoom) |
|
Factory Stainless SUS630 Phaj Sheet, 17-4 PH Stainless Hlau Phaj, X5CrNiCuNb16-4 Phaj, 1.4542 Sheet Suppliers Manufacturers
SUS 630 Stainless Steel Chemical Composition
| Qib | C | Mn | Si | P | S | Cr | Ni | Cu | Nb+Ta | |
| 630 | min. | - | - | - | - | - | 15 | 3 | 3 | 0.15 |
| max | 0.07 | 1 | 1 | 0.04 | 0.03 | 17.5 | 5 | 5 | 0.45 | |
17 4 PH Stainless Hlau Mechanical Properties
| Qhov xwm txheej: | 17-4PH Annealed | 17-4PHH900 | 17-4 PAB H925 | 17-4 PAB H1025 | 17-4 PAB H1075 | 17-4 PHH 1100 | 17-4PHH1150 |
| Tensile zog N / mm2 | 1034 | 1380 | 1310 | 1170 | 1140 | 1035 | 1000 |
| 0.2% YS N/mm2 | 760 | 1275 | 1200 | 1140 | 1035 | 930 | 860 |
| Txo ntawm cheeb tsam% | 30-60 | 50 | 54 | 56 | 58 | 58 | 60 |
| Elongation% | 6-15 | 14 | 14 | 15 | 16 | 17 | 19 |
| Charpy Impact J | – | 20 | 34 | 47 | 54 | 61 | 68 |
SUS 630 Stainless Hlau Khoom Khoom
- Lub zog muaj zog: Lub zog yog 2-3 npaug ntawm qhov zoo tib yam austenitic stainless.
- Corrosion Resistance: Corrosion resistance yog ze rau ntawm 316L, tiv taus acids, alkalis, ntsev, thiab oxidizing agents.
- Zoo Machinability: tuaj yeem machined, stamped, thiab welded hauv cov tshuaj -annealed xeev.
- Kev khiav hauj lwm qhov kub thiab txias: Haum rau ntev - siv los ntawm -40℃rau +315℃.
Hom 630 Sib npaug & Cov Qauv
- AISI/UNS: AISI 630/S17400
- European/German: 1.4542 / X5CrNiCuNb16-4
- Japanese (JIS): SUS630
17 4 PH Stainless hlau cua sov kho
| Qhov xwm txheej | Hardening kub | Lub sijhawm hardening (H) | Hom Txias |
| 17-4PH Annealed | 1038 degree | 1 | Roj / Cua (kom qis dua 32 degree) |
| 17-4PHH900 | 480 degree | 1 | Cua |
| 17-4 PAB H925 | 594 degree | 4 | Cua |
| 17-4 PAB H1025 | 55 degree | 4 | Cua |
| 17-4 PAB H1075 | 85 degree | 4 | Cua |
| 17-4 PHH 1100 | 595 degree | 4 | Cua |
| 17-4PHH1150 | 621 degree | 4 | Cua |
SS 17 4 PH Stainless Hlau Machining
Nyob rau hauv cov xwm txheej H900, AISI 630 stainless hlau nthuav tawm siab hardness thiab siab zog, ua rau nws nyuaj rau tshuab. Yog li, machining yuav tsum tau ua ntawm qhov ceev 60% qis dua qhov uas siv rau A mob.
17-4PH vs 316L vs 304
| Feature | SUS630 (17-4PH) | SUS 316L | SUS 304 |
| Yield zog | Siab heev (txog 1170 MPa) | Nruab nrab (kwv yees . 290 MPa) | Tsawg (kwv yees . 215 MPa) |
| Corrosion Resistance | Zoo heev (Zoo tshaj 400 series) | Superior (High Chloride resistance) | Zoo (Lub hom phiaj dav dav) |
| Hardness | High (Hardness ntawm Thaum tshav kub kub kho) | Tsawg (ua haujlwm hardens nkaus xwb) | Tsawg |
| Tus nqi txheeb ze | Siab ($$$) | Nruab nrab ($$) | Tsawg ($) |
| Zoo tshaj rau | Heavy load, siab hnav | Marine, Kev kho mob | Chav ua noj, Kho kom zoo nkauj |
17 4 PH Type 630 Plate Applications
- Nuclear reactors
- Aircraft thiab gas turbines
- Zog thiab tshuaj lom neeg kev lag luam
- Cov cuab yeej siv tshuaj
- Ntawv mills
- Offshore engineering
- Twj shafts, li qub, impellers, drilling accessories
FAQ:
Q: Qhov txawv ntawm SUS630 thiab 17-4PH yog dab tsi?
A: Lawv yog cov khoom siv tib yam. SUS630 yog lub npe Japanese JIS, thaum 17-4PH yog lub npe lag luam (sawv cev 17% Chromium thiab 4% Nickel). Nws tseem raug cais raws li UNS S17400.
Q: SUS630 puas tuaj yeem welded?
A: Yog. SUS630 muaj qhov zoo tshaj plaws weldability. Nws tsis tas yuav ua ntej- cua sov zoo li ntau qib martensitic.
Q: Vim li cas SUS630 kim dua 304 lossis 316?
A: Tus nqi siab dua vim muaj cov tshuaj lom neeg muaj pes tsawg leeg (xws li Niobium) thiab cov txheej txheem kho cua sov tshwj xeeb xav tau kom ncav cuag nws lub zog siab.
Q: Dab tsi yog qhov kev kho cua sov tshaj plaws rau SUS630?
A: H900 (hnub nyoog ntawm 900℃F) muab lub zog siab tshaj plaws, thaum H1150 (hnub nyoog ntawm 1150℃F) muaj qhov zoo dua ductility thiab cuam tshuam toughness.
Q: Puas yog SUS630 sib nqus?
A: Yog, SUS630 yog cov hlau martensitic thiab muaj zog sib nqus hauv txhua yam.
Q: Qhov txawv ntawm SUS630 H900 thiab H1150 yog dab tsi?
- Qhov sib txawv yog nyob rau hauv qhov kub thiab txias thiab qhov tshwm sim:
- H900: Hnub nyoog ntawm 900℃F (482 degree). Nws muab lub zog siab tshaj plaws (1310 MPa tensile) thiab hardness tab sis muaj qhov qis tshaj ductility thiab cuam tshuam toughness.
- H1150: Hnub nyoog ntawm 1150℃F (621 degree). Nws muaj zog toughness thiab zoo dua corrosion kuj tab sis ntawm ib tug txo tensile zog (kwv yees . 1070 MPa).
Q: SUS630 stainless hlau phaj nqi npaum li cas rau ib kg?
A: Nqe rau SUS630 phaj feem ntau yog li ntawm $ 5.50 txog $ 8.50 ib kg. Qhov no yog qhov siab tshaj 304 lossis 316L vim qhov kev ua kom raug alloying (Copper thiab Niobium) thiab kev kho cua sov tshwj xeeb yuav tsum tau ua.
Q: Puas yog SUS630 zoo dua 316L rau kev tiv thaiv corrosion?
A: Feem ntau, tsis yog. SUS630's corrosion kuj yog piv rau Hom 304. Nws tsis muaj Molybdenum pom hauv 316L. Xaiv SUS630 rau lub zog, tab sis lo rau 316L lossis Duplex 2205 rau tshuaj chloride tsis kam.
Q: Dab tsi yog cov ntawv thov tseem ceeb rau SUS630/17-4 PH daim hlau?
A: Vim nws lub zog siab - rau- qhov hnyav piv, nws yog tus qauv rau cov khoom siv dav hlau, siab - cov twj tso kua mis valve, twj tso kua mis, cov khoom siv tshuaj.
Q: Dab tsi yog qhov sib txawv thickness ntau rau SUS630 nplooj ntawv?
A: SUS630 feem ntau muaj xws li txias- cov ntawv yob los ntawm 0.5mm txog 3.0mm thiab kub- dov daim hlau los ntawm 3.0mm txog 100mm.
Q: Hais txog 17 4 ph nqi ib kg?
A: Cov nqi ntawm $ 2 txog $ 8 ib kilogram, txawv nyob ntawm qhov loj, phab ntsa thickness, tus neeg muag khoom thiab lwm yam.
Q: Koj puas yog lub Hoobkas tsim khoom?
A: Yog. Factory xeem daim ntawv pov thawj yog xa nrog cov khoom.
Q: Kuv puas tuaj yeem muaj qee qhov qauv ua ntej xaj?
A: Yog lawm, tau kawg. kuaj dawb tab sis koj yuav tsum them tus xa khoom.
Q: Peb puas tuaj yeem tuaj xyuas koj lub tuam txhab?
A: Tau kawg. Peb zoo siab tau muaj koj nyob hauv Suav teb.
Q: Yam tsawg kawg nkaus Order Quantity yog dab tsi?
A: Tsis muaj MOQ.
Q: Cov nqe lus them nqi yog dab tsi?
A: T / T, L / C, Western Union, thiab lwm yam.
Q: Koj lub sijhawm xa khoom yog dab tsi?
A: Rau cov khoom lag luam, peb tuaj yeem xa cov khoom mus rau qhov chaw nres nkoj hauv 7 hnub tom qab tau txais koj cov nyiaj tso cia.
Rau lub sijhawm tsim khoom, nws feem ntau xav tau li 10 hnub - 35 hnub tom qab tau txais qhov tso nyiaj.
Q: Puas yog nws zoo rau kos kuv lub logo ntawm koj cov khoom?
A: Yog. OEM thiab ODM muaj rau peb.
Q: Peb Lub Tebchaws Exported
A: Indonesia, Is Nrias teb, Singapore, Malaysia, Iran, Russia, UAE, Chile, Nplog, Brazil, South Africa, thiab lwm yam
17 4 PH SS Suppliers Manufacturers
HT PIPE yog ib tug zoo-paub stockist thiab exporter. Peb yog AISI 17 4PH cov khoom xa tawm nrog 15+ kev xa tawm. Peb tsis tsuas yog muab cov kav dej, phaj, puag ncig tuav, tab sis kuj yog cov yeeb nkab fittings, flanges, thiab lwm yam. Hu rau peb kom tau txais cov nqi luv nqi thiab qhov ntau thiab tsawg.
