Qib 8.8 Hex Bolt
Fasteners
Hom: Luv Bolt, U- Bolt, Flat Washer, Hex Bolt (Tag Nrho Xov, Ib Nrab Xov), Hex Socket Head Cap Ntsia Hlau, Caij Nplooj Hlav Washer, Threaded Rod, Hex Txiv Ntoo
Loj: DIN: M6-M100, DIN: M6-M64, ASME 1/4"-5", 1/2" -2 1/2"
Cov qauv tsim: ASME B18.2.1, ASME B18.2.2, ASME B18.22.1, DIN931, DIN933, DIN912, DIN 934, DIN 125, DIN 127, DIN 975, DIN 976, DIN 3570
Ua tiav: Txias Galvanized, Kub Dipped Galvanized, PTFE, Zinc -Nickel, Dub Txheej, Plain
Zhengzhou Huitong Pipeline Equipment Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm qib 8.8 hex ntsia liaj qhov rooj hauv Suav teb. Peb sov siab txais tos koj mus yuav peb qib 8.8 hex ntsia liaj qhov rooj. Peb lub Hoobkas kuj lees txais cov kev txiav txim customized. Thov pub dawb kom txaus siab rau peb cov nqi sib tw thiab kev pabcuam zoo heev.
Qib 8.8 Hex Bolt|High Tensile Carbon Steel Fasteners
Qib 8.8 hex ntsia liaj qhov rooj yog lub siab - lub zog fastener ua los ntawm nruab nrab carbon steel uas tau quenched thiab tempered, muab ib tug tsawg kawg nkaus tensile zog ntawm 800 MPa.
- TS Ntau dua lossis sib npaug li 800 MPa
- YS Ntau dua lossis sib npaug rau 640 MPa
Zhengzhou Huitong Pipeline Equipment Co., Ltd. Daim ntawv pov thawj:
✅ ISO 9001: 2015
✅ MTC 10204 3.1 3.2
✅ 100% PMI (Positive Material Identification)
✅ Ultrasonic Testing (Rau ASME VIII)
✅ Third-Kev Tshawb Fawb Kev Tshawb Fawb (SGS/BV/DNV/LR)
Qib 8.8 Hauv Bolts yog dab tsi?
Standard Qib 8.8 bolts yog ua los ntawm cov pa roj carbon tsawg lossis nruab nrab carbon alloy hlau. Cov qib steel no kuj pheej yig thiab muaj zog tsawg. Lub zog tensile yog 800 MPa, thiab qhov piv ntawm lub zog ntawm lub zog rau tensile lub zog yog 0.8-ie, 640 MPa (rau qhov ntau thiab tsawg M16 thiab me dua), thiab nws Rockwell hardness yog nyob nruab nrab ntawm B71 - 95. 8.8 Metric bolts tej zaum yuav augmented los ntawm carburizing.
Qib 8.8 bolts yog ua los ntawm hardened thiab tempered nruab nrab carbon steel. Qib 8.8 bolts yog siv rau hauv cov khoom siv railway, hluav taws xob motors, cav, thiab cov cuab yeej ua haujlwm nrog lub zog tensile zoo thiab ua tau zoo nyob rau hauv feem ntau ib puag ncig. Lawv tsis ua haujlwm zoo nyob rau hauv ib puag ncig uas muaj qhov kub thiab txias.
Bolts ntau qhov loj ntawm M2 txog M100 thiab M3 rau M60 rau ntau hom BS 3692 qib 8.8 bolts. Bolt lengths txawv ntawm 6mm mus rau 500mm thiab tuaj yeem ua square, hexagonal, oval lossis lwm yam.
Qib 8.8 hex ntsia liaj qhov rooj Specification
- Siab Tensile Bolts 8.8
- Txuj: DIN EN ISO 4014 & 4017 DIN 931 / DIN 933 & IS 1364 / IS 1363
- Qhov Loj: Dia M 20-100mm / Inch 3/4" rau 3 1/2"
- Nto: Plain / Zinc plated / kub dip galvanized
Qib 8.8 Hex Bolt Nqe (USD / pc, FOB Tuam Tshoj, Lub Plaub Hlis 2026)
| Loj (mm) | Length Tsawg dua lossis sib npaug li 50mm (USD / pc) | Ntev 50-100mm (USD / pc) | Length >100 hli (USD / pc) |
| M6 | 0.03–0.05 | 0.05–0.07 | 0.07–0.10 |
| M8 | 0.04–0.06 | 0.06–0.09 | 0.09–0.12 |
| M10 | 0.05–0.08 | 0.08–0.12 | 0.12–0.18 |
| M12 | 0.07–0.10 | 0.10–0.15 | 0.15–0.22 |
| M16 | 0.12–0.18 | 0.18–0.25 | 0.25–0.35 |
| M20 | 0.20–0.28 | 0.28–0.38 | 0.38–0.50 |
| M24 | 0.30–0.40 | 0.40–0.55 | 0.55–0.70 |
| M30 | 0.50–0.70 | 0.70–0.90 | 0.90–1.20 |
Siab Tensile Bolts & 8.8 Mechanical Properties
| Qib | Qhov ntau thiab tsawg | Yield zog (min, MPa) | Tensile zog (min, MPa) | Rockwell Hardness |
| 8.8 | Tsawg dua los yog sib npaug rau M16 | 640 | 800 | C22–32 |
| 8.8 | >M16 | 660 | 830 | C23–34 |
Qib 8.8 Bolt Length:
- Yam tsawg kawg nkaus: 6mm (Micro-bolts)
- Qhov siab tshaj plaws: 500mm (Qee cov qauv txuas mus txog M60)
- Txheem Tshuag: M10-M30, ntev 30-200mm
If you require extra-long (>300mm) Qib 8.8 bolts, thov hu rau peb lub Hoobkas rau kev tsim khoom.
Qib 8.8 hex ntsia liaj qhov rooj nto tiav
- Plain / Bright
- Zinc Plated (Electro{0}}plated)
- Kub Dip Galvanized (HDG)
- Zinc-Nickel Alloy
- PTFE (Polytetrafluoroethylene)
- Dub Oxide
Phau ntawv qhia kom tsis txhob muaj teeb meem thaum yuav Bolts
- Xov Specification: Metric (M) lossis Imperial (inch)
- Xov Hom: Tag Nrho Xov vs. Ib Feem Xov (DIN 933=Xov Tooj; DIN 931=Ib Feem Xov)
- Hom Lub taub hau: Hex Head, Hex Flange Head, Hex Socket Head, thiab lwm yam.
- Nto tiav: Nyob ntawm daim ntawv thov ib puag ncig; tsis txhob skimp ntawm tus nqi no.
- Standard Number: DIN / ISO / ASME (Ceeb Toom: Cov qauv sib txawv qhia txog qhov sib txawv ntawm qhov ntev.)
- Lub Npe Lub Npe Khoom: Cov chav kawm tiag 8.8 bolts yuav tsum dais lub cim "8.8" lossis "8S" ntawm lub taub hau (raws li EN ISO cov qauv).

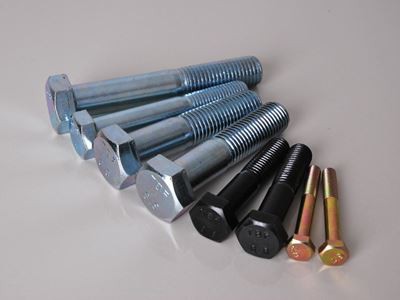

8.8 hex ntsia liaj qhov rooj yees duab
FAQ:
Qhov nruab nrab - carbon boron steel yog dab tsi?
- Cov khoom siv feem ntau siv rau Qib 8.8 bolts yog nruab nrab -carbon boron steel lossis nruab nrab- carbon alloy steel uas tau dhau los ua quenching thiab tempering.
- Los ntawm kev ntxiv me me ntawm boron (0.0005-0.003%) rau carbon steel, nws hardenability yog ho txhim kho, uas ua rau hardness ntau dua.
Qhov txawv ntawm Qib 8.8 thiab Qib 10.9 bolts yog dab tsi?
- Qhov txawv yog nyob ntawm lawv lub zog. Qib 10.9 bolts muaj lub zog tawm los ntawm 900 MPa thiab lub zog tensile ntawm 1040 MPa- siab dua qib 8.8 bolts. Txawm li cas los xij, Qib 10.9 bolts kuj tseem kim dua.
Dab tsi yog qhov txawv ntawm DIN 931 thiab DIN 933 hex bolts?
- DIN 931 bolts yog ib nrab xov (ib nrab- xov), thaum DIN 933 bolts yog threaded tag nrho.
- Xaiv DIN 931 thaum lub ntsia liaj qhov rooj shank hla lub qhov tshem tawm; xaiv DIN 933 yog tias yuav tsum muaj kev sib koom ua ke tag nrho ntawm qhov ntev ntawm lub ntsia liaj qhov rooj.
Qib 8.8 bolts puas tuaj yeem siv rau hauv siab - qhov kub thiab txias?
- Qhov siab tshaj plaws ua haujlwm kub txwv rau Qib 8.8 bolts yog kwv yees li 300 degree.
Qib 8.8 bolts vs. Stainless Steel bolts (A2-70 / A4-70): Koj yuav tsum xaiv qhov twg?
Nyob ntawm koj qhov kev thov tshwj xeeb.
- Lub zog: Qib 8.8 bolts (lub zog tensile: 800-830 MPa) muaj zog dua A2 -70 bolts (700 MPa); yog li ntawd, xaiv Qib 8.8 rau kev sib txuas siab.
- Corrosion kuj: Stainless hlau (Qib 304 / A2 los yog 316 / A4) deb tshaj carbon steel Qib 8.8 bolts.
- Nqe: Qib 8.8 bolts feem ntau raug nqi ntawm ib - thib peb thiab ib - ib nrab tus nqi ntawm stainless hlau bolts.
Dab tsi yog qhov txawv ntawm zinc-plated bolts thiab dub- oxide bolts?
- Zinc plating yuav tsum tau siv ib txheej zinc rau ntawm lub ntsia liaj qhov rooj ntawm qhov chaw - los ntawm electroplating los yog kub -dip galvanizing - los muab kev tiv thaiv xeb.
- Kev ua tiav ntawm cov oxide dub yuav ua rau cov yeeb yaj kiab dub oxide nyias ntawm cov ntsia hlau saum npoo los ntawm cov tshuaj oxidation tshuaj; nws cov xeb- muaj peev xwm tiv thaiv tau tsawg heev.
Hais txog Zhengzhou Huitong Pipeline Equipment Co., LTD.
HT PIPE yog ib tug zoo-paub stockist thiab exporter. Peb yog cov khoom siv stainless / carbon / npib tsib xee alloy khoom xa khoom nrog 15+ kev xa tawm. Peb tsis tsuas yog muab cov kav dej, phaj, puag ncig, tab sis kuj yog cov yeeb nkab fittings, flanges, thiab lwm yam. Tiv tauj peb kom paub ntau ntxiv thiab cov nqi dawb.
Tus sau: Chloe Pu (5 xyoos hauv stainless hlau, nickel alloy, thiab carbon steel kev lag luam)
Tshaj tawmHnub tim: Lub Plaub Hlis 15, 2026 (Beijing Time)
Cim npe nrov: qib 8.8 hex ntsia liaj qhov rooj, Tuam Tshoj, manufacturers, hoobkas, nqe, customized
