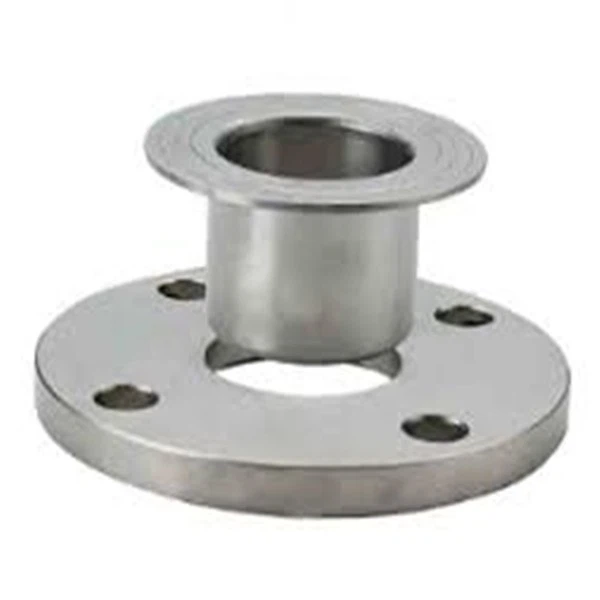

A105 Flange

Hom: SO, SW, BL, WN, LJ, Spectacle, Orifice ect.
Loj: 1/2"-48", DN10-DN4000
Chav Kawm: 75#-2500#, PN6-PN100
Txuj: ASME, DIN, EN, JIS, BS

Xa kev nug

Carbon Steel SA 105 Weld Neck Flange, ASTM A105 Dig Muag Flange tsum, SA 105 Weld Neck Flange Chaw tsim tshuaj paus, Saib ASME B16.5 Carbon Steel A105 Txo Flange Kub Ntsuas

Carbon Steel SA 105 Flange txhais tau tias cov hlau flange ua los ntawm ASTM A105 cov khoom. ASTM A105 yog cov khoom siv ntawm carbon steel forgings rau piping daim ntawv thov, ASTM A105 dig muag Flange yog siv los tsim cov hlau flanges thiab steel forged yeeb fittings. A105 yog cov khoom siv carbon ntau tshaj plaws hauv ANSI thiab ASME tus qauv. SA 105 Weld Neck Flanges raws li peb paub yog siv los txuas ob lub kav dej, twj thiab li qub.Carbon Steel Flangesnpog cov pa roj carbon steel piping Cheebtsam uas yog siv rau hauv lub tshuab siab thiab ua haujlwm ntawm qhov kub thiab txias.

Qhov no yog cov khoom siv carbon steel. Cov ASME B16.5 Carbon Steel A105 Txo Flanges feem ntau yog siv rau hauv cov ntawv thov xws li kev lag luam tshuaj thiab lwm yam kev siv. High corrosion kuj thiab durability zog yog muaj. Txhawm rau kom ntseeg tau tias kev xa khoom tsis zoo, kev ntim khoom zoo yog ua tiav kom cov khoom raug xa mus rau qhov chaw xav tau. Carbon steel A105 flanges xav tau kub xws li 500 degree txog 550 degree. Lub flange ace yam xav tau yog lub ntsej muag tiaj tus, tsa ntsej muag, lub nplhaib hom. Qhov no suav nrog qis feem pua ntawm carbon, manganese, thiab silicon muaj cov hlau zoo ib yam li AISI 1330.

Daim ntawv loj ntawm Carbon Steel A105 Flange

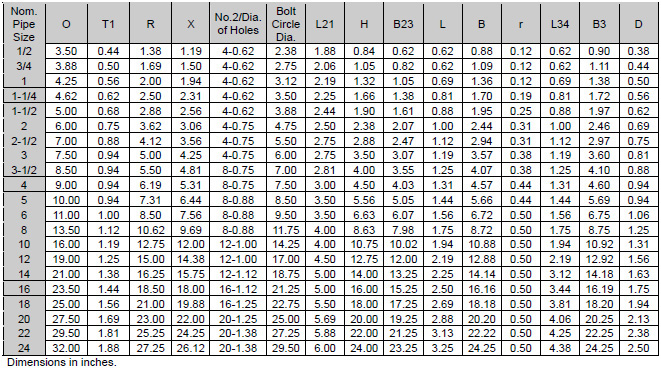

Size Chart Of Carbon Steel A105 Flange

Txheej	Anti-xeb xim, Zinc Plated, Roj Dub Xim, Txias thiab Kub Dip Galvanized, Daj Pob tshab
Feem ntau hom	Forged / Threaded / Screwed / Phaj
Daim ntawv pov thawj	EN 10204/3.1B Raw Materials Certificate 100% Kev Tshawb Fawb Txog Kev Tshawb Fawb Daim Ntawv Qhia Thib Peb Kev Tshawb Fawb, thiab lwm yam
Cov txheej txheem tsim khoom	Forged, Thaum tshav kub kub kho thiab machined
Txuas Hom / Flange ntsej muag hom	Ntiv nplhaib hom Joint (RTJ), Lub ntsej muag tiaj tus (FF), Loj txiv neej-poj niam (LMF), tsa ntsej muag (RF), Lap-Joint ntsej muag (LJF), Txiv neej Me (SMF), Tus nplaig me, tus nplaig loj & zawj , Groove
Tsim tshwj xeeb	Raws li koj daim duab AS, ANSI, BS, DIN thiab JIS 15 NB (1/2 ") rau 200 NB (8") Kev sib npaug thiab txo qis kev teeb tsa
Kuaj	Hydrostatic kuaj tshuab, X-ray detector, Direct-reading Spectrograph, UI trasonic flaw detector, Sib nqus particle detector
Khoom siv	Bending tshuab, Pushing Tshuab, Xovxwm tshuab, hluav taws xob bevelling tshuab, Sand-blasting tshuab thiab lwm yam
Keeb kwm	Indian / West Europe / Nyiv / USA / Korean
Chaw tsim tshuaj paus ntawm	ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE thiab lwm yam. : -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS / KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange BS: BS4504, BS3293, BS1560, BS10 German (DIN) AS 2129: Table D; Rooj E; Table H ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 ANSI: ANSI B16.5, ANSI B16.47 (API605), MSS SP44, ANSI B16.36, ANSI B16.48 American txuj (ANSI) British txuj (BS) ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings DIN 2527, DIN 2566, DIN 2573, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN6 DIN3, DIN 261 Qauv: DIN 2635 DIN 2636, DIN 2637, DIN 2638 Lwm tus qauv: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SAB 1123; NFE29203; UNI2276
Kev siv & kev siv	Nuclear zog (feem ntau seamless). Bitumen hloov kho. Petrochemicals thiab acids. Hnyav roj refineries.
Material Test Certificate (MTC) as per EN 10204 3.1 thiab EN 10204 3.2, Test Certificate NACE MR0103, NACE MR0175

Qib A105 Carbon Steel Flanges Chemical Composition

TSEEM CEEB	COMPOSITION, %
Cov pa roj carbon	0.35 max
Manganese	0.60-1.05
Phosphorus	0.035 max
Sulfur	0.040 max
Silicon	0.10-0.35
Tooj	0.40 max (1)
Nickel	0.40 max (1)
Chromium	0.30 max (1-2)
Molybdenum	0.12 max (1-2)
Vanadium	0.08 max

Carbon Steel A105 Flange Lub cev muaj zog

Qhov ceev (lb / cu. in.)	0.284
Specific Gravity	7.9
Thaum tshav kub kub tshwj xeeb (Btu/lb/Deg F - [32-212 Deg F])	0.107
Melting Point (Deg F)	2740
Thermal conductivity	360
Mean Coeff Thermal Expansion	6.7
Modulus ntawm Elasticity Tension	30
Modulus ntawm Elasticity Torsion	11

Carbon Steel A105 Flange Mechanical Properties

Mechanical Properties	Kev xav tau
Tensile zog, min, psi [MPa]	70000 [485]
Yield zog, min, psi [MPa]	36000 [250]
Elongation, min, %	30
Kev txo qis, min,%	30
Hardness, HB, max	187
