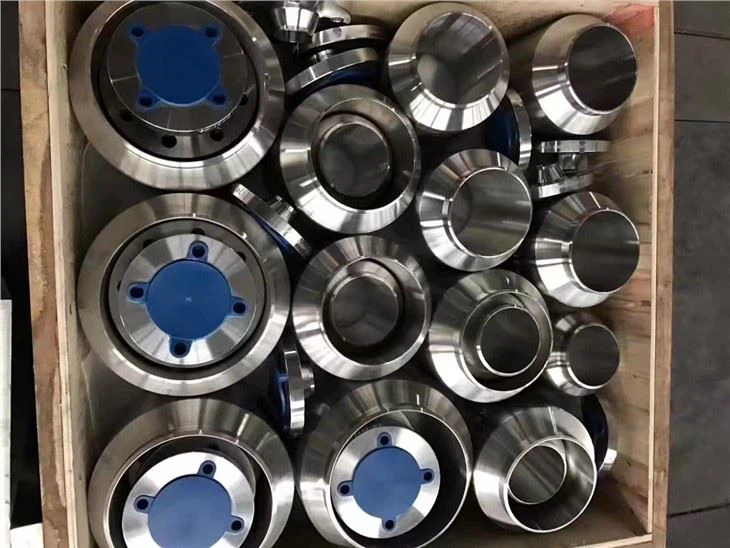

ASTM A350 Qib LF2 Wn Flange
Hom: SO, SW, BL, WN, LJ, Spectacle, Orifice ect.
Loj: 1/2"-48", DN10-DN4000
Chav Kawm: 75#-2500#, PN6-PN100
Txuj: ASME, DIN, EN, JIS, BS
Cov hlau astm a350 Qib LF2 wn flange yuav tsum raug tua tag nrho thiab nplua-grain. Lub sa-350 lf2 flange npog ntau qib thiab cov chav kawm xws li Qib LF1, Qib LF2, Qib LF3, Qib LF5, Qib LF6, Qib LF9, Qib LF787; thiab Chav Kawm 1, Chav Kawm 2, Chav Kawm 3. Tag nrho cov forgings muab los ntawm astm a350 lf2 flanges manufacturers feem ntau kuaj ultrasonically.
Nyob rau tib lub sijhawm, ASTM A350 Qib LF2 yog lub hom phiaj dav dav uas tsis tshua muaj cov pa roj carbon steel feem ntau nkag rau hauv cov txheej txheem normalized, normalized thiab tempered lossis quenched thiab tempered mob. ASTM A350 Qib LF2 Wn Flange feem ntau yog tus cwj pwm los ntawm lub zog nruab nrab thiab kev cuam tshuam toughness thiab yog dav siv hauv kev tsim cov flanges thiab forged fittings. Cov ntawv thov ntawm cov ASME SA 350 GR LF2 Weld Neck Flanges sib txawv hauv kev lag luam roj thiab roj, kev lag luam tshuaj thiab kev lag luam. Carbon Steel A350 LF2 Flanges yog siv rau kev pabcuam kub.

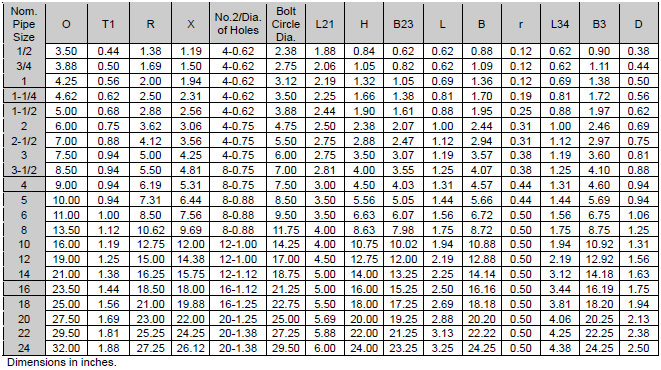

Daim Ntawv Qhia Loj Ntawm Carbon Steel A350 LF2 Flange
ASTM A350 LF2 Vuam Neck Flange Cov Khoom Siv Tshuaj
|
C feem pua |
Mn feem pua |
Si feem pua |
S feem pua |
P feem pua |
Cr feem pua |
Nws feem pua |
|
0.30 max |
0.6/1.35 |
.15/.30 |
040 max |
035 max |
0.30 max |
0.40 max |
LTCS A350 LF2 Dig Muag Flange Mechanical Properties
|
Qib/Class |
Tensile zog |
Yield zog, min. |
Elongation, min. |
Hardness, max. |
||
|
ksi ua |
MPa |
ksi ua |
MPa |
feem pua |
HBW |
|
|
LF2 CL1 |
70–95 |
485–655 |
36 |
250 |
22 |
197 |
|
LF2 CL2 |
70–95 |
485–655 |
36 |
250 |
22 |
197 |
