Kub Muag ASTM B619 B622 B474 B626 N10276 2.4819 Alloy C276 Hastelloy C-276 Welded Seamless Yeeb Nkab Tube Nqe Ib Kg

Zhengzhou Huitong Pipeline Equipment Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom kub muag astm b619 b622 b474 b626 n10276 2.4819 alloy c276 hastelloy c-276 welded seamless yeeb nkab nqe ib kg hauv Suav teb. Peb sov siab txais tos koj los yuav peb cov muag kub astm b619 b622 b474 b626 n10276 2.4819 alloy c276 hastelloy c-276 welded seamless yeeb nkab nqi ib kg. Peb lub Hoobkas kuj lees txais cov kev txiav txim customized. Thov pub dawb kom txaus siab rau peb cov nqi sib tw thiab kev pabcuam zoo heev.

Hastelloy C276 Pipe (UNS N10276, 2.4819) yog npib tsib xee-chromium-molybdenum-tungsten alloy uas nthuav tawm tshwj xeeb corrosion kuj. Raws li cov chaw tsim khoom, peb tsim ob hom seamless thiab welded raws li cov qauv xws li ASTM B619, B622, B474, thiab B626.

Qauv:ASTM B622 (Seamless), ASTM B619 (Welded), ASTM B474, ASTM B626
Corrosion Resistance: Resistant pitting, crevice corrosion, thiab kev nyuaj siab corrosion cracking; resistant rau ob qho tib si oxidizing thiab txo cov xov xwm.
Siab -Tsub: Khaws lub zog ntawm qhov kub siab txog 425℃(800℃F).
Qhov ntevSeamless yeeb nkab 1/2 "- 12", Welded yeeb nkab 1/2 "- 48"
Mechanical Properties: Tensile Strength Ntau dua lossis sib npaug rau 690 MPa (Ntau dua lossis sib npaug rau 100 ksi); Yield zog (0.2% offset) Ntau dua lossis sib npaug rau 283 MPa (Ntau dua lossis sib npaug rau 41 ksi); Elongation Ntau dua lossis sib npaug li 40%
Qhov ceev: 8.89 g / cm³
Melting Point:1370-1425 ° C
Modulus ntawm ElasticityQhov siab: 205 GPa
Phab ntsa Thickness: SCH5S – XXS
Kev tsim khoom: Kub dov, kos duab txias, ua haujlwm kub, ua haujlwm txias
Daim ntawv thov:Chemical Reactors, Flue Gas Desulfurization, Nuclear Power Plants, Pharmaceutical Equipment, Marine Engineering.

Hastelloy C276 Pipe Nqe Ib Kg

Zhengzhou Huitong Pipeline Equipment Co., Ltd. Daim ntawv pov thawj:

✅ ISO 9001: 2015

✅ EN 10204 3.1 Cov ntaub ntawv pov thawj

✅ 100% PMI (Positive Material Identification)

✅ Tsis yog -Kev Ntsuas Kev Ntsuas: Kev Ntsuas Ultrasonic (UT), Kev Ntsuas Tam Sim No (ECT), Kev Ntsuas Hydrostatic

✅ Thib peb-Kev Txhawb Kev Tshawb Fawb: SGS, BV, TÜV

✅ 15 Xyoo ntawm kev paub hauv Exporting Nickel Alloy Tubing



Hastelloy C276 yog npib tsib xee-molybdenum-chromium alloy uas tiv taus corrosion hauv ntau yam lag luam. Nws muaj kev tiv thaiv zoo heev rau pitting, crevice corrosion, thiab kev ntxhov siab corrosion tawg nyob rau hauv ib puag ncig hnyav. Cov hlau no tau siv dav hauv kev ua tshuaj lom neeg, tsim hluav taws xob, tswj kev ua qias tuaj, thiab kev lag luam petrochemical. ASTM B619, B622, B474, thiab B626 tus qauv muab cov lus qhia tshwj xeeb rau Hastelloy C276 yeeb nkab.



Kev tsim cov txheej txheem koom nrog hauv kev tsim cov kav dej Hastelloy C276 suav nrog cov txheej txheem txias - kos thiab kub - cov txheej txheem tiav. Cov kav dej kub - tiav lawm yog tsim los ntawm cua sov lub billet mus rau qhov kub thiab txias nyob rau hauv thaj tsam ntawm 1100 mus rau 1275℃thiab ces dov nws mus rau hauv cov duab yuav tsum tau. Ntawm qhov tod tes, txias- cov kav dej tau kos los ntawm lub pob zeb preheated thiab tau dhau los ntawm kev tuag los ua cov yeeb nkab.

ASTM B622 UNS N10276 Khoom Properties

Hastelloy C276 yeeb nkab muaj cov khoom siv zoo heev xws li lub zog tensile siab, zoo ductility, thiab zoo heev tiv thaiv kev ntxhov siab corrosion tawg. Cov hlau ua pov thawj zoo heev rau ob qho tib si oxidizing thiab txo cov xov xwm, ua rau nws zoo tagnrho rau ntau yam kev lag luam. Cov kav dej no kuj muaj qhov tshwj xeeb tiv thaiv rau siab - qhov kub thiab txias.

Hu rau tam sim no

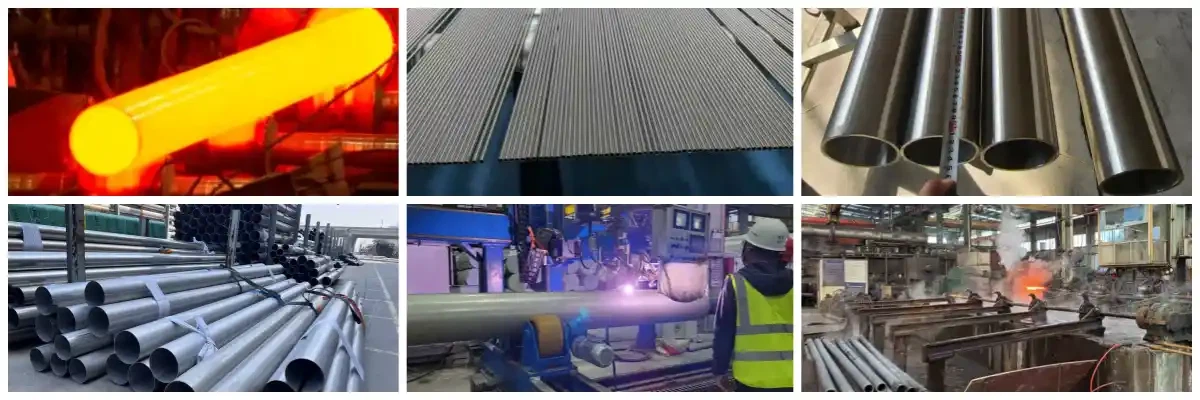

Alloy C276 Seamless Yeeb Nkab Fabrication

• Melting thiab Forging, VIM (Nqus Induction Melting) + VAR (Nqus Arc Remelting)
• Piercing (Lub steel billet yog rhuab mus rau 1150-1250℃.)
• Kub Rolling / Kub Extrusion
• Txias Drawing / Txias Rolling
• Intermediate Annealing
• Tshuaj Annealing (Tshav kub rau 1100-1180 degree, ces sai sai dej-txias.)
• Straightening thiab Finishing
• Pickling
• Kev kho saum npoo
• Tsis yog -Kev Ntsuas Kev Puas Tsuaj (NDT)

Hastelloy C276 Seamless vs Welded Pipes Tubes

Seamless Yeeb Nkab:

• Tsim los ntawm ib puag ncig steel billet-tom qab cua sov- los ntawm cov txheej txheem xws li tho, extrusion, thiab txias kos duab / dov; nws muaj kiag li tsis muaj weld seams.
• Outer Diameter (OD) Tsawg dua lossis sib npaug li 273 hli (kwv yees . 10 ntiv tes); tsim nyog rau me me - cov ntawv siv tho qhov uas muaj cov corrosive thiab siab - cov xwm txheej siab.
• Tus nqi siab dua: $ 50 - 100 / kg.

Welded Yeeb Nkab:

• Tsim los ntawm coiling kub- dov los yog txias - dov daim hlau, siv txoj kev vuam xws li TIG, plasma, ERW, lossis EFW.
• Outer Diameter (OD) tuaj yeem ncav cuag 1219 mm (48 ntiv tes); haum rau loj - tho qhov xav tau. Tom qab-weld kev kho cua sov yog xav tau, nrog rau 100% tsis yog- kuaj kev puas tsuaj.
• Tus nqi qis: $ 35 - 100 / kg.

Hastelloy C276 Pipe Applications

• Kev lag luam tshuaj
• Nuclear fais fab kev lag luam
• Petrochemical Kev Lag Luam (Cov Roj thiab Roj Tsheb thauj mus los; Refinery thiab Kev Ua Yeeb Nkab)
• Flue Gas Desulfurization (FGD) Systems (Resistant to Acid Flue Gas Corrosion)
• Marine Engineering (Resistant rau Seawater Corrosion)

FAQ:

Tus nqi ntau npaum li cas rau Hastelloy C276 Pipe?

• Hastelloy Seamless tubes nqi ntawm $ 35 txog $ 55 USD / kg, thaum rau welded yeeb nkab nqi $ 25 txog $ 50 USD / kg.
• Tus nqi tshwj xeeb nyob ntawm qhov ntev, phab ntsa thickness, kom muaj nuj nqis, thiab kev lag luam tam sim no. Thov muab cov lus qhia ntxaws ntxaws kom tau txais cov lus hais meej.

Dab tsi yuav tsum tau txiav txim siab thaum yuav C276 Tubing?

• Tus neeg muab khoom muab EN 10204 3.1 Daim Ntawv Pov Thawj Cov Khoom Siv.
• Kev xeem PMI (qhia cov khoom siv qib, tus lej kub, thiab tus qauv).
• Thib peb - ntawv pov thawj tog, xws li SGS lossis TÜV

Dab tsi yog Lub Sijhawm Lead rau C276 Yeeb Nkab?

Cov qauv loj tuaj yeem xa tuaj tsis pub dhau 7 mus rau 15 hnub; kev txiav txim feem ntau xav tau 20 mus rau 40 hnub.

Yam tsawg kawg nkaus Order Quantity (MOQ) rau Alloy C276 Tubing yog dab tsi?

TSIS MUAJ MOQ; thov nrog peb pab neeg muag khoom kom paub meej.

Puas yog C276 Cov Khoom Ua Raws Li Nace Mr0175 Standard?

Yog lawm. C276 yog dav siv nyob rau hauv cov kev pab cuam qaub, thiab cov ntaub ntawv xeem ntawv pov thawj lees tias ua raws li NACE MR0175 / ISO 15156 cov cai yuav muab.

Hais txog Zhengzhou Huitong Pipeline Equipment Co., LTD.

HT PIPE yog ib tug zoo-paub stockist thiab exporter. Peb yog cov khoom siv stainless / carbon / npib tsib xee alloy khoom xa khoom nrog 15+ kev xa tawm. Peb tsis tsuas yog muab cov kav dej, phaj, puag ncig, tab sis kuj yog cov yeeb nkab fittings, flanges, thiab lwm yam. Tiv tauj peb kom paub ntau ntxiv thiab cov nqi dawb.
