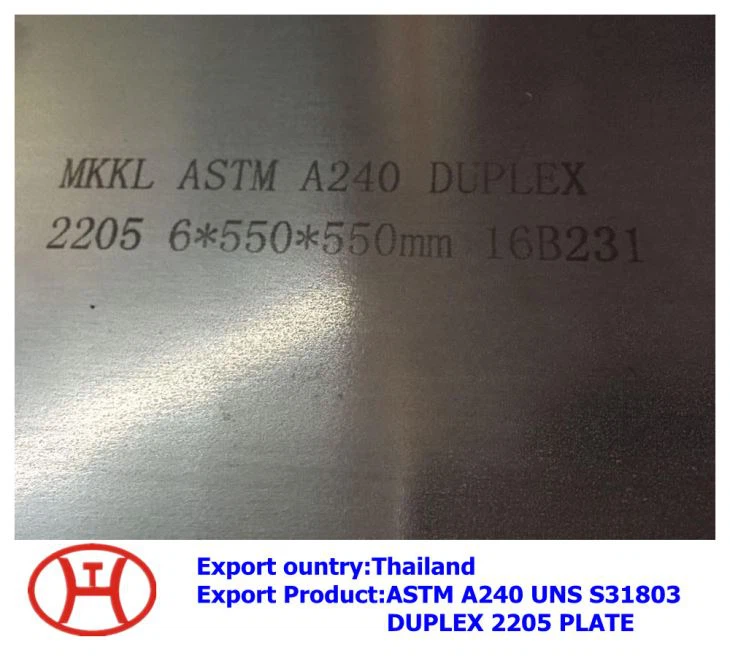

ASTM A240 UNS S31803 DUPLEX 2205 Plate
Hom: Phaj, Sheet, Sawb, Coil
Ntev: 0-12m
Dav: 0-2500mm
Thickness: 0.3-1200 hli
Txheej Txheem: Kub / Cold Rolled
Nto: 1,2D,2B,3,4,6,7
ASTM A240 UNS S31803 Duplex 2205 Phaj piav qhia
A240 S31803 Phaj core zoo yog corrosion kuj thiab siab zog. Nws lub zog tawm los yog ntau tshaj ob npaug ntawm 316L. Pitting kuj sib npaug tus lej (PREN) yog 32-35 (316L tsuas yog 25-28), ua rau nws tiv taus dej hiav txwv, brine, thiab chloride ib puag ncig. Tiv tauj peb kom tau txais kev cai loj thiab luv nqi.
Duplex 2205 Phaj yog tsim los ntawm kev sib xyaw ua ke ntawm austenitic thiab ferritic stainless hlau qib, nws ua raws li tus qauv ASTM A240 / A240M ASME SA240 / SA240M - Specification rau Chromium thiab Chromium-Nickel Stainless Hlau Phaj, Daim Ntawv Thov, thiab Cov Kab Ntau Lawm
ASTM A240 Hom 2205 Daim Ntawv Thov:
- Tshuaj ua kev lag luam
- Kev lag luam roj thiab roj
- Lub zog tsim kev lag luam
- Kev lag luam marine
- Kev lag luam kws tshuaj
- Kev lag luam zaub mov thiab dej haus
- Petrochemical kev lag luam
ASTM A240 S31803 Phaj Specification
| Specification | ASTM A240 / ASME SA240 / NACE MR-0175 |
|
Txuj |
ASTM, AISI, AMS, MLS, EN, JIS, DIN, GOST |
|
Thickness |
1.2-100 hli |
|
Dav |
1000-2000 hli |
|
Ntev |
1000-6000mm |
|
Nto |
2B, No.3, No.4, HL, BA, 8K, Kub dov phaj (HR), Cov ntawv txias txias (CR) |
|
Cov txheej txheem tsim khoom |
Kub dov, txias dov |
|
Duplex Hlau |
SAF 2205 / UNS S31803, SAF 2507 / UNS S32750, S32760, S32205, S32250 |
|
Ntim |
|
| Daim Ntawv Pov Thawj |
|
ASME SA 240 UNS S31803 Chemical Composition
- Chromium (Cr): 22% - 23%
- Nickel (Ni): 4.5% - 6.5%
- Molybdenum (Mo): 3% - 3.5%
- Nitrogen (N): 0.14% - 0.2%
- Cov pa roj carbon (C): 0.03%
- Phosphorus (P): siab tshaj 0.03%
- Sulfur (S): siab tshaj 0.02%
- Manganese (Mn): 2.0% max
- Silicon (Si): 1.0% max
ASME SA 240 UNS S31803 Cov khoom sib npaug
| UNS | Laus British | Euronorm | Swedish SS | Japanese JIS | GB | |
| Tsis muaj | BS | Tsis muaj | Lub npe | |||
| S31803 | 318S13 | 1.4462 | X2CrNiMoN22-5-3 | 2377 | SUS 329J3L | 022Cr22Ni5Mo3N |
Duplex 2205 Phaj tuab npaum li cas?
Peb muab 1.5 hli, 2 hli, 3 hli, 5 hli, 6 hli, 8 hli, 10 hli, 12 hli, 15 hli, 20 hli duplex phaj ntawv strip coil.
ASTM A240 Hom 2205 Phaj Dimension chart
| Phaj Nto tiav | Thickness (hli) | Dav (max mm) |
| 2B - Txias dov, kho cua sov, pickled, daim tawv nqaij dhau phaj | 0.25–8.0 | 2032 |
| 2D - Txias dov, kho cua sov, pickled phaj | 0.4–6.35 | 1524 |
| 2R - Txias dov, qaim annealed phaj | 0.25–3.5 | 1524 |
| 2H - Ua haujlwm hardened phaj | 0.4–6.35 | 1524 |
| Polished phaj | 0.5–4.0 | 1524 |
ASTM A240 UNS S31803 Lub cev muaj zog:
- Qhov ceev: 7.8 g / cm33los yog 0.28 lb/in3
- Melting point: 1350 - 1450℃los yog 2460 - 2640℃F
- Elongation: Tsawg kawg 25%
- Tensile zog: Yam tsawg kawg nkaus 655 MPa lossis 95 ksi
- Yield zog: Yam tsawg kawg nkaus 450 MPa lossis 65 ksi
Duplex Stainless Hlau 2205 Nqe Ib Kg
| Qib | Nqe |
| DSS 2205 Duplex Phaj Nqe | FOB Nqe US $ 1.00- $ 10.00 / Kilogram |
| W.Nr.1.4462 Duplex Phaj | US $2,044.00- $2,247.00 / Tuj |
| ASTM A240 S31803 Duplex Steel Sheet | US $1,799.00- $1,999.00 / Tuj |
| S31803 Stainless Hlau Nqe Ib Kg | US $1.5 - $5.5/kg |
ASTM A240 UNS S31803 Vuam: [Zoo heev]
- TIG welding, submerged arc vuam, shielded hlau arc vuam (SMAW);
- Vuam xaiv: E2209-16 (welding pas nrig), ER2209 (vuam hlau)
Duplex 2205 Cov Khoom Ua Haujlwm thiab Kev Ua Haujlwm: [Zoo]
- Ua haujlwm txias: Bendable, stampable, rollable
- Kub ua haujlwm: Kub forging / kub dov kub ntau yam 1050 ~ 1200 degree
- Machining: Superior txiav kev ua tau zoo piv rau 316L, kev ua haujlwm siab
Duplex 2205 PhajTxoj kev txiav
- Plasma txiav
- Dej- dav hlau txiav
- Laser - txiav
- Sawn cuttings
Qhov twg yog qhov zoo dua, 2205 lossis 316 Stainless Hlau?
2205 kuj muaj kev tiv thaiv zoo rau pitting corrosion. Tsis tas li ntawd, nws muaj lub zog tawm los siab heev, tso cai rau 30-40% txo qhov tuab piv rau 316L, ua rau lub cev hnyav dua thiab cov nqi qis dua.
S31803 Khoom sivCov kev txwv hauv Corrosion Resistance:
- Tsis muaj zog oxidizing acids, xws li concentrated nitric acid;304yog nyiam nyob rau hauv cov ntaub ntawv no;
- Tsis resistant rau muaj zog txo acids xws li concentrated sulfuric acid thiab hydrochloric acid nyob rau hauv high kub;Hastelloy C276los yog 254SMO yog nyiam nyob rau hauv cov ntaub ntawv no.
FAQ
Q: TxogASME SA 240 UNS S31803 Phajtus nqi?
A: Nqe los ntawm ntau yam $ 1 txog $ 5 ib kg, txawv nyob ntawm qhov loj me, phab ntsa thickness, tus neeg muag khoom thiab lwm yam.
Q: Koj puas yog lub Hoobkas tsim khoom?
A: Yog. Factory xeem daim ntawv pov thawj yog xa nrog cov khoom.
Q: Kuv puas tuaj yeem muaj qee qhov qauv ua ntej xaj?
A: Yog lawm, tau kawg. kuaj dawb tab sis koj yuav tsum them tus xa khoom.
Q: Peb puas tuaj yeem tuaj xyuas koj lub tuam txhab?
A: Tau kawg. Peb zoo siab tau muaj koj nyob hauv Suav teb.
Q: Yam tsawg kawg nkaus Order Quantity yog dab tsi?
A: Tsis muaj MOQ.
Q: Cov nqe lus them nqi yog dab tsi?
A: T / T, L / C, Western Union, thiab lwm yam.
Q: Koj lub sijhawm xa khoom yog dab tsi?
A: Rau cov khoom lag luam, peb tuaj yeem xa cov khoom mus rau qhov chaw nres nkoj hauv 7 hnub tom qab tau txais koj qhov tso nyiaj.
Rau lub sijhawm tsim khoom, nws feem ntau xav tau 10 hnub - 35 hnub tom qab tau txais qhov tso nyiaj.
Q: Puas yog nws zoo rau kos kuv lub logo ntawm koj cov khoom?
A: Yog. OEM thiab ODM muaj rau peb.
Q: Peb Lub Tebchaws Exported
A: Indonesia, Is Nrias teb, Singapore, Malaysia, Iran, Russia, UAE, Chile, Nplog, Brazil, South Africa, thiab lwm yam
