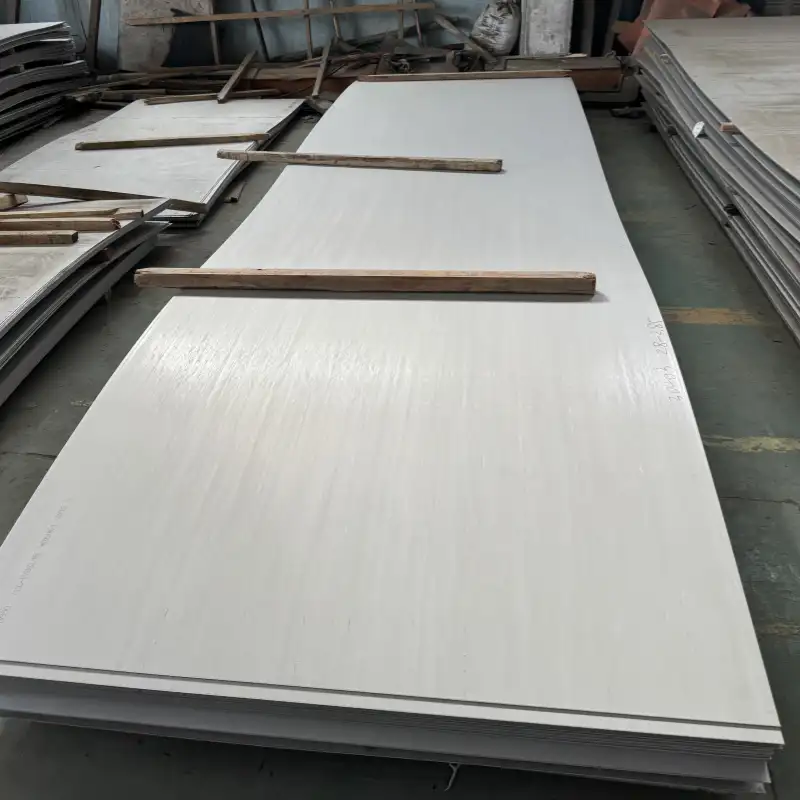

Super Duplex 2507 Phaj
1. Txuj: ASTM A240 / ASME SA240
2. Thickness: 0.3mm - 100 hli
3. Dav: 100 - 2000mm
4. Ntev: Cov neeg siv khoom xav tau
Zhengzhou Huitong Pipeline Equipment Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm super duplex 2507 phaj hauv Suav teb. Peb sov siab txais tos koj mus yuav peb super duplex 2507 phaj. Peb lub Hoobkas kuj lees txais cov kev txiav txim customized. Thov pub dawb kom txaus siab rau peb cov nqi sib tw thiab kev pabcuam zoo heev.
Super duplex 2507 phaj siab zog & Corrosion kuj
Super Duplex 2507 (UNS S32750/F53)muaj 24-26% chromium (Cr), 6-8% nickel (Ni), 3-4% molybdenum (Mo), thiab lwm yam. Super Duplex 2507 Phaj nqe feem ntau$ 3.5- $ 10 / kg hauv 2026, nyob ntawm qhov loj thiab kev txiav txim kom muaj nuj nqis. S32750 nthuav tawm tshwj xeeb tiv thaiv chloride corrosion, pitting corrosion, thiab crevice corrosion . 2507 stainless hlau nthuav tawm lub zog tensile ntawm 800-1000 MPa, yield zog ntawm 550-750 MPa, elongation Ntau dua los yog sib npaug rau 25%, thiab hardness ntawm 20B-200. Nws yog feem ntau siv hauv tshuaj, petrochemical, thiab seawater khoom.
Super Duplex 2507 Phaj Nqe Ib Kg
| Thickness (hli) | Dav (mm) | Tus nqi ntau (USD / kg) | Nqe Ntau (USD/Ton) |
| 3.0 - 10.0 | 1500 / 2000 | $5.20 – $9.50 | $5,000 – $9,500 |
| 12.0 - 50.0 | 2000 / 2500 | $4.80 – $8.90 | $4,500 – $8,900 |
| 60.0 - 100.0 | Kev cai | $5.50 – $9.80 | $5,300 – $9,800 |
Factory Super Duplex Stainless Steel Supplier, ASTM A240 Hom 2507 Phaj Sheet Manufactures,Tiv tauj pebrau Nqe Thiab Customized Size Information.
Zhengzhou Huitong Pipeline Equipment Co., Ltd. Daim ntawv pov thawj:
✅ ISO 9001: 2015
✅ MTC 10204 3.1 3.2
✅ 100% PMI (Positive Material Identification)
✅ Ultrasonic Testing (Rau ASME VIII)
✅ Third-Kev Tshawb Fawb Kev Tshawb Fawb (SGS/BV/DNV/LR)
✅ NACE MR0175 / ISO 15156
alloy 2507 duplex stainless hlau phaj khoom Khoom:
- Inorganic acids resistant rau chloride nres
- Haum rau siv hauv dilute hydrochloric acid
- Tsawg carbon cov ntsiab lus rau kev txhim kho kev tiv thaiv rau intergranular corrosion
- Superior corrosion kuj thiab lub zog piv rau duplex 2205
- Resistance rau crevice corrosion
- Siab zog
- Haum rau daim ntawv thov txog li 600℃F (315 degree)
- Tsawg coefficient ntawm thermal expansion
Super Duplex 2507 Phaj Specifications
| Specification | ASTM A240 / ASME SA240 / NACE MR-0175 |
|---|---|
| Tolerances |
EN 10258, EN 10151, EN 10088 |
| Qhov ntau thiab tsawg hauv Tshuag |
|
| Thickness | 0.1-100 hli Thk |
| Dav | 10-2500 hli |
| Ntev | 2m, 2.44m, 3m, lossis raws li xav tau |
| Ua kom tiav | 2B, 2D, BA NO (8), Cov ntawv txias txias (CR), Kub dov phaj (HR), No.1 tiav |
| Stock Form ntawm |
Phaj, Sheet, Coils, Foils, Sawb, Flats, Clad Phaj, thiab lwm yam |
| Peb Muab |
|
Super Duplex 2507 Stainless Hlau Qhov ntau thiab tsawg
| Thickness (hli) | Qhov ntev |
|---|---|
| 1.5 | 3m x 1.5m |
| 2.0 | 3m x 1.5m |
| 3.0 | 3m x 1.5m |
| 5.0 | 3m x 1.5m / 4m x 2m |
| 6.0 | 3m x 1.5m / 4m x 2m / 6m x 2m |
| 8.0 | 3m x 1.5m / 4m x 2m / 6m x 2m |
| 10.0 | 3m x 1.5m / 4m x 2m / 6m x 2m |
| 12.0 | 3m x 1.5m / 4m x 2m / 6m x 2m |
| 15.0 | 4m x 2m / 6m x 2m |
| 20.0 | 4m x 2m / 6m x 2m |
Super Duplex Stainless Hlau 2507 Nqe
| 1 hli super duplex 2507 daim ntawv | US $ 2 - 10.2 / kg |
| 5 hli super duplex saf 2507 phaj | $5500-$7,000 / Tuj |
| 6 hli alloy 2507 duplex stainless hlau phaj | US $3,500-$6,000/Ton |
| 3mm 4mm duplex ss a240 s32750 phaj ntawv | US $2886-$3,586 / Tuj |
S32750 Cov khoom sib npaug
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex 2507 Phaj / Sheet | 1.4410 | S32750 / S32760 |
2507 Phaj rau Roj & Roj Kev Lag Luam
- Offshore platforms
- Subsea pipelines
- Cov hlab ntsha siab
- Thaum tshav kub kub exchangers
2507 Stainless Hlau Phaj rau Seawater & Marine
- Desalination nroj tsuag
- Seawater piping systems
- Marine structural Cheebtsam
- Cov twj dej ntsev
Super Duplex 2507 Vs 316
| Lub zog | Lub zog tawm los ntawm 2507 yog kwv yees li peb npaug ntawm 316. |
| Chloride Corrosion Resistance | 2507 has a PREN value >40, thaum 316 tus nqi PREN tsuas yog 24-26. |
| Kub kub | 316 tuav qhov kom zoo dua, muaj peev xwm ua haujlwm ruaj khov hauv qab 800 degree; 2507 tsis haum rau lub sijhawm ntev tshaj 300 degree |
| Nqe | 2507 Nqe feem ntau raug nqi 2-3 npaug ntawm 316 |
2507 vs . 2205 vs . 316L
| Feature | 316L Stainless hlau | TIAB SA 2205 | Super Duplex 2507 |
| PREN Tus nqi | 24 - 26 | 33 - 35 | 41 - 43 |
| Yield zog | Tsawg (~ 290 MPa) | Nruab nrab (~ 450 MPa) | Siab (~ 550 MPa) |
| Corrosion Resistance | Nruab nrab | Siab | Tshwj xeeb (Seawater) |
| Tus nqi txheeb ze | $ (Lub hauv paus) | $$ (+40%) | $$$ (+80-100%) |
| Zoo tshaj rau | Khoom noj khoom haus / General Industry | Marine/Chemical | Offshore / Desalination |
Tshuab dhos
Alloy 2507 qhia txog kev ua haujlwm siab ua haujlwm siab. Nws hardens sai heev thaum txiav, stamping, thiab dabtsi yog khoov, yuav tsum tau tshwj xeeb cov cuab yeej thiab cov tswv yim.
Vuam
Saf 2507 super duplex tuaj yeem welded siv Shielded Hlau Arc Vuam (SMAW), Gas Tungsten Arc Vuam (GTAW), Plasma Arc Vuam (PAW), thiab Submerged Arc Vuam (SAW). 2507/P100 vuam hlau yog pom zoo. Tswj interpass kub hauv qab 300℃F (149 degree).
Kev kho cua sov
super duplex 2507 phaj yam tsawg kawg nkaus cov tshuaj annealing kub yog 1925℃F (1052 degree), ua raws li huab cua ceev los yog dej txias.
Alloy 2507 Duplex Stainless Steel Sheet Suppliers
HT PIPE yog ib tug zoo-paub stockist thiab exporter. Peb yog ss duplex khoom muag nrog 15+ kev xa tawm. Peb tsis tsuas yog muab cov kav dej, phaj, puag ncig, tab sis kuj yog cov yeeb nkab fittings, flanges, thiab lwm yam. Hu rau peb kom paub ntau ntxiv thiab cov nqi dawb.
Peb Cov Kev Kawm Cov Neeg Siv Khoom
| Sr. Tsis muaj. | Yam khoom | MOC | SIZE | Qty. |
| 1 | Phaj | SA 240 UNS S32750 | 5 hli x 1300 x 6000 | 100 |
| 2 | Phaj | SA 240 UNS S32750 | 16 hli x 610 x 1830 | 10 |
| 3 | Phaj | SA 240 UNS S32750 | 6 x 870 x 3950 mm | 50 |
| 4 | Phaj | SA 240 UNS S32750 | 8 hli x 440 x 1320 | 20 |
| 5 | Phaj | SA 240 UNS S32750 | 20mm x 700 x 2100 hli | 50 |
| 6 | Phaj | SA 240 UNS S32750 | 45 x 220 x 165 mm | 15 |
FAQ:
Q: Tus nqi ntawm Super Duplex 2507 phaj yog dab tsi xyoo 2026?
A: Tus nqi nruab nrab yog li ntawm $ 3.5 txog $ 10 toj ib kg nyob ntawm thickness, tiav, thiab daim ntawv pov thawj yuav tsum tau.
Q: Dab tsi kev lag luam siv SDSS 2507 phaj?
A: Kev lag luam muaj xws li offshore roj & roj, seawater desalination, chemical processing, marine engineering, thiab fais fab tuag.
Q: Alloy 2507 phaj puas tuaj yeem welded?
A: Yog. Nws txhawb TIG, MIG, SAW, thiab GTAW vuam txheej txheem, tab sis kev tswj cov cua sov yog ib qho tseem ceeb kom tsis txhob muaj cov theem ntawm sigma.
Q: Tus nqi PREN ntawm Super Duplex S32750 yog dab tsi?
A: Tus PREN (Pitting Resistance Equivalent Number) rau 2507 feem ntau yog siab dua 41, kom ntseeg tau tias nws tuaj yeem tiv taus cov tshuaj chloride hnyav uas 316L lossis 2205 yuav ua tsis tiav.
Q: Qhov txawv ntawm S32750 thiab S32760 yog dab tsi?
A: S32760 (Zeron 100) muaj me me ntxiv ntawm tooj liab thiab tungsten (kwv yees . 0.7% txhua). Cov kev sib ntxiv no tuaj yeem muab qhov zoo dua corrosion kuj nyob rau hauv cov ntxhia acids tshwj xeeb. Tab sis rau feem ntau seawater thiab oilfield daim ntaub ntawv, 2507 yog tus qauv xaiv.
Q: Koj puas yog lub Hoobkas tsim khoom?
A: Yog. Factory xeem daim ntawv pov thawj yog xa nrog cov khoom.
Q: Kuv puas tuaj yeem muaj qee qhov qauv ua ntej xaj?
A: Yog lawm, tau kawg. kuaj dawb tab sis koj yuav tsum them tus xa khoom.
Q: Peb puas tuaj yeem tuaj xyuas koj lub tuam txhab?
A: Tau kawg. Peb zoo siab tau muaj koj nyob hauv Suav teb.
Q: Yam tsawg kawg nkaus Order Quantity yog dab tsi?
A: Tsis muaj MOQ.
Q: Cov nqe lus them nqi yog dab tsi?
A: T / T, L / C, Western Union, thiab lwm yam.
Q: Koj lub sijhawm xa khoom yog dab tsi?
A: Rau cov khoom lag luam, peb tuaj yeem xa cov khoom mus rau qhov chaw nres nkoj hauv 7 hnub tom qab tau txais koj cov nyiaj tso cia.
Rau lub sijhawm tsim khoom, nws feem ntau xav tau li 10 hnub - 35 hnub tom qab tau txais qhov tso nyiaj.
Q: Puas yog nws zoo rau kos kuv lub logo ntawm koj cov khoom?
A: Yog. OEM thiab ODM muaj rau peb.
Q: Peb Lub Tebchaws Exported
A: Indonesia, Is Nrias teb, Singapore, Malaysia, Iran, Russia, UAE, Chile, Nplog, Brazil, South Africa, thiab lwm yam
