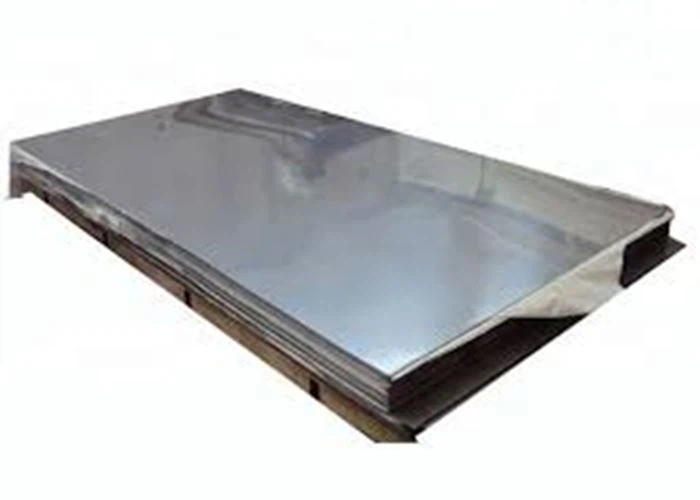

ASTM A{0}}L phaj
Hom: Phaj, Sheet, Sawb, Coil
Ntev: 0-12m
Dav: 0-2500mm
Thickness: 0 3-1200 hli
Txheej Txheem: Kub / Cold Rolled
Nto: 1,2D,2B,3,4,6,7
Kub Rolled Stailess Steel ASTM A240 316L Phaj Sheet Chev Strip, Txias Rolled ASTM A240 316L Hlau Phaj, 316 SS Phaj, ASTM A240 316L CR Phaj, ASTM A240 Hom 316L Phaj , UNS S31603 Phaj.
ASTM A240 316L Phaj yog ua los ntawm austenitic stainless hlau. Kub Rolled Stailess Steel ASTM A240 316L Phaj muaj qib siab dua ntawm nickel dua li 304 muab Cold Rolled ASTM A240 316L Hlau Phaj txhim kho corrosion kuj tshaj 304 qib. 316 SS Phaj yog qhov kev xaiv zoo rau kev siv dej hiav txwv vim muaj qhov zoo ntawm huab cua tiv thaiv corrosion. 316L yog qhov hloov pauv carbon tsawg rau 316 qib.
Qib 316L (L= cov pa roj carbon tsawg)) yog tib yam li 316 tshwj tsis yog nws muaj kev tsom xam cov pa roj carbon monoxide ntxiv, qhov zoo ntawm qhov yog tias nws txwv tsis pub muaj kev puas tsuaj nag lossis daus hauv 800º F txog 1500º F ntau yam uas yuav tshwm sim los ntawm welding qhov hnyav dua. Yog li ntawd, ASTM A240 316L Phaj yog dav siv nyob rau hauv hnyav ntsuas welded Cheebtsam. Cov ASTM A240 316L CR Phaj no tseem muaj kev nkag siab ntau dua, kev ntxhov siab-rau-rupture, thiab lub zog tensile ntawm qhov kub siab. Ntxiv rau qhov zoo heev corrosion kuj thiab lub zog zog, lubASTM A240 Stainless Hlau Phaj Sheetskuj muab zoo heev fabricability thiab formability uas yog ib yam ntawm cov austenitic stainless hlau.
|
Yam yuav tsum tau muaj tshuaj |
|
|
Carbon Max |
0.03 |
|
Manganese Max |
2 |
|
Phosphorus Max |
0.045 |
|
Sulfur Max |
0.03 |
|
Silicon Max |
0.75 |
|
Chromium Range |
16-18 |
|
Nickel Range |
10-14 |
|
Nitrogen Max |
0.1 |
|
Molybdenum Range |
2-3 |
|
Mechanical Properties |
|
|
Tensile zog Min |
70 ksg |
|
Yield zog Min |
25 ksg |
|
Elongation Min |
40% |
ASTM A240 Stainless Hlau Phaj /ASTM A240 Stainless Hlau PhajCoil
ASTM A240 yog Standard Specification rau Chromium thiab Chromium-Nickel Stainless Hlau Phaj, Sheet, thiab Sawb rau Cov Nkoj Siab thiab rau Kev Siv Dav Hlau
Txuj: ASTM A240
Qib: 301, 304, 304L, 316, 316L, 316Ti, 321
Kev Xa Khoom: Txias Rolled lossis Kub Rolled.
Muaj Dimension:
Dimension for Coil: Thickness: 0.3 hli - 3 hli Dav: 1000 hli, 1219 hli, 1500 hli
Dimension rau Phaj / Sheet: Thickness: 0.3 hli - 3mm Dav: 1000 hli, 1219 hli, 1500 hli
Ntev: 2000mm, 2438mm, 3000mm, 3048mm, 6000mm
ASTM A240 qib 301 304 304L 316 316L 321 stainless hlau phaj yog siv rau cov yeeb nkab thiab Tube raw cov ntaub ntawv, Siab Vessels, Khoom noj khoom haus thiab dej haus, dej kho, cia Tanks, Acid txheej txheem khoom, Kitchenware, Mechinary, metalwire , Petrochemical, kho kom zoo nkauj, Cov Khoom Siv Hluav Taws Xob, Cov Khoom Siv Hluav Taws Xob, thiab lwm yam.
Cim npe nrov: astm a240 316l phaj, Suav teb, manufacturers, hoobkas, nqe, customized
