ASTM A{0}}L phaj
Hom: Phaj, Sheet, Sawb, Coil
Ntev: 0-12m
Dav: 0-2500mm
Thickness: 0.3-1200 hli
Txheej Txheem: Kub / Cold Rolled
Nto: 1,2D,2B,3,4,6,7

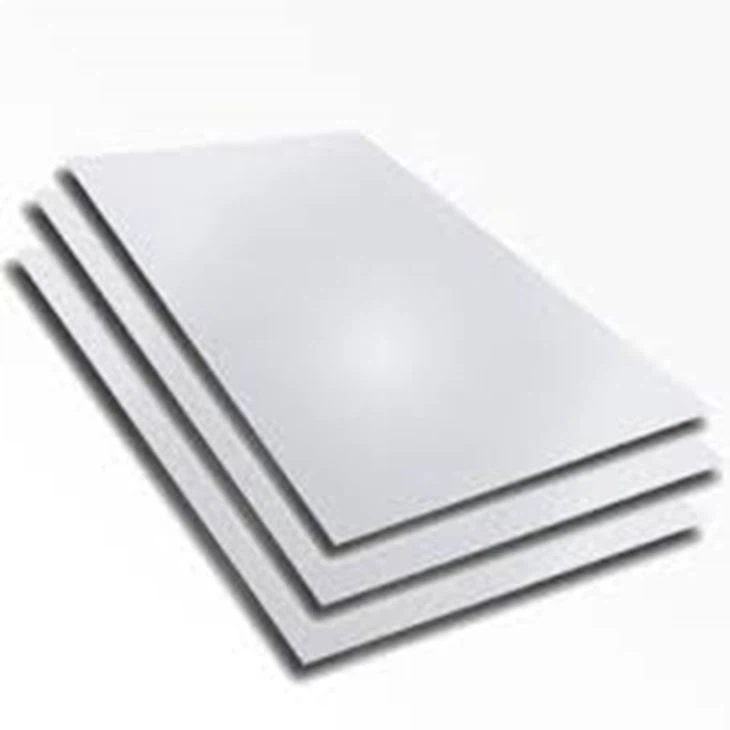

ASTM A240 904L phaj piav qhia
ASTM / ASME SA240 Stainless Hlau 904L (UNS NO8904) Cov Ntawv thiab Daim Ntawv Pov Thawj muaj ntau yam khoom thiab cov yam ntxwv. Cov ASTM A240 ASME SA240 904L Steel Phaj tau txais cov khoom no thiab cov yam ntxwv los ntawm cov khoom muaj nyob hauv lawv cov tshuaj muaj pes tsawg leeg. Cov ASTM A240 904L daim hlau no muaj cov cuab yeej tiv thaiv corrosion.
Cov noASTM A{0}}L steel phajmuaj qhov tseeb qhov tseeb. Cov Ntawv Stainless Hlau 904L no tuaj yeem txhawb nqa kev kub siab & kub load. Qib TP904L Stainless Hlau Shim Sheets kuj muaj qhov tsis muaj xeb.
Cov ASTM A240 904L Phaj no yog tsim los ntawm siab- cov ntaub ntawv zoo, thiab yog li SUS 904L Phaj uas tau tsim los kuj yog cov khoom zoo. Cov AISI Steel 904L Cov Ntawv no kuj yuav tsum tau ua ntau yam kev ntsuam xyuas txhawm rau kuaj thiab txhim kho cov khoom zoo kom lawv ua tau zoo.

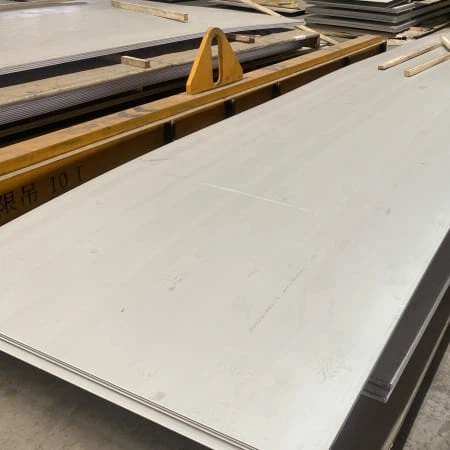

Kub Rolled Steel Sheet:
Kub dov steel ntawv thiab phaj muab ib tug rougher nto tshaj txias dov hlau thiab phaj.
Thaum galvanized nws kuj tseem siv tsis tu ncua nyob rau hauv daim ntawv thov qhov twg corrosion kuj yog ib qho tsim nyog.
Lub zog siab thiab tsim tau zoo heev HR steel ntawv thiab phaj kuj yooj yim rau kev xyaum, daim ntawv thiab vuam.
Kub dov steel ntawv yog muaj raws li tus qauv kub dov los yog kub dov P & O.
Feem ntau cov kub dov steel specifications suav nrog HR A36, HR A1011, thiab HR A1018
Hlau Phaj
Qhov sib txawv ntawm cov ntawv hlau thiab steel phaj nyob nrog lawv qhov ntsuas lossis thickness. Phaj hlau thickness muaj xws li steel sheet hlau uas yog 5 hli los yog tuab dua. Hlau phaj feem ntau yog siv rau kev tsim kho lossis kev tsim qauv vim nws qhov kev saib xyuas tsis zoo. Cov txiaj ntsig ntawm steel phaj muaj xws li:
- Corrosion resistant
- Durability
- Lub zog - rau - qhov hnyav piv
A240 904L Chemical Composition, max%
|
C |
Mn |
P |
S |
Si |
Cr |
|
0.02 |
2.00 |
0.045 |
0.035 |
1.00 |
19.0-23.0 |
|
Ni |
Mo |
N |
Cu |
Lwm tus |
|
|
23.0-28.0 |
4.0-5.0 |
0.10 |
1.0-2.0 |
||
A240 904L Mechanical Properties
|
Qib |
Tensile Str., min, MPa |
0.2% Yield Str., min, MPa |
EL hauv 50mm, min% |
max HRB |
|
|
A240 TP 904 L |
490 |
220 |
35 |
90 |
SS 904L Sheets & Phaj sib npaug qib
|
STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
KS |
BS |
AFNOR |
EN |
|
wb 904l |
1.4539 |
N08904 |
SWB 904L |
TIAB SA 317J5L |
904S13 |
Z2 NCUA 25-20 |
X1NiCrMoCu25-20-5 |
ASTM A{0}}L phaj
